American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781

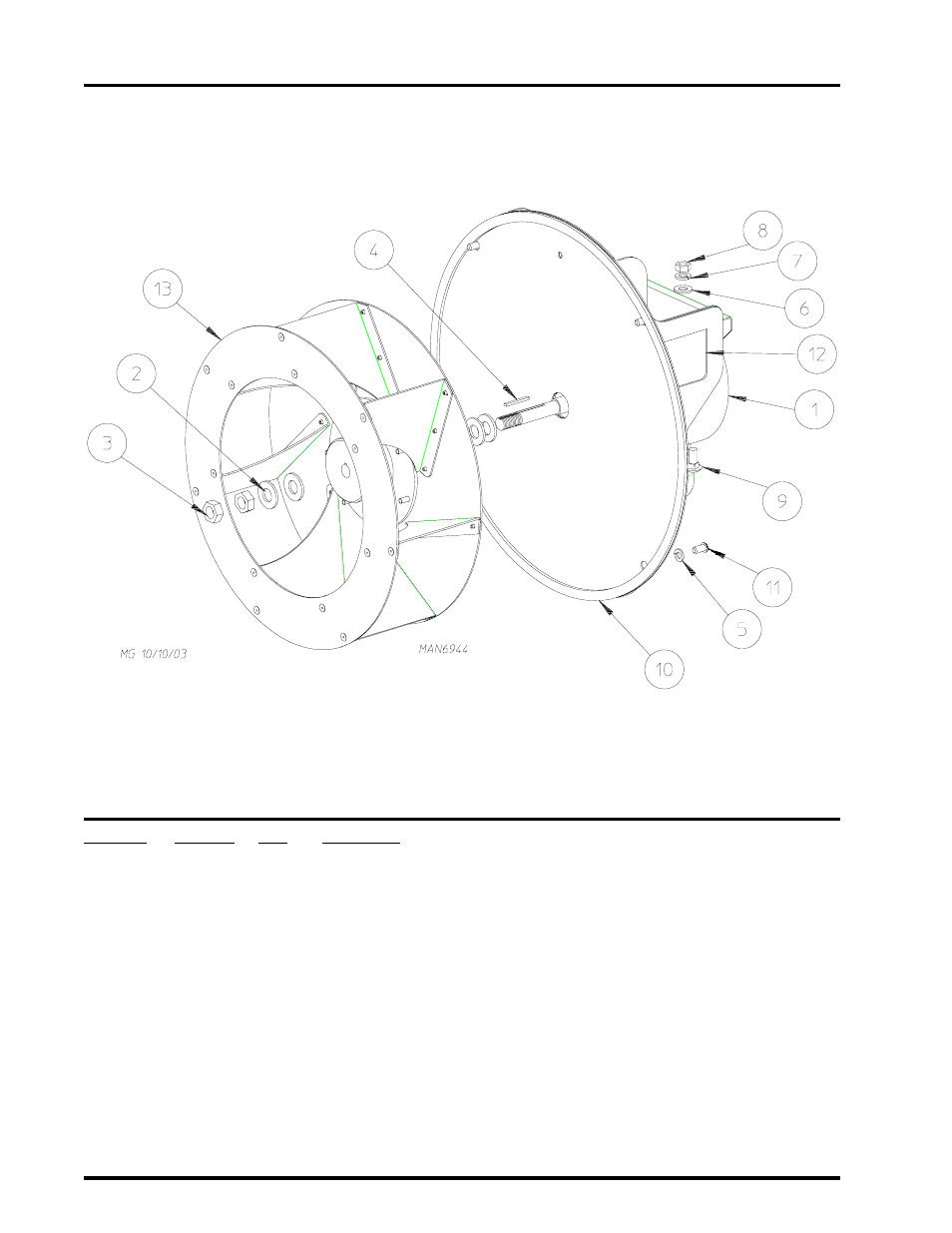

Blower Motor Assembly
Illus. No.
Part No.
Qty.
Description
1
181038
1
1/4 hp 115/230v/60 Hz Blower Motor
2
153050
4
1/2 x 1-1/16 Flat Washer
3
152006
2
1/2-20 Left Hand Jam Nut
4
100731
1
1/8 x 3/32 x 1-1/8 Key
5
153007
4
1/4 Split Lock Washer
6
153001
4
5/16 Flat Washer
7
153002
4
5/16 Split Lock Washer
8
152004
4
5/16-18 Hex Nut
9
154279
4
5/16-18 x 3/4 Carriage Bolt
10
117604
1
1/8 x 3/8 Neoprene Sponge Tape (sold by the foot)
11
150111
4
1/4-20 x 1/2 Phillips Round Head Machine Screw
12
884039
1
Blower Motor Mount ONLY
13
802029
1
12-1/2 Riveted Impellor with 1/2 Bore
884040
1
Blower Motor and Mount Assembly Complete
(includes illus. nos. 1 through 13)
