Exhaust duct assembly – ADC AD-360X2 User Manual
Page 35
33
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
154200
8
5/32 Pop Rivet
2
860098
2
Blower Motor Assembly with Riveted Impellor
3
354171
2
Harness Stiffener
4
153018
8
1/4 Flat Washer
5
150510
8
1/4-20 x 3/4 Hex Head Machine Bolt
6
153007
8
1/4 Split Lock Washer
7
354078
2
Exhaust Access Plate
8
150309
12
#10-16 x 1/2 Hex Head TEK Screw
9
154210
43
5/32 x 3/16 Pop Rivet
10
854015
2
Air Plenum Assembly
11
854051
1
Lower Blower Housing
12
854049
1
Upper Blower Housing
13
151001
1
#8-32 Pal Nut
14
150103
4
#8-32 x 3/4 Phillips Round Head Machine Screw

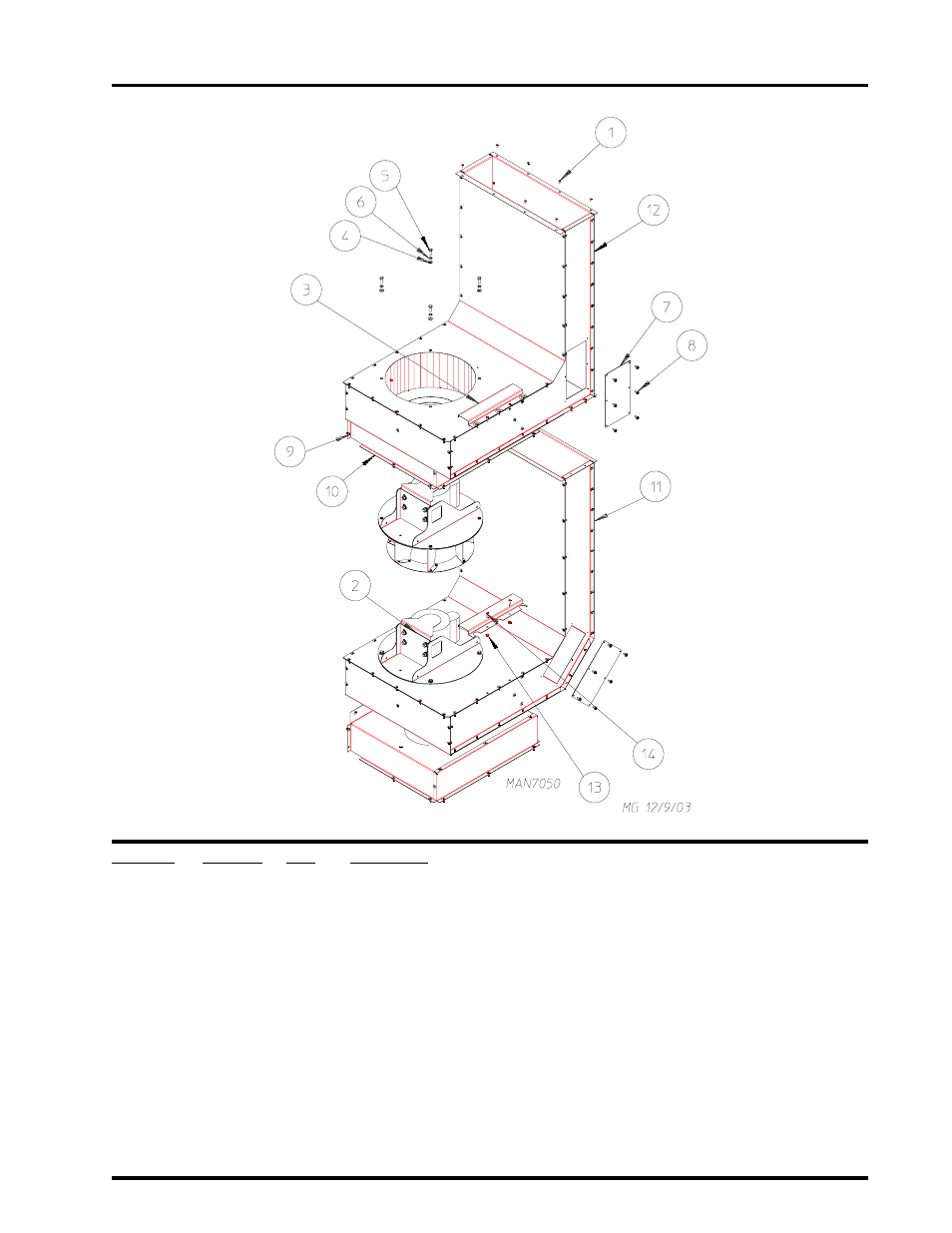

Exhaust Duct Assembly
