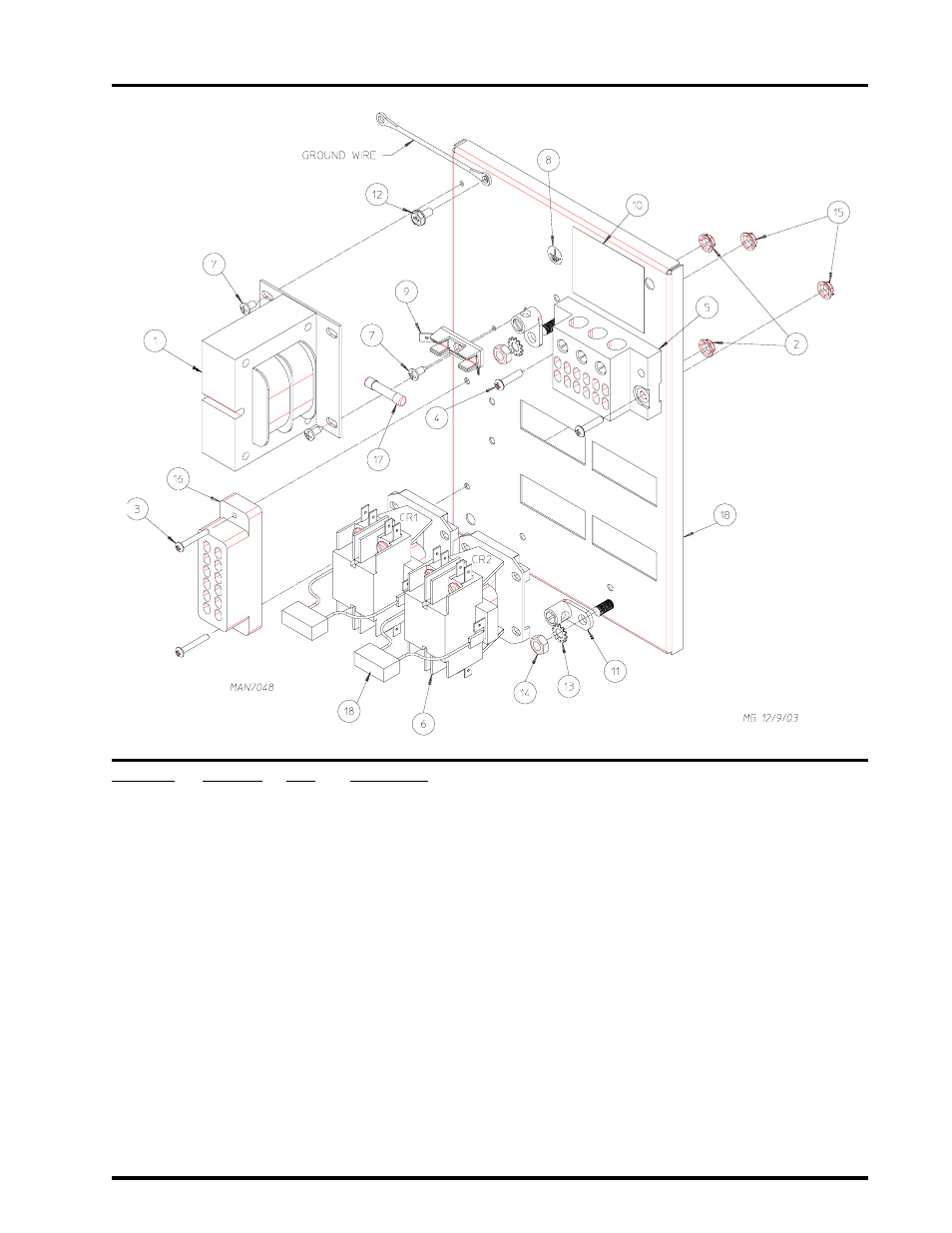

Rear Electrical Panel (Top and Bottom)
Illus. No.
Part No.
Qty.
Description
1
860063
1
Transformer Assembly
2
151000
2
#6-32 Pal Nut
3
150002
2
#6-32 x 1 Phillips Round Head Screw
4
150103
2
#8-32 x 3/4 Phillips Round Head Machine Screw
5
120714
1
Quick Connect Power Block
6
132475
2
Double Pole 24v Contactor
7
150301
3
#8-18 x 7/16 Phillips Pan Head TEK Screw
8
112075
1
Ground Label
9
136008
1
Fuse Holder
10
114103
1
Electrical Service Label
11
121010
1
L-70 14-4 Terminal Lug
12
120910
1
Green Ground Screw
13
153021
2
1/4 External/Internal Shakeproof Washer
14
152002
2
1/4-20 Hex Nut
15
151001
2
#8-32 Pal Nut
16
120712
1
12 Position Block 250v 25A
17
136049
1
3/4-Amp (Slo-Blo) Fuse
18
824828
2
R.C. Network Assembly
