10
American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

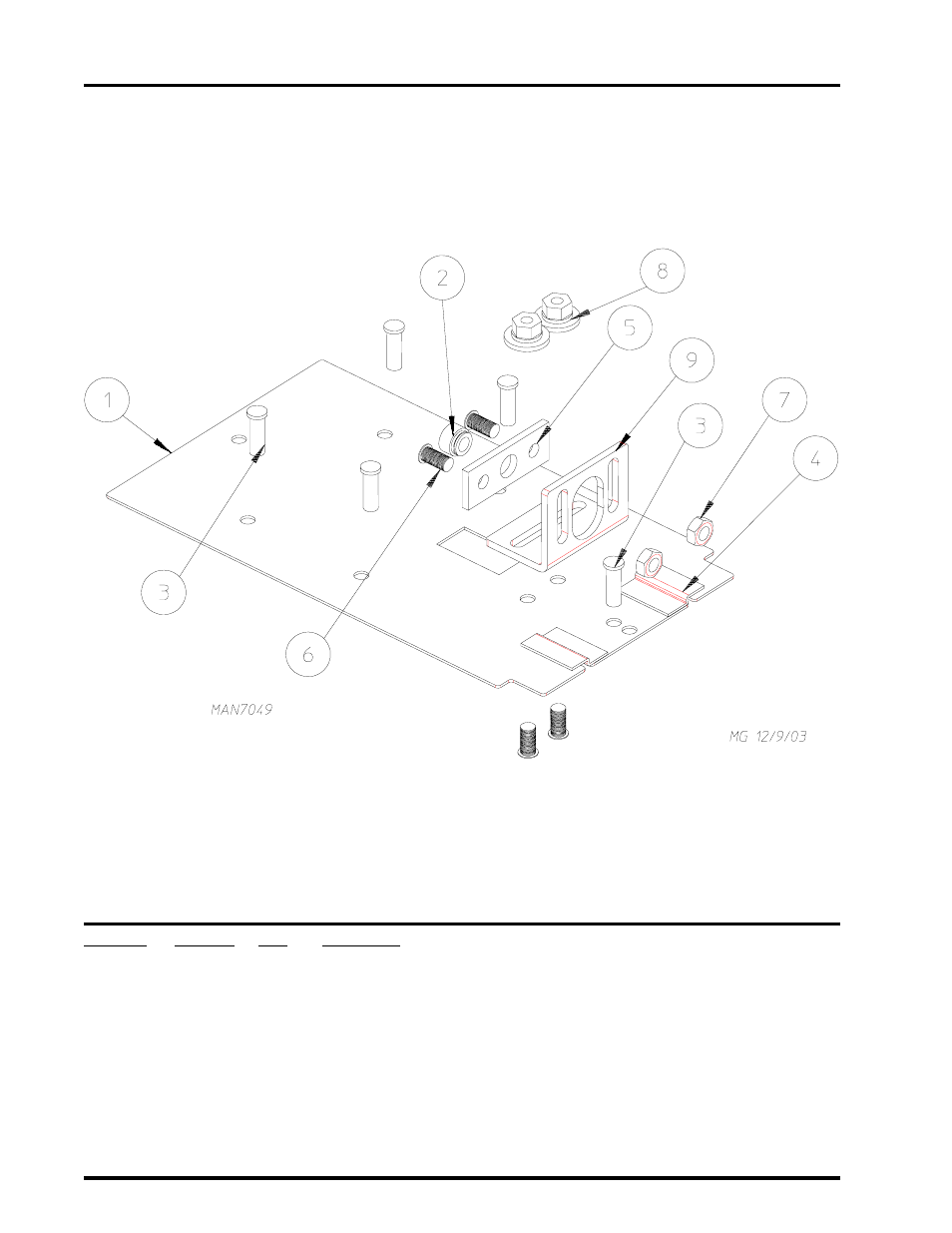

Easy Debit Card Coin Chute Assembly
Illus. No. Part No. Qty. Description
1 354114 1 Coin Chute Plate
2 153599 1 5/16-18 Clinch Nut
3 153557 5 1/4" x 3/4" Clinch Stud
4 354176 2 Control Panel Slide Clip
5 354181 1 Control Panel Lock Plate
6 153526 4 1/4" x 1/2" Clinch Stud
7 152002 2 1/4-20 Hex Nut
8 152014 2 1/4-20 Free Spin Wash Nut
9 354046 1 Easy Card Lock Bracket
884124 1 Easy Debit Card Coin Chute Assembly
