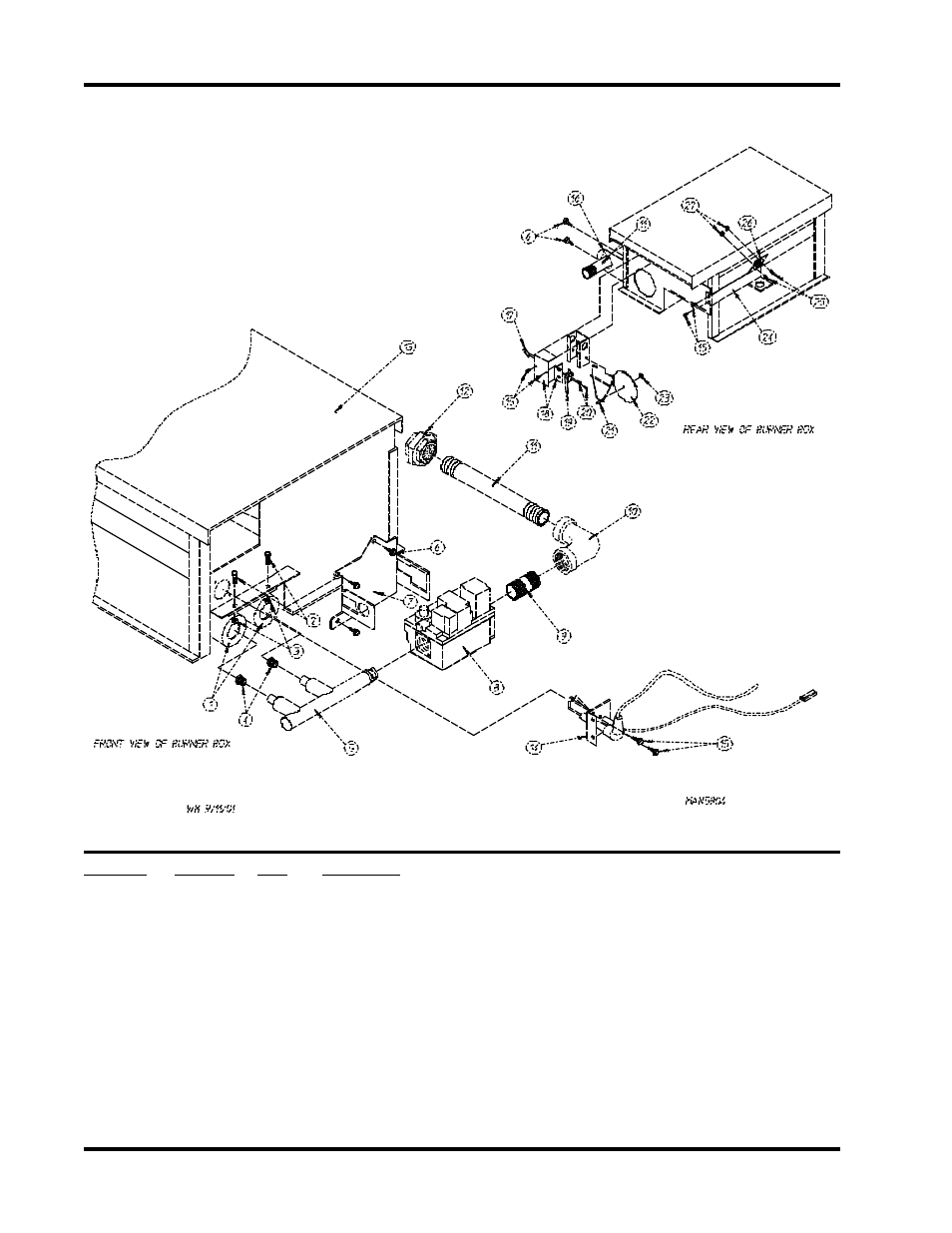

ADG-15 Direct Spark Ignition (DSI) Burner Assembly
For Models Mfd. as of May 20, 2000
Illus. No. Part No. Qty. Description
1 141104 2 Small Burner Tube
2 150108 2 #8-32 x 1/2” Pan Head Machine Screw
3 151001 2 #8-32 Pal Nut
4 140811 2 #41 Natural Gas Burner Orifice for Non-Heat Reclaimer Models ONLY
140848 2 #54 Liquid Propane (L.P.) Burner Orifice for Non-Heat Reclaimer
Models ONLY
140809 2 #43 Natural Gas Burner Orifice for Heat Reclaimer Models ONLY
140848 2 #54 Liquid Propane (L.P.) Burner Orifice for Heat Reclaimer
Models ONLY
5 141230 1 1/2” 2-Port Manifold
6 150309 5 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 318716 1 Gas Valve Bracket
