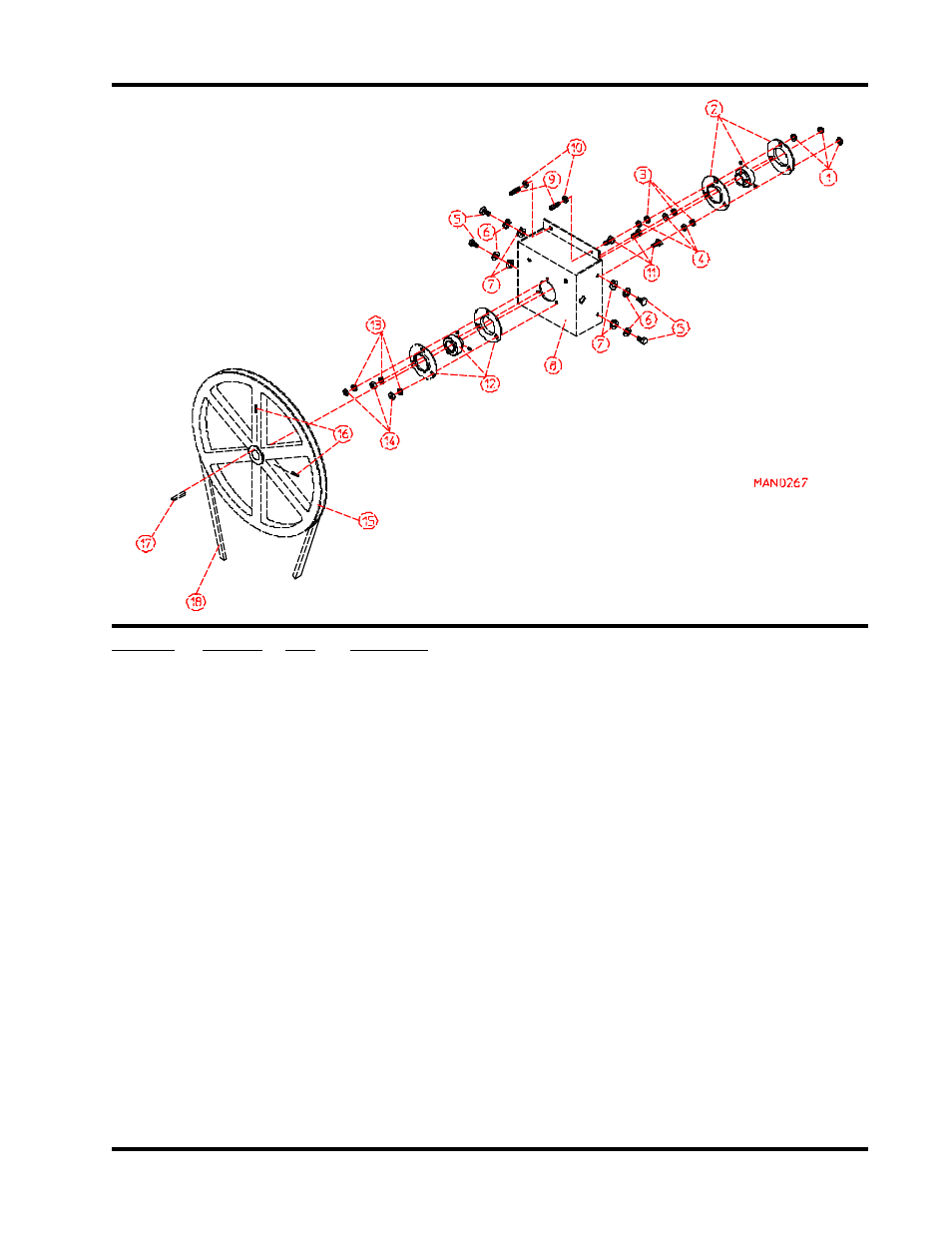

AD-15/AD-25 Basket (Tumbler) Bearing Assembly
Illus. No.
Part No.
Qty.
Description
1
153002
3
5/16” Lock Washer
2
880213
1
1-1/4” Flange Bearing ONLY
3
153002
3
5/16” Lock Washer
4
152004
3
5/16-18 Hex Nut
5
150501
4
5/16-18 x 3/4” Hex Head Machine Bolt
6
153002
4
5/16” Lock Washer
7
153004
4
3/8” Flat Washer
8
801100
1
1” Bearing Box Assembly Complete
(includes illus. nos. 8 through 14)
801105
1
Bearing Box ONLY
9
150610
2
5/16-18 x 1-1/2” Allen Setscrew
10
152004
2
5/16-18 Hex Nut
11
150501
3
5/16-18 x 3/4” Hex Head Machine Bolt
12
880201
1
1” Flange Bearing ONLY
13
153002
3
5/16” Lock Washer
14
152004
3
5/16-18 Hex Nut
15
101100
1
18” Pulley ONLY
16
154301
2
5/16-18 x 5/16” Setscrew
17
100713
1
1/4” x 1/4” x 7/8” Key
18
100108
1
5L-680 V-Belt (basket [tumbler] to idler)
For AD-15
100107
1
5L-670 V-Belt (basket [tumbler] to idler)
For AD-25
