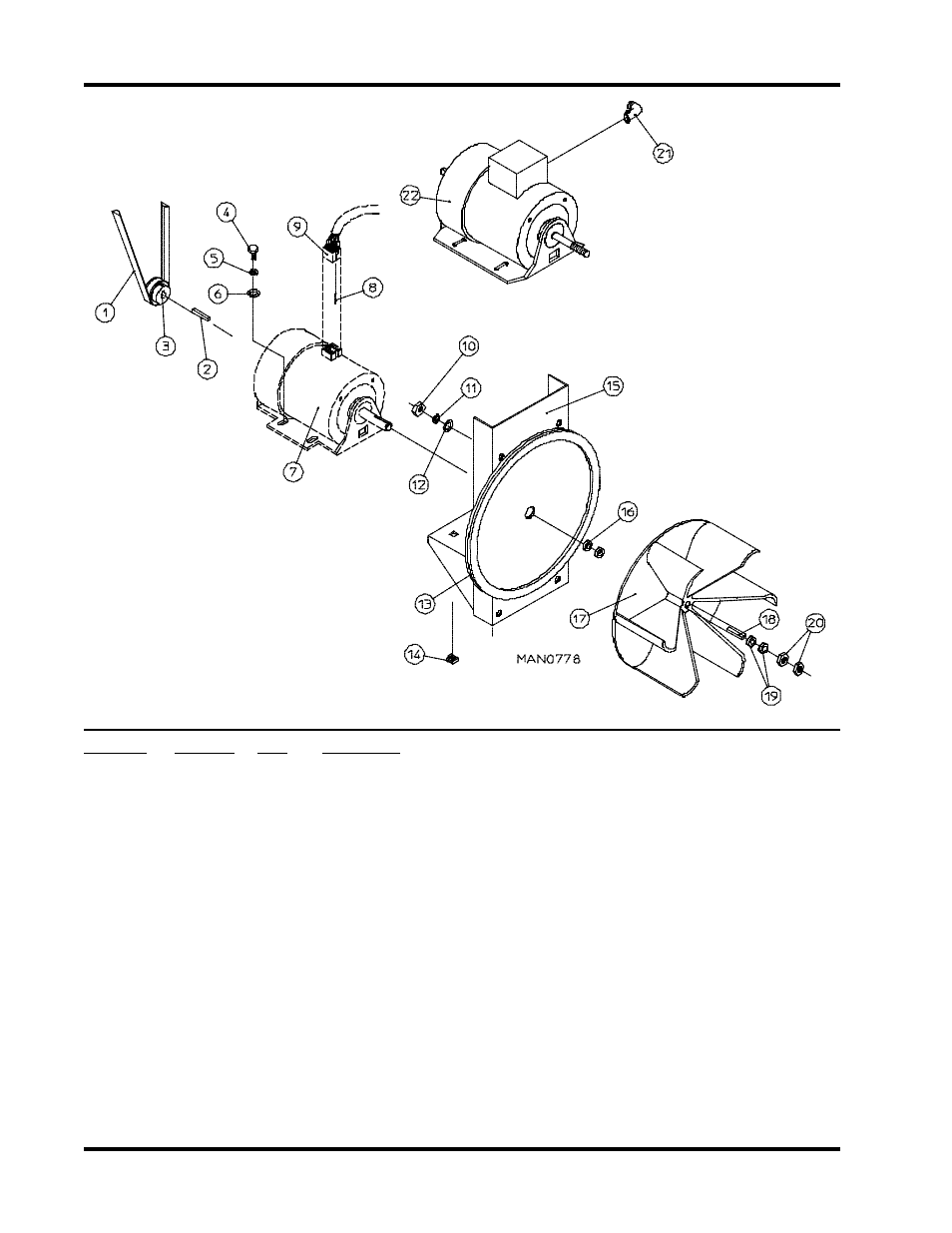

AD-15 Motor Mount Assembly
Illus. No.
Part No.
Qty.
Description
1
100110
1
4L-500 V-Belt (to idler assembly)
2
100701
1
3/16” x 3/16” x 1” Key
(for use on 3ø models Only)
3
101104
1
1/2” x 2” Motor Pulley
(for use on 1ø - 60 Hz motors Only)
101131
1
1/2” x 2-1/4” Motor Pulley
(for use on 1ø - 50 Hz motors Only)
101132
1
5/8” x 2” Motor Pulley
(for use on 3ø - 60 Hz motors Only)
101133
1
5/8” x 2-1/4” Motor Pulley
(for use on 3ø - 50 Hz motors Only)
4
150501
4
5/16-18 x 3/4” Hex Head Machine Bolt
5
153002
4
5/16” Lock Washer
6
153001
4
5/16” Flat Washer
7
181049
1
1/2 HP 100-230v 1ø 50/60 Hz Plug-Type Motor
(for models mfd. as of February 4, 2002)
883572
1
1/2 HP 240v 1ø 50 Hz Plug-Type Motor
(for models mfd. prior to February 4, 2002)
