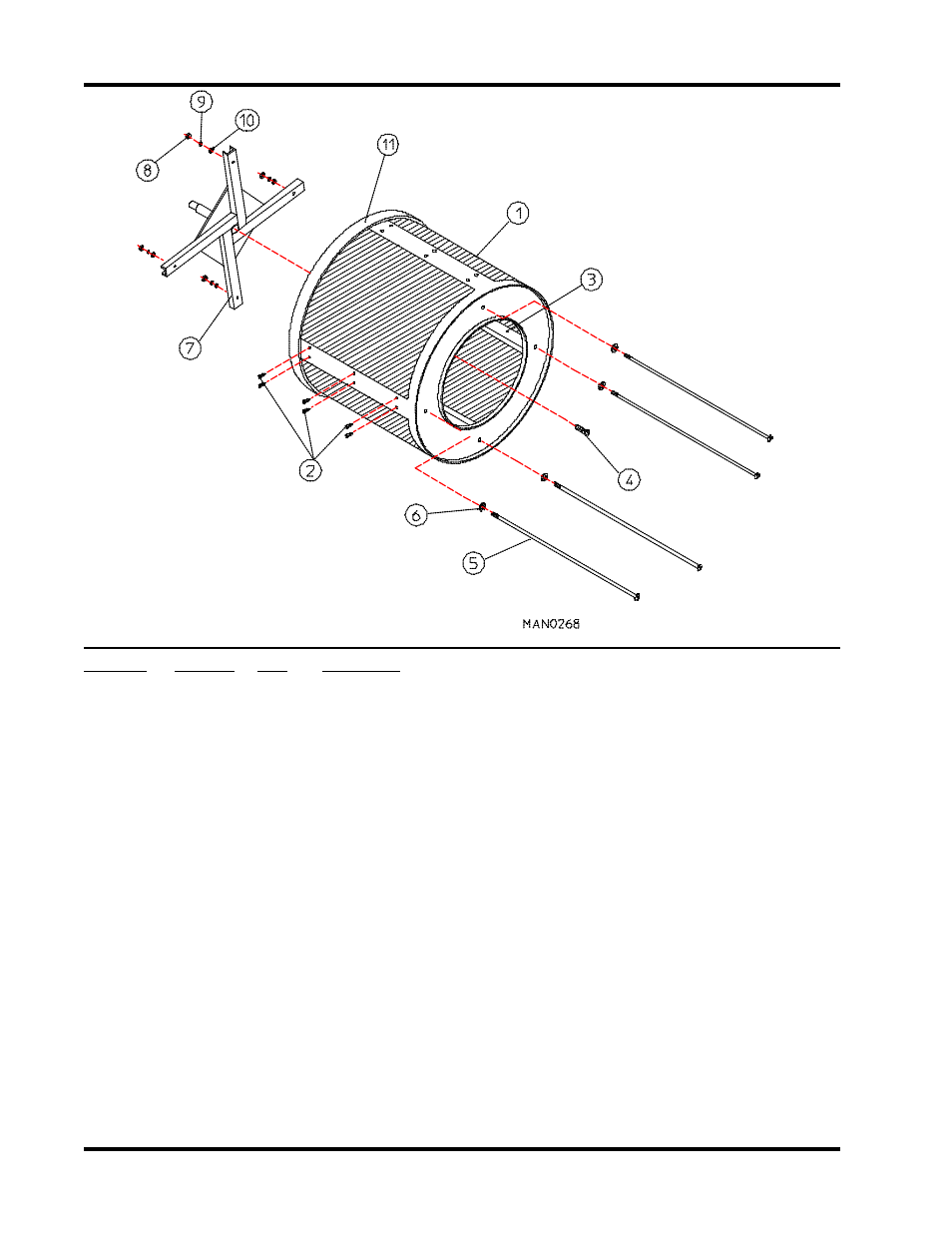

AD-25 Basket (Tumbler)/Support Assembly
Illus. No.
Part No.
Qty.
Description
1*
800702
1
AD-25 Galvanized Basket (tumbler) ONLY (without felt collar)
800731
1
AD-25 Stainless Steel Basket (tumbler) ONLY (without felt collar)
817085
1
AD-25 Galvanized Basket (tumbler) and Support Assembly
(includes illus. nos. 1 through 10)
800752
1
AD-25 Stainless Steel Basket (tumbler) and Support Assembly
(includes illus. nos. 1 through 10)
2
150313
24
#10-16 x 1/2” TORX + BTN, Type 1
3
301305
4
AD-25 Galvanized Basket (tumbler) Rib ONLY
301420
4
AD-25 Stainless Steel Basket (tumbler) Rib ONLY
4**
150518
1
5/16-18 x 3/8” Socket Button Head Screw
5
882049
4
5/16” to 3/8” Tie Rod Kit
(includes illus. nos. 5, 6, and 8 through 10)
6
153004
4
5/16” to 3/8” Flat Washer
7
800611
1
AD-25 Basket (tumbler) Support ONLY
8
152005
4
3/8-18 Hex Nut
9
153005
4
3/8” Lock Washer
10
153004
4
3/8” Flat Washer
11
116002
1
Felt Collar ONLY
--
401010
1
#847 Adhesive for Felt Collar (5.0 oz. tube)
*
Felt collar is not included and must be ordered separately.
** For models mfd. prior to January 21, 2002 ONLY.
