ADC AD-25 User Manual
Page 11
9
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
--------
1
24 VAC Control Voltage Transformer
(refer to AD-15/AD-25 Transformer Usage Listing for Gas/Steam
(refer to AD-15/AD-25 Transformer Usage Listing for Electric
Dryers on page 63)
2
150300
2
#10-16 x 1/2” Hex Washer TEK Screw
3
120715
1
30-Position Terminal Block
4
150002
2
#6-32 x 1” Phillips Round Head Screw
5
151000
2
#6-32 Pal Nut
6
136057
*
1/2-Amp (Slo-Blo) Fuse
7
150301
*
#8-18 x 7/16” Self Drilling Screw
8
136008
*
Fuse Block/Strip ONLY
9
122641
1
15-Pin Microprocessor Connector
10
122706
*
Sockets ONLY
11
131931
1
Steam Valve Relay - 24 VAC
(for mechanical steam damper models Only)
12
150309
2
#10-16 x 1/2” Hex Head TEK Crimptite Screw
13
137035
1
Motor Capacitor
(for mechanical steam damper models Only)
14
323583
1
Capacitor Bracket
(for mechanical steam damper models Only)
15
150300
2
#10-16 x 1/2” Hex Washer TEK Screw
16
132002
1
Transformer
(for mechanical steam damper models 208 volts and higher)
17
150300
2
#10-16 x 1/2” Hex Washer TEK Screw
*
As required.

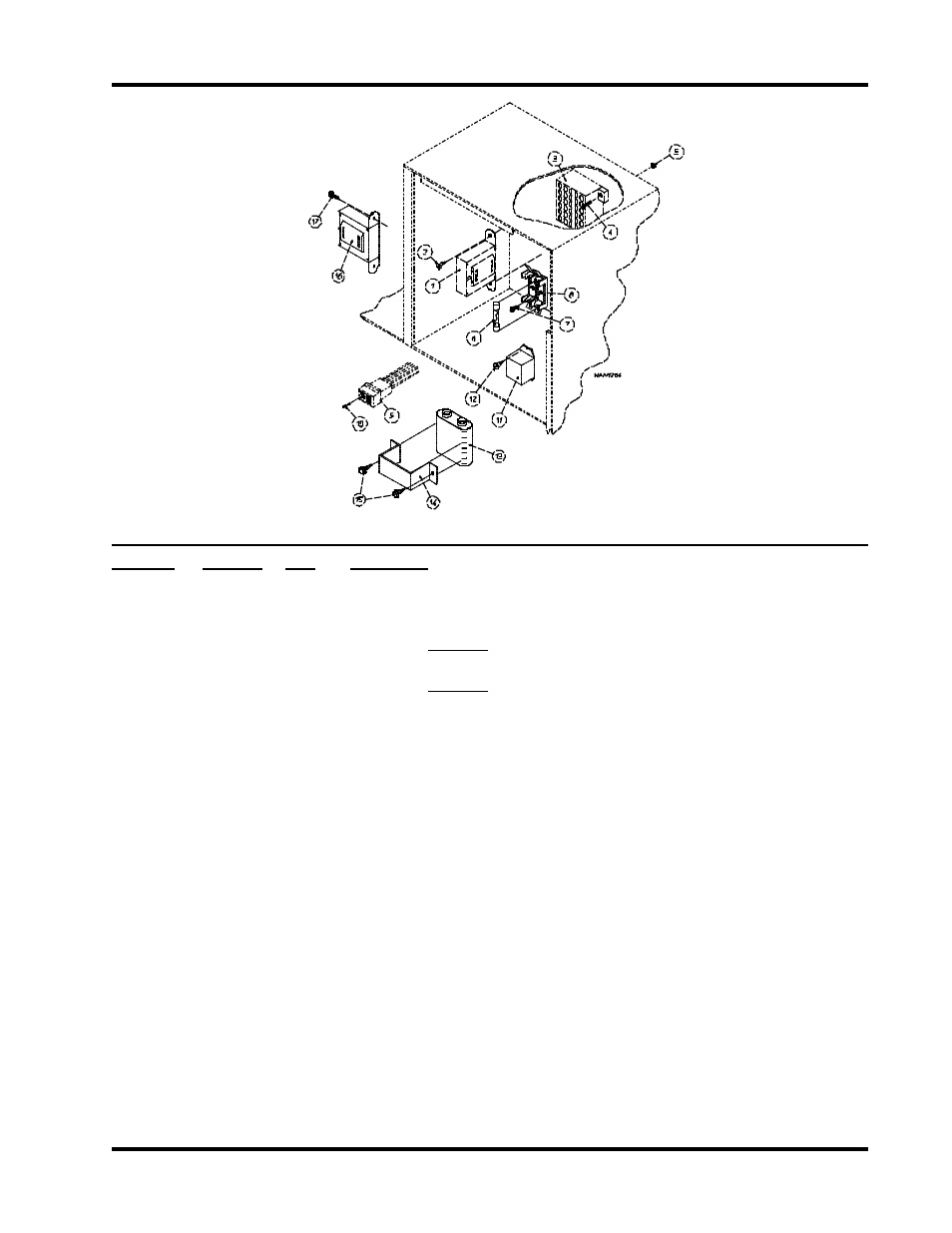

Phase 5 Coin and OPL Microprocessor Control Box Assembly
