1.8 Connectors

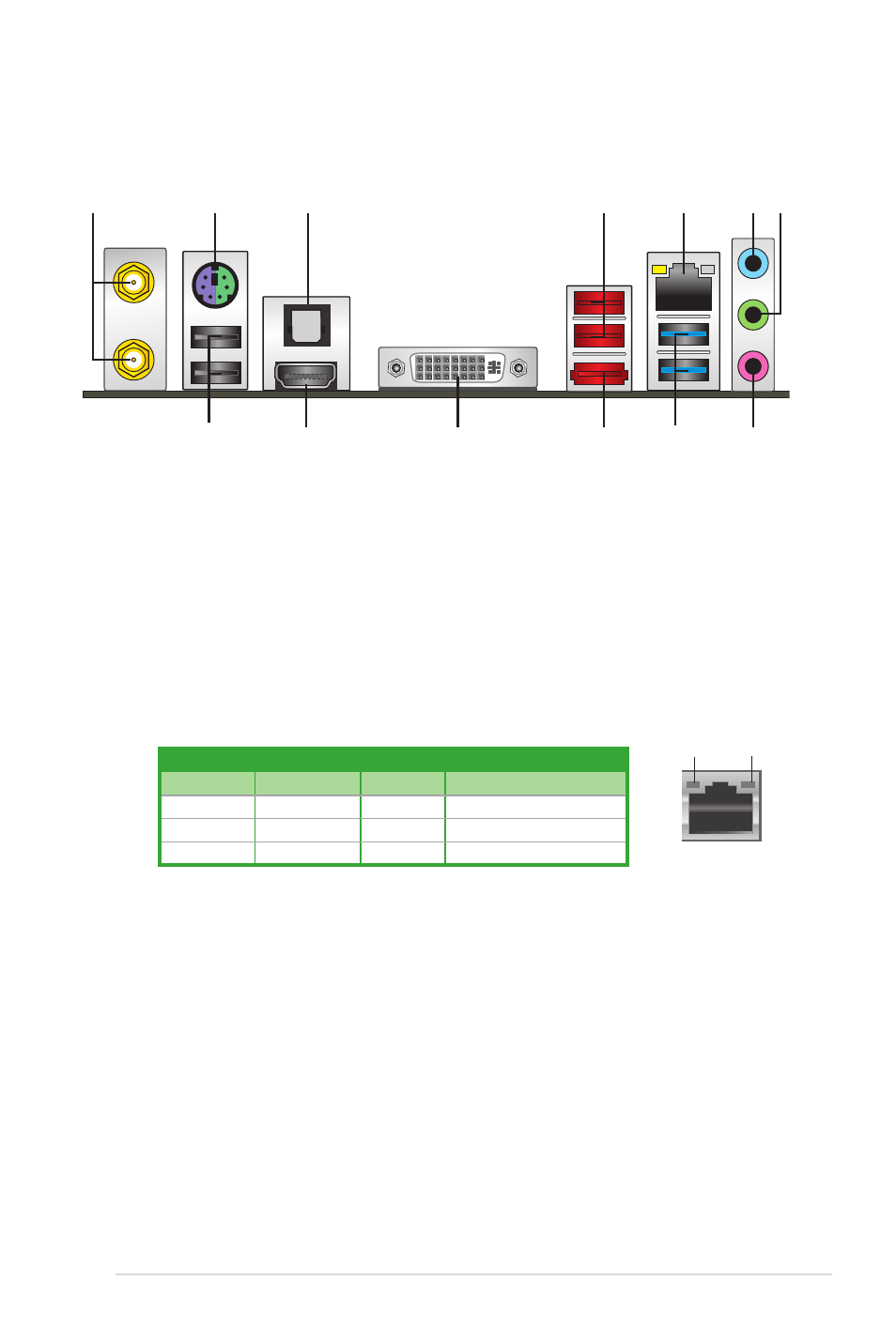

1.8.1 Rear panel ports
1. Wi-Fi antenna ports. These ports connect to the Wi-Fi antennas.
2. PS/2 Keyboard/Mouse combo port. This port is for a PS/2 mouse or PS/2 keyboard.
3. Optical S/PDIF Out port. This port connects an external audio output device via an
optical S/PDIF cable.
4. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are for USB
2.0/1.1 devices.
5. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
Activity/Link LED Speed LED
Status
Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection LAN port
SPEED
LED
ACT/LINK
LED
6. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
7. Line Out port (lime). This port connects to a headphone or a speaker. In 4-channel,
6-channel, and 8-channel configurations, the function of this port becomes Front
Speaker Out.
8. Microphone port (pink). This port connects a microphone.
3 5
9 11
6 7
8 12
2
13
4 1
10
ASUS E2KM1I-DELUXE 1-15
