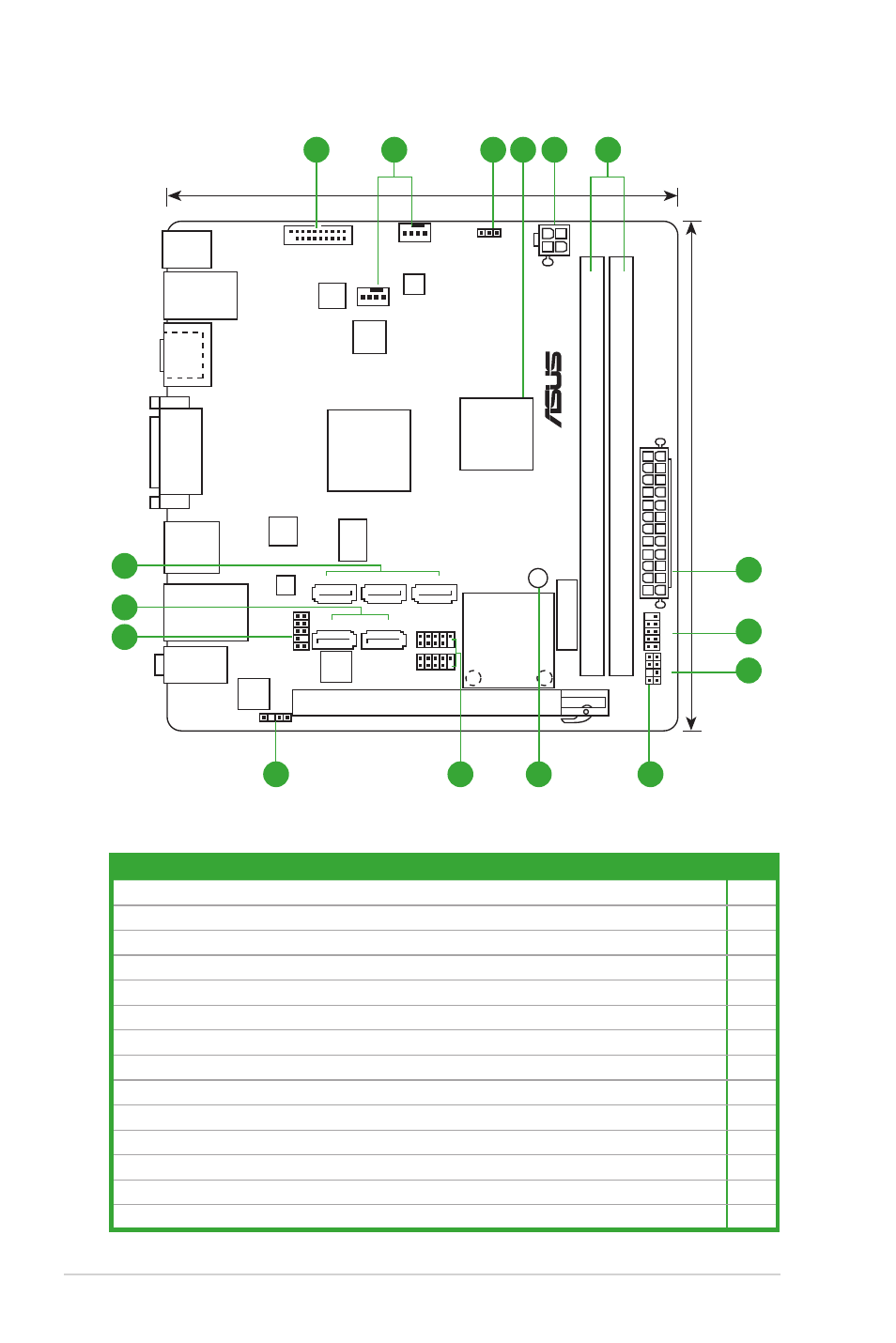

1.3.3 Motherboard layout
1.3.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. USB 3.0 connector (20-1 pin USB3_34) 1-21
2. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN) 1-17
3. Clear RTC RAM (3-pin CLRTC) 1-14
4. Integrated AMD ® Dual-Core processor E2-2000 1-7
5. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-18
6. DDR3 DIMM slots 1-7
7. System panel connector (10-1 pin F_PANEL) 1-20
8. Speaker connector (4-pin SPEAKER) 1-20
9. Chassis intrusion connector (4-1 pin CHASSIS) 1-17
10. Standby power LED (SB_PWR) 1-4
11. USB 2.0 connectors (10-1 pin USB56, USB78) 1-21
12. Digital audio connector (4-1 pin SPDIF_OUT) 1-22
13. Front panel audio connector (10-1 pin AAFP) 1-19
14. SATA 6.0Gb/s connectors (7-pin SATA6G_1~5) 1-19
E2KM1I-DELUXE
PCIEX16
ASM
1042
EPU
F_PANEL
AAFP
EATXPWR
CHA_FAN
CPU_FAN
BARRERY
ALC
898
64Mb
BIOS
SB_PWR
17cm(6.7in)
17cm(6.7in)
SATA6G_2 SATA6G_4
SATA6G_1 SATA6G_3 SATA6G_5
AUDIO
HDMI
SPDIFO
KBMS_USB34
DVI
ICS483B
ANTENNA
_PORT
USB3_E34
SPDIF_OUT
CHASSIS SPEAKER
DDR3 DIMM2 (64bit, 240-pin module) DDR3 DIMM1 (64bit, 240-pin module)
CLRTC
ESATA
_USB12
LAN_USB3_E12
ATX12V
RTL
8111F
ASM
1042
Super
I/O
USB56
WLAN
USB78
6 1 2 3 5
5
7
8
12 9 10
13
11
14
14
AMD ® FCH A50M
(Hudson M1)
AMD ® Dual-Core
Processor E2-2000
with AMD Radeon
TM
HD 7340
Discrete-Class
Graphics
4
Chapter 1: Product introduction 1-6
