1.5

System memory

1.5.1

Overview

This motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules

(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched

differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for

better performance with less power consumption.

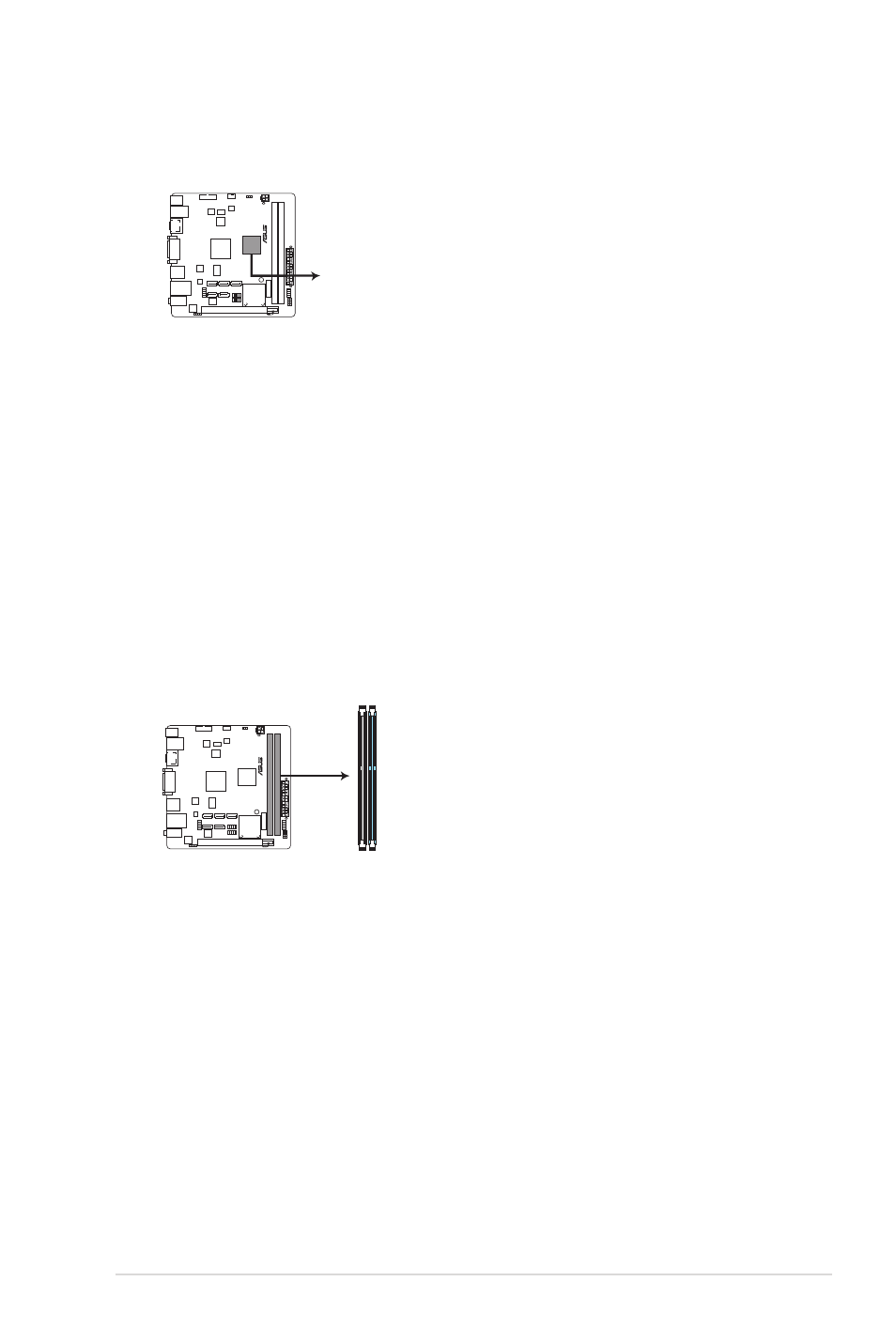

The figure illustrates the location of the DDR3 DIMM sockets:

1.4

Central Processing Unit (CPU)

The motherboard comes with an integrated AMD

Dual-Core Processor E2-2000 with AMD

Radeon™ HD 7340 Discrete-Class graphics and a specially designed CPU heatsink.

E2KM1I-DELUXE

E2KM1I-DELUXE Integrated AMD

Dual-Core Processor E2-2000

Integrated AMD

Dual-Core Processor E2-2000 with

AMD

Radeon

HD 7340 Discrete-Class graphics

E2KM1I

-DELUXE

E2KM1I-DELUXE 240-pin DDR3 DIMM sockets

DIMM1

DIMM2

ASUS E2KM1I-DELUXE

1-7
