Advantech PCM-3362 User Manual
Page 70
PCM-3362 User Manual
62

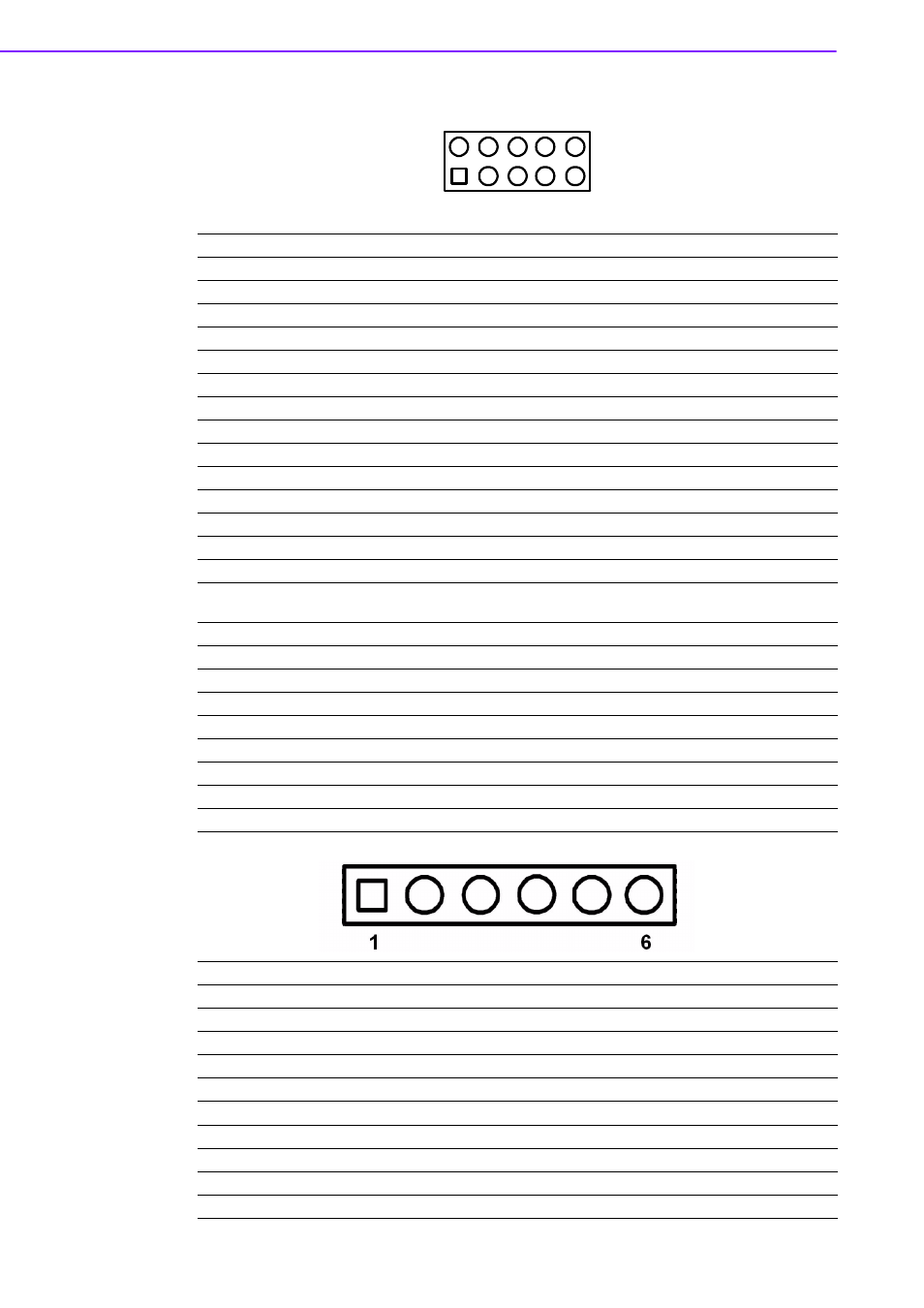

CN18
LAN Connector
Part Number
1653003719
Footprint
HD_5x2P_79_RA_21N22050
Description
PIN HEADER 5*2P 2.00mm 90D(M) SMD 21N22050-10J10
Pin
Pin Name
Signal Type
Signal Level
A1
GNDT
GND
A2
GNDT
GND
A3
LAN1_M3+
I/O
Analog
A4
LAN1_M3-
I/O
Analog
A5
LAN1_M2+
I/O
Analog
A6
LAN1_M2+
I/O
Analog
A7
LAN1_M1+
I/O
Analog
A8
LAN1_M1+
I/O
Analog
A9
LAN1_M0+
I/O
Analog
A10
LAN1_M0+
I/O
Analog
CN19
LAN LED Connector
Part Number
1653004101
Footprint
HD_4x1P_79_D
Description
PIN HEADER 4*1P 180D(M) 2.0mm DIP WO/Pb
Pin
Pin Name
Signal Type
Signal Level
1
+V3.3_LAN1
PWR
+3.3V
2
LAN1_ACT#
OUT
3 LAN1_1000#
OUT
4 LAN1_100#
OUT
CN20
PS2 Keyboard/Mouse Connector
Part Number
1655306020
Footprint
WHL6V-2M
Description
WAFER BOX 2.0mm 6P 180D(M) W/LOCK
Pin
Pin Name
Signal Type
Signal Level
1
KB_z_CLK#
I/O
+5 V
2
KB_z_DAT#
I/O
+5 V
3
MS_z_CLK#
I/O
+5 V
4
GND
5
+V5_KB
PWR
+5 V
6
MS_z_DAT#
I/O
+5 V
3
6
4
5
2
8
9
7
10
1
