59 PCM-3362 User Manual
Appendix A
P
in Assignments

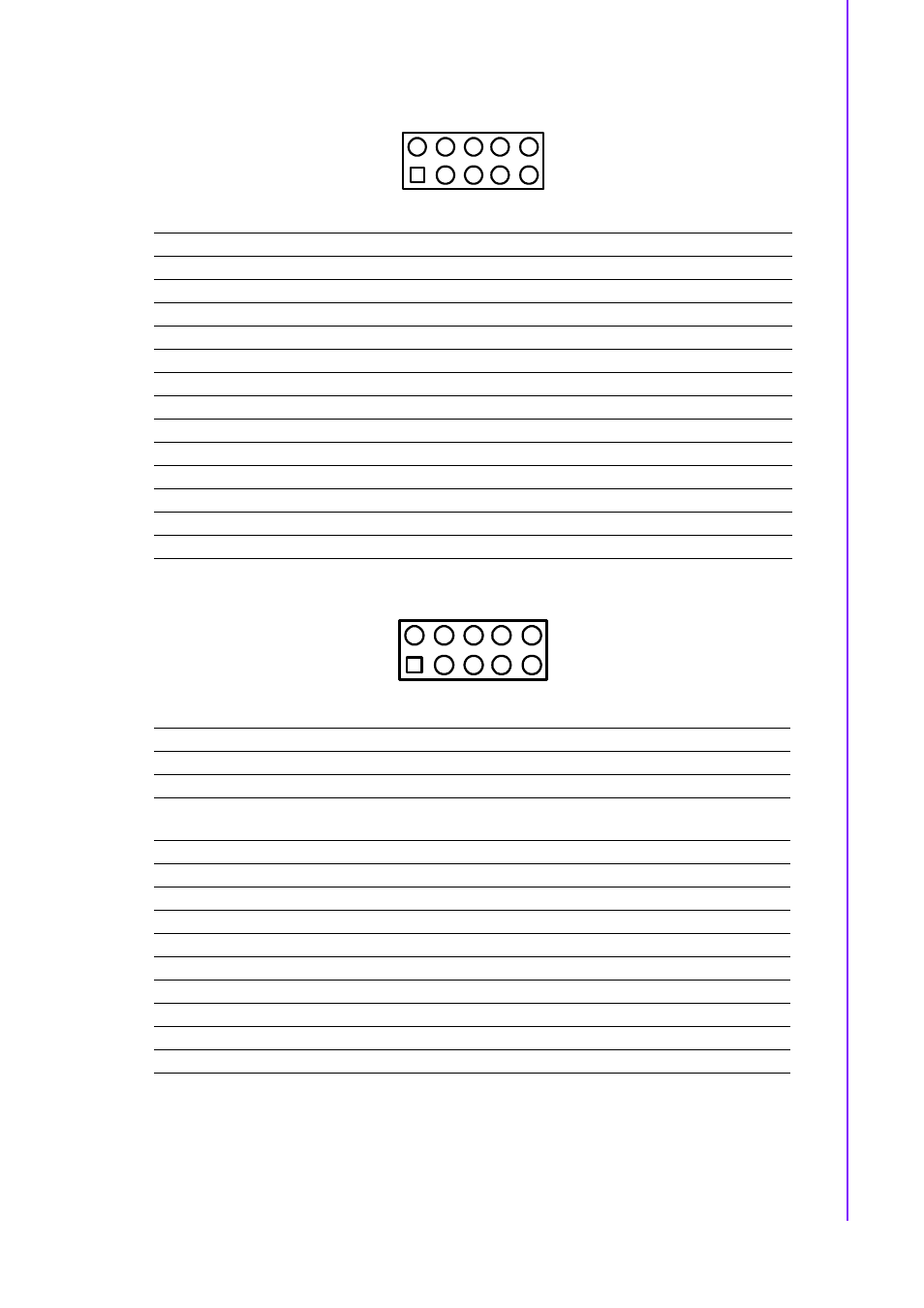

CN9 USB0/1
Part Number 1653003718
Footprint PH5x2P-SR2.00
Description PIN HEADER 5*2P 2.00mm 90D(M) NO.10 SMD
Pin Pin Name Signal Type Signal Level
1 +V5_USB0 PWR +5 V
2 +V5_USB0 PWR +5 V
3 USB0_z_P- I/O
4 USB1_z_P- I/O
5 USB0_z_P+ I/O
6 USB1_z_P+ I/O
7 GND
8 GND
9 GND
CN10 USB2/3
Part Number 1653003718
Footprint PH5x2P-SR2.00
Description PIN HEADER 5*2P 2.00mm
90D(M) NO.10 SMD
Pin Pin Name Signal Type Signal Level
1 +V5_USB0 PWR +5 V
2 +V5_USB0 PWR +5 V
3 USB2_z_P- I/O
4 USB3_z_P- I/O
5 USB2_z_P+ I/O
6 USB3_z_P+ I/O
7 GND
8 GND
9 GND
3
6 4
5
2 8
9 7
10
1
3
6 4
5
2 8
9 7
10
1
