PCM-3362 User Manual 4
– Power on - Boot: Measure the maximum current value of between system
power on and boot-up to O.S.
– Max. load: Measure the maximum current value which system under maxi-
mum load (CPU: Top speed, RAM &Graphic: Full loading)
– Idle mode: Measure the current value when system in windows mode and
without running any program
„ Operating temperature: 0 ~ 60°C (32 ~ 140°F) (operation humidity: 40°C @
85% RH Non-Condensing)
„ Weight: 0.85 kg (reference weight of total package)
1.4 Board layout: dimensions

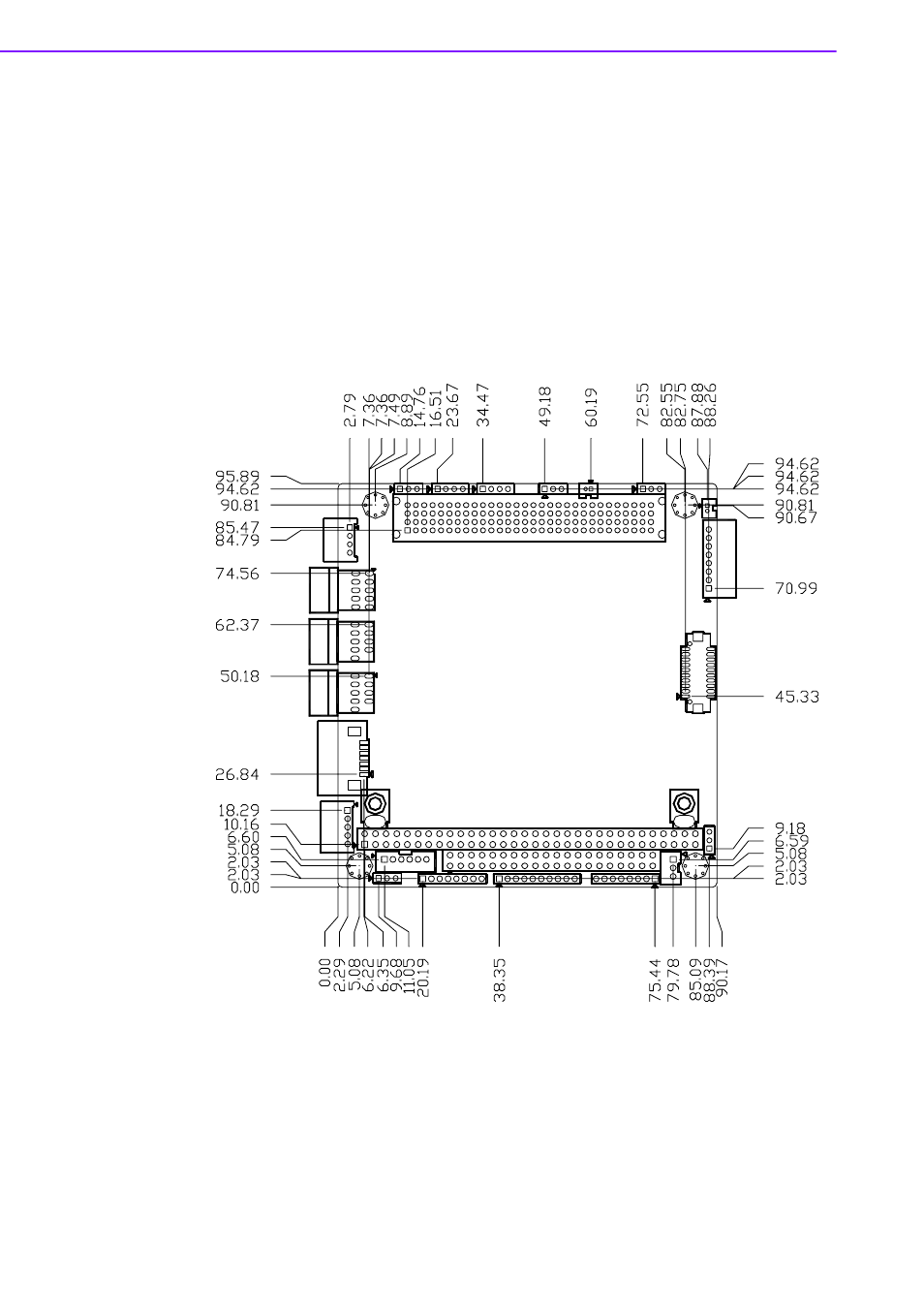

Figure 1.1 Board layout: Dimensions (Component Side)
