PCM-3362 User Manual

3.3.10

Smbios Configuration

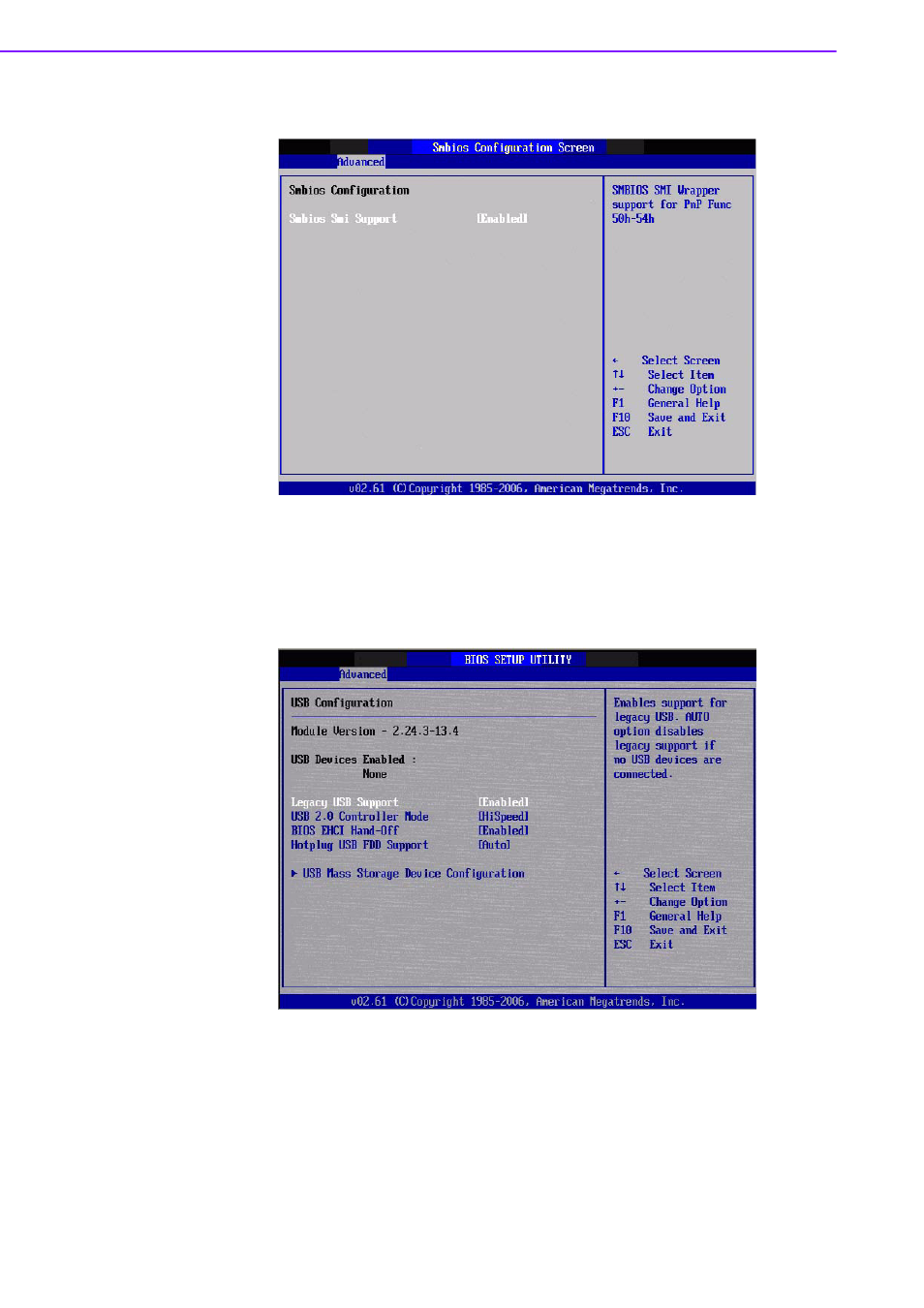

Figure 3.16 South Bridge ACPI Configuration

Smbios Smi Support
SMBIOS SMI wrapper support for PnP function 50h-54h.

3.3.11

USB Configuration

Figure 3.17 South Bridge ACPI Configuration

Legacy USB Support
Enables support for legacy USB. Auto option disables legacy support if no USB
devices are connected.
USB 2.0 Controller Mode
This item allows you to select HiSpeed(480Mbps) or FullSpeed (12Mpbs).
