PCM-3362 User Manual

A.1

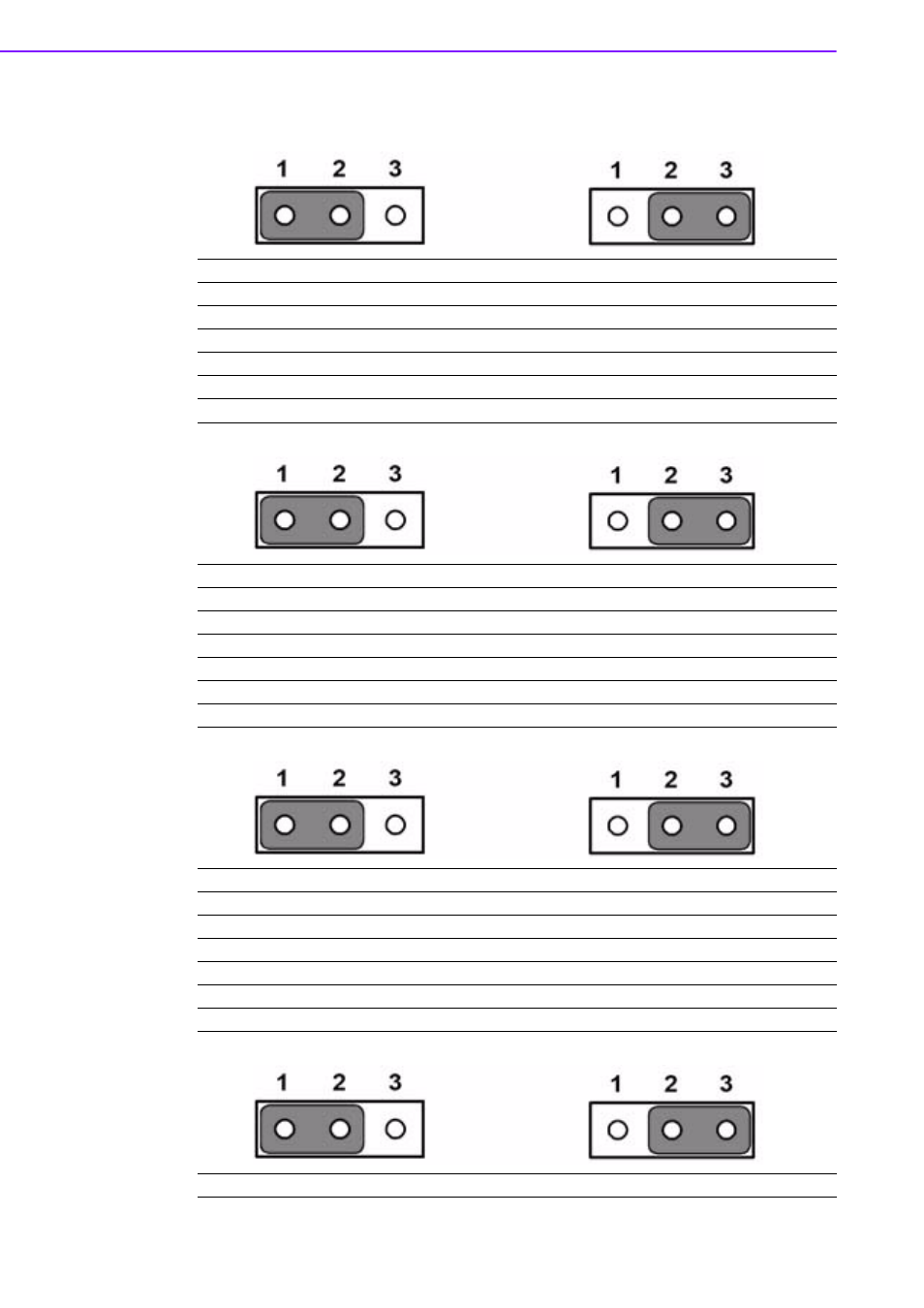

Jumper and Connector Tables

JP1

CLEAR CMOS

Part Number

1653003101

Footprint

JH3X1V-2M

Description

PIN HEADER 3*1P 180D(M) 2.0mm DIP SQUARE W/O Pb

Setting

Function

(1-2)

NORMAL (Default)

(2-3)

CLEAR CMOS

JP2

LVDS PANEL POWER Select

Part Number

1653003101

Footprint

JH3X1V-2M

Description

PIN HEADER 3*1P 180D(M) 2.0mm DIP SQUARE W/O Pb

Setting

Function

(1-2)

5V for +VLVDS_PANEL POWER Select

(2-3)

3.3V for +VLVDS_PANEL POWER Select (Default)

JP3

COM3 RS422/RS485 Select

Part Number

1653003101

Footprint

JH3X1V-2M

Description

PIN HEADER 3*1P 180D(M) 2.0mm DIP SQUARE W/O Pb

Setting

Function

(1-2)

RS485 (default)

(2-3)

RS422

JP4

PCI I/O Voltage Select
