Advantech PCM-3362 User Manual
Page 68
PCM-3362 User Manual
60

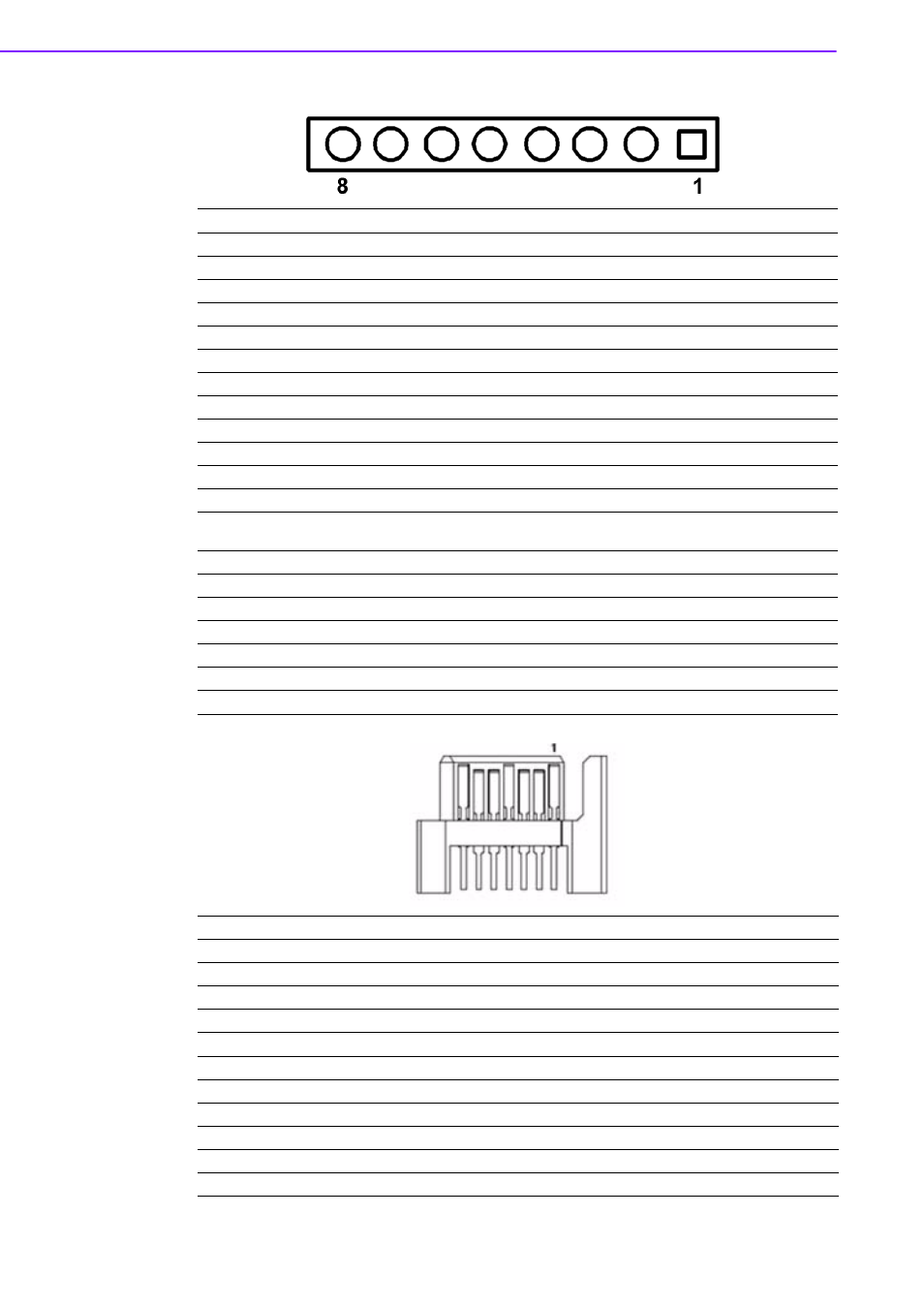

CN12
Front panel Connector
Part Number
1653008101
Footprint
JH8X1V-2M
Description
PIN HEADER 8*1P 180D(M) 2.0mm DIP 209-1*8GS
Pin
Pin Name
Signal Type
Signal Level
1
PSIN#
IN
+3.3 V
2
GND
3
RESET
IN
4
GND
5
PWR_LED
OUT
6
GND
7
+V3.3
PWR
+3.3 V
8
HD_LED
OUT
CN13
Buzzer Connector
Part Number
1653002101
Footprint
HD_2x1P_79_D
Description
PIN HEADER 2*1P 180D(M)SQUARE 2.0mm DIP W/O Pb
Pin
Pin Name
Signal Type
Signal Level
1
+V3.3
PWR
+3.3 V
2
SB_z_SPKR
OUT
CN15
SATA1 connector
Part Number
1654000128
Footprint
SATA-LD11071S02
Description
Serial ATA 7P 90D(M) SMD 15u Reverse
Pin
Pin Name
Signal Type
Signal Level
1
GND
GND
2
SATA0_TX+
I/O
Analog
3
SATA0_TX-
I/O
Analog
4
GND
GND
5
SATA0_RX-
I/O
Analog
6
SATA0_RX+
I/O
Analog
7
GND
GND
