33
PCM-3362 User Manual
Chapter 3
A
MI BIOS
Setup
3.7
Advanced Chipset Settings

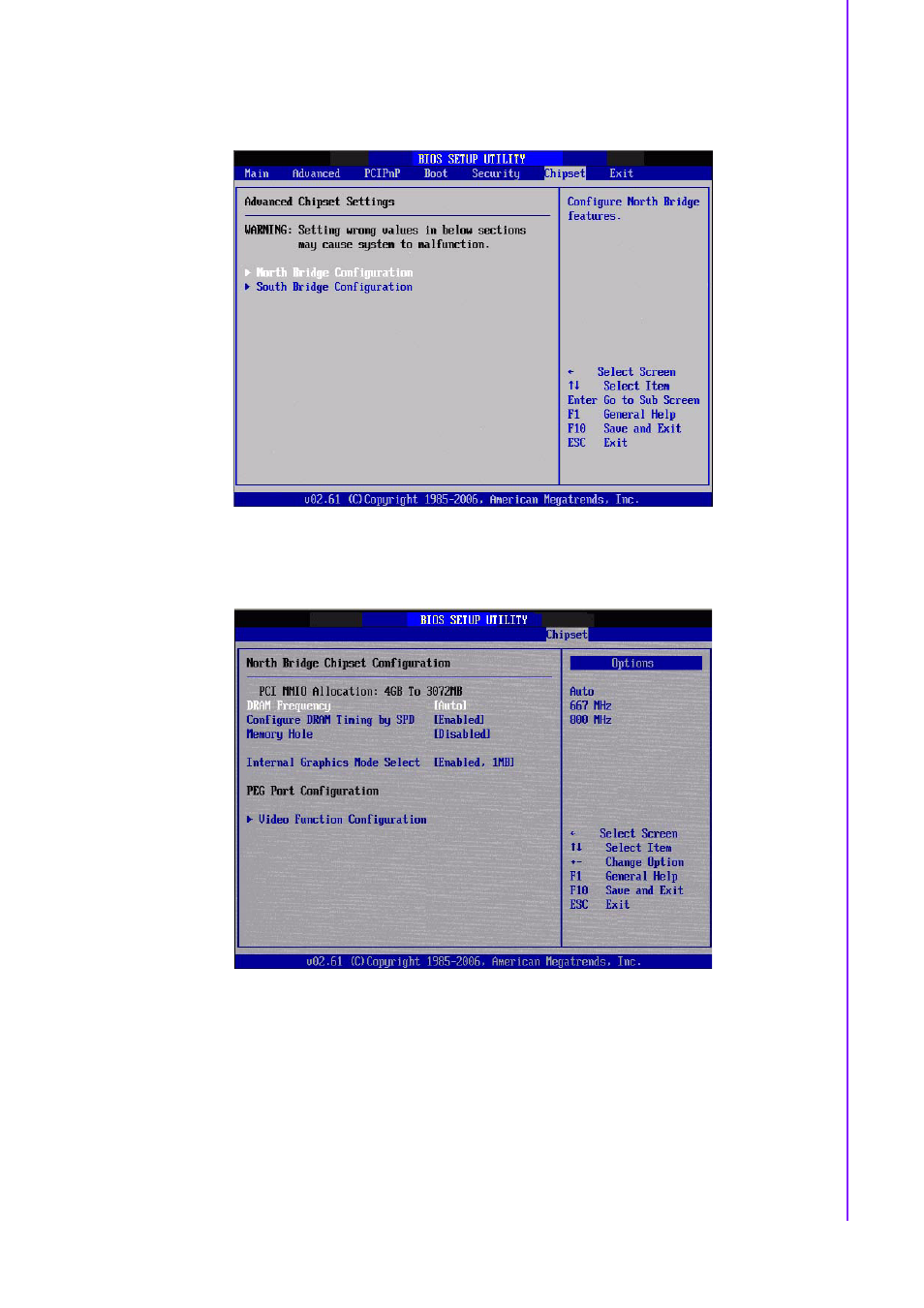

Figure 3.23 Advanced Chipset Settings
3.7.1
North Bridge Chipset Configuration
Figure 3.24 North Bridge Configuration
DRAM Frequency
This item allows you to manually changed DRAM frequency.
Configure DRAM Timing by SPD
This item allows you to enables or disables detect by DRAM SPD.
Memory Hole
This item allows you to free 15MB-16MB of memory size for some ISA devices.
Internal Graphics Mode Select: Select the amount of system memory used by the
Internal graphics device.
