16 gpio connector (cn21), 17 atx power in connector (cn23), 18 power connectors (cn24) – Advantech PCM-3362 User Manual

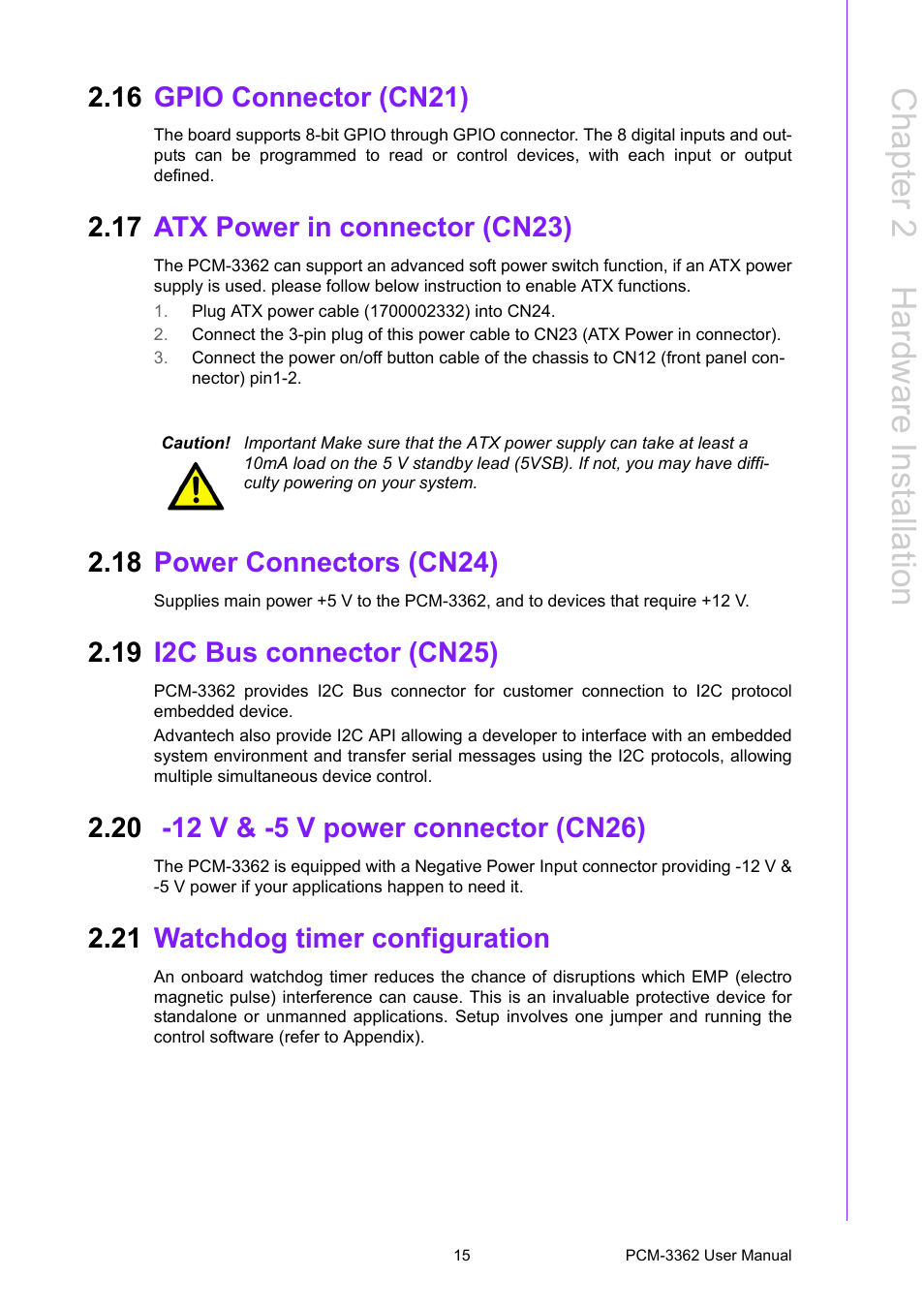

Page 23: 19 i2c bus connector (cn25), 20 -12 v & -5 v power connector (cn26), 21 watchdog timer configuration, Gpio connector (cn21), Atx power in connector (cn23), Power connectors (cn24), I2c bus connector (cn25)

16 gpio connector (cn21), 17 atx power in connector (cn23), 18 power connectors (cn24) | 19 i2c bus connector (cn25), 20 -12 v & -5 v power connector (cn26), 21 watchdog timer configuration, Gpio connector (cn21), Atx power in connector (cn23), Power connectors (cn24), I2c bus connector (cn25) | Advantech PCM-3362 User Manual | Page 23 / 88 16 gpio connector (cn21), 17 atx power in connector (cn23), 18 power connectors (cn24) | 19 i2c bus connector (cn25), 20 -12 v & -5 v power connector (cn26), 21 watchdog timer configuration, Gpio connector (cn21), Atx power in connector (cn23), Power connectors (cn24), I2c bus connector (cn25) | Advantech PCM-3362 User Manual | Page 23 / 88
