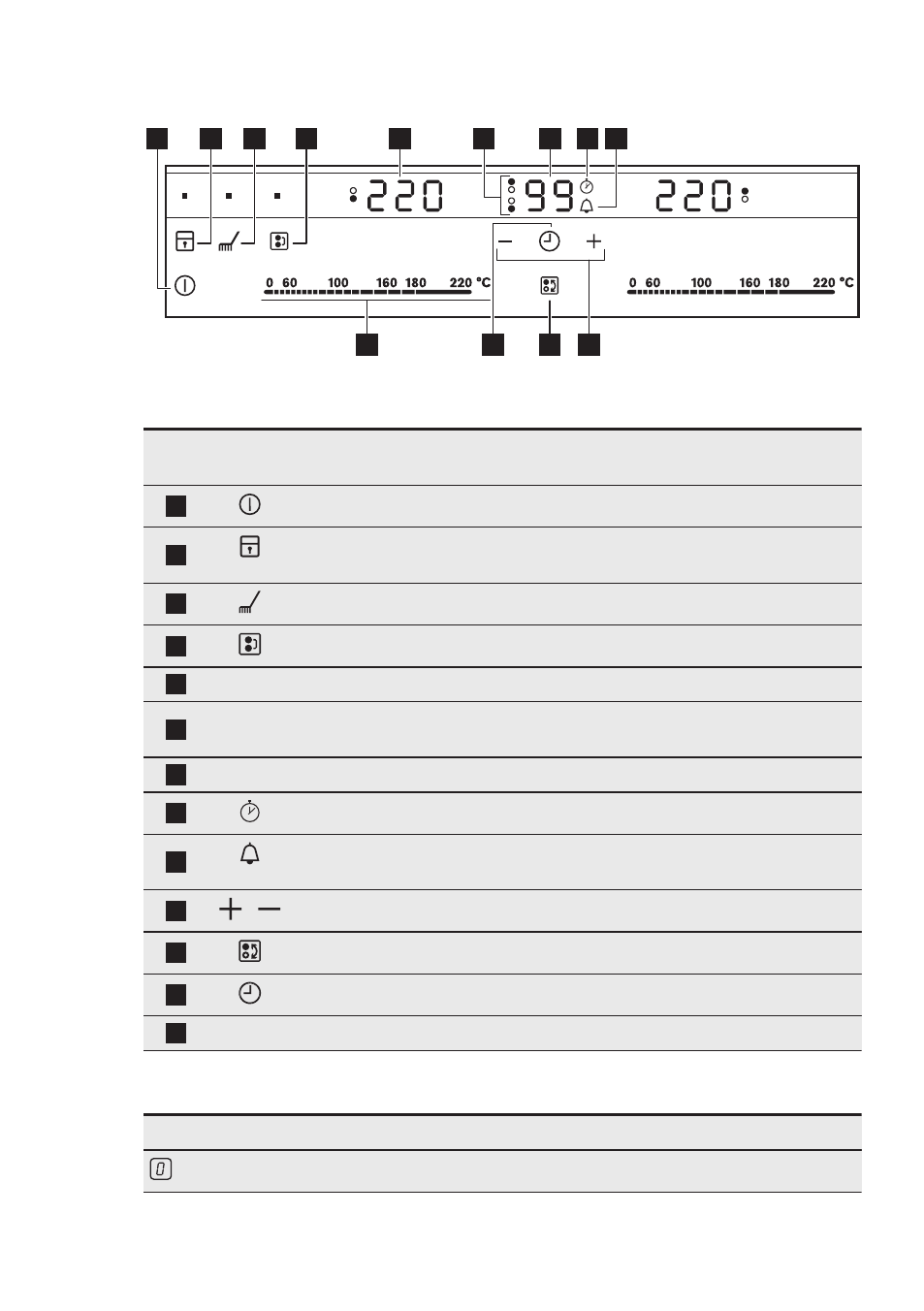

3.3 Control panel layout
7 8 6 9 5 3 4 2 1
10 11 13 12
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.
Sensor
field
Function Comment
1
ON / OFF To activate and deactivate the hob.
2
Lock / The Child Safety
Device
To lock / unlock the control panel.
3
Cleaning To activate and deactivate the function.
4
Bridge To activate and deactivate the function.
5 - Temperature display To show the temperature.
6
- Timer indicators of
roasting zones
To show for which zone you set the time.
7 - Timer display To show the time in minutes.
8
CountUp Timer To show that the function operates.
9
Count Down Timer / Mi-
nute Minder
To show that the function operates.
10 /
- To increase or decrease the time.
11
- To select the roasting zone.
12
- To select the Timer function.
13 - Control bar To set the temperature.
3.4 Heat setting displays
Display Description
The roasting zone is deactivated.
