Load paper to adjust the printhead – Canon imagePROGRAF iPF815 User Manual
Page 15

15
Caution
•

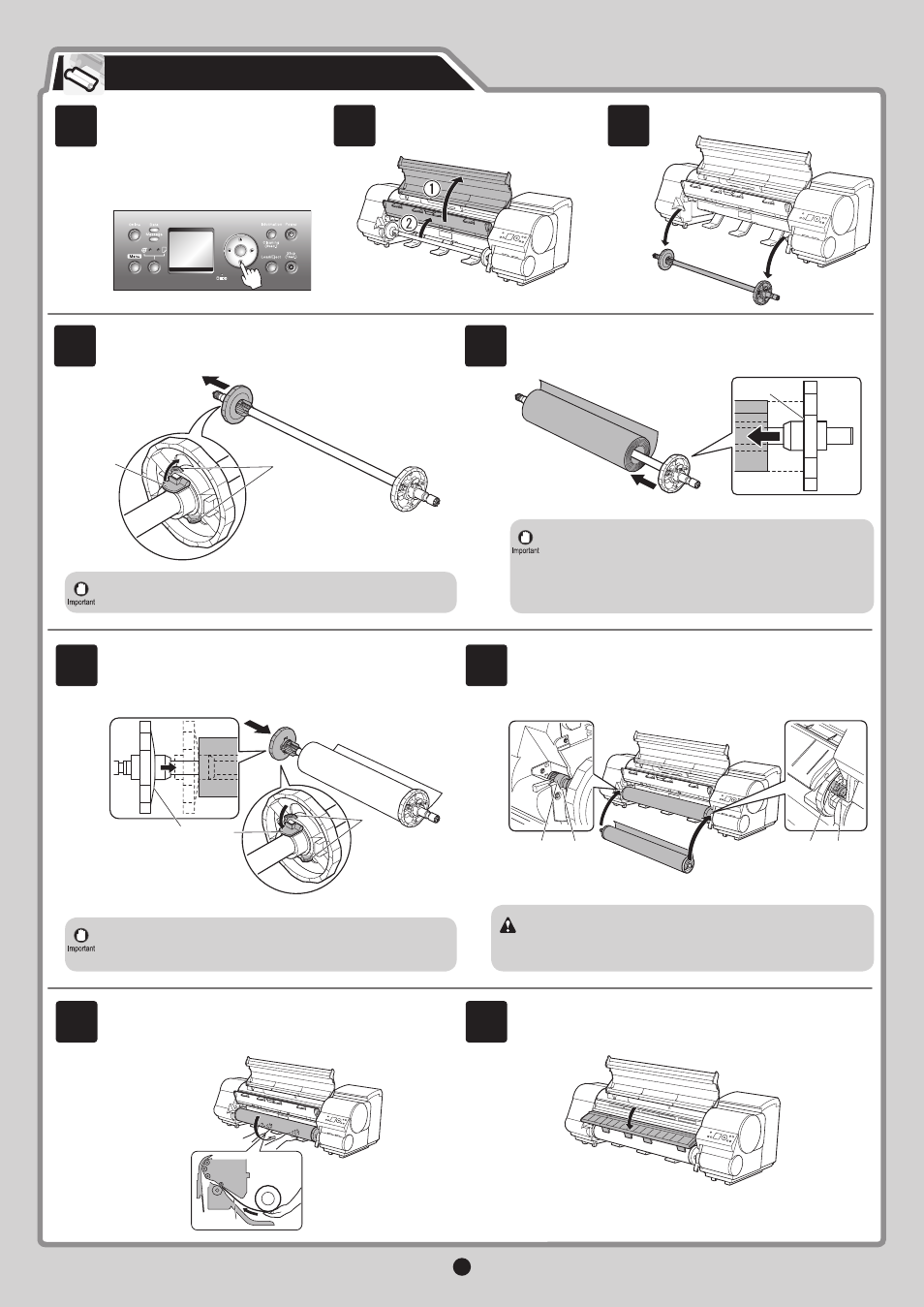

Follow these steps to load a roll and adjust the Printhead alignment.
The included Sample Paper is used in this example.
After the system has fi lled with ink when
you are fi nished installing the Printhead
and Ink Tanks, the message Select
type of paper for printhead adj. is
shown on the Display Screen. Press ▲
or ▼ to select Roll1 (Upper) (iPF815:
Roll Paper) and press the OK button.
With the edge of the roll paper facing front as shown, insert the
roll on the Roll Holder from the right. Insert the roll fi rmly until it
touches the fl ange (a) of the Roll Holder.
Insert the Holder Stopper in the Roll Holder from the left, as
shown. Holding it at the position indicated (b), push it fi rmly in
until the fl ange (a) of the Holder Stopper touches the roll. Lock
the Holder Stopper lever (c) by pushing it down toward the shaft
side.
Holding the Roll Holder so that the side with the white gear faces
the side of the Roll Holder Slot with a white gear, load the Roll
Holder shaft (a) into the grooves (b) on both ends of the Roll
Holder Slot.
•
•
Pull out the roll paper evenly on both ends, insert the roll paper in
the Paper Feed Slot (a), and advance the roll paper until you hear
a tone.
Remove the Roll Holder from the
printer.
• If the paper is wrinkled or warped, straighten it out before loading it.
Open the Top Cover and lift the
Ejection Guide .
Lift the Holder Stopper lever (a) from the shaft side to unlock the
stopper. Holding the Holder Stopper at the position indicated (b),
remove the stopper from the Roll Holder .
We recommend wearing clean cloth gloves when handling rolls to
protect the printing surface.
•
Insert the roll fi rmly so that there is no gap between the roll and
the fl ange of the Roll Holder . A gap may cause feeding problems.
•
Set the roll horizontally on a table or other fl at surface to prevent
the roll from falling. Dropping a roll may cause injury.
•
When loading a roll, be careful to avoid hitting the Roll Holder hard
with the roll. This may damage the Roll Holder .
•
Insert the roll fi rmly to eliminate any gap between the roll and the fl ange
of the Roll Holder. A gap may cause feeding problems.
Be careful not to cause injury by dropping a roll.
Be careful not to put the fi ngers between the guide grooves (b) and
the Roll Holder shaft (a) when loading a roll. Otherwise, you may hurt
yourself.
Lower the Ejection Guide .
5
6
2
4
1
a
b
a
a
b
c
7
b
a
b
a
8
a
3
9
OK
Load Paper to Adjust the Printhead
