4

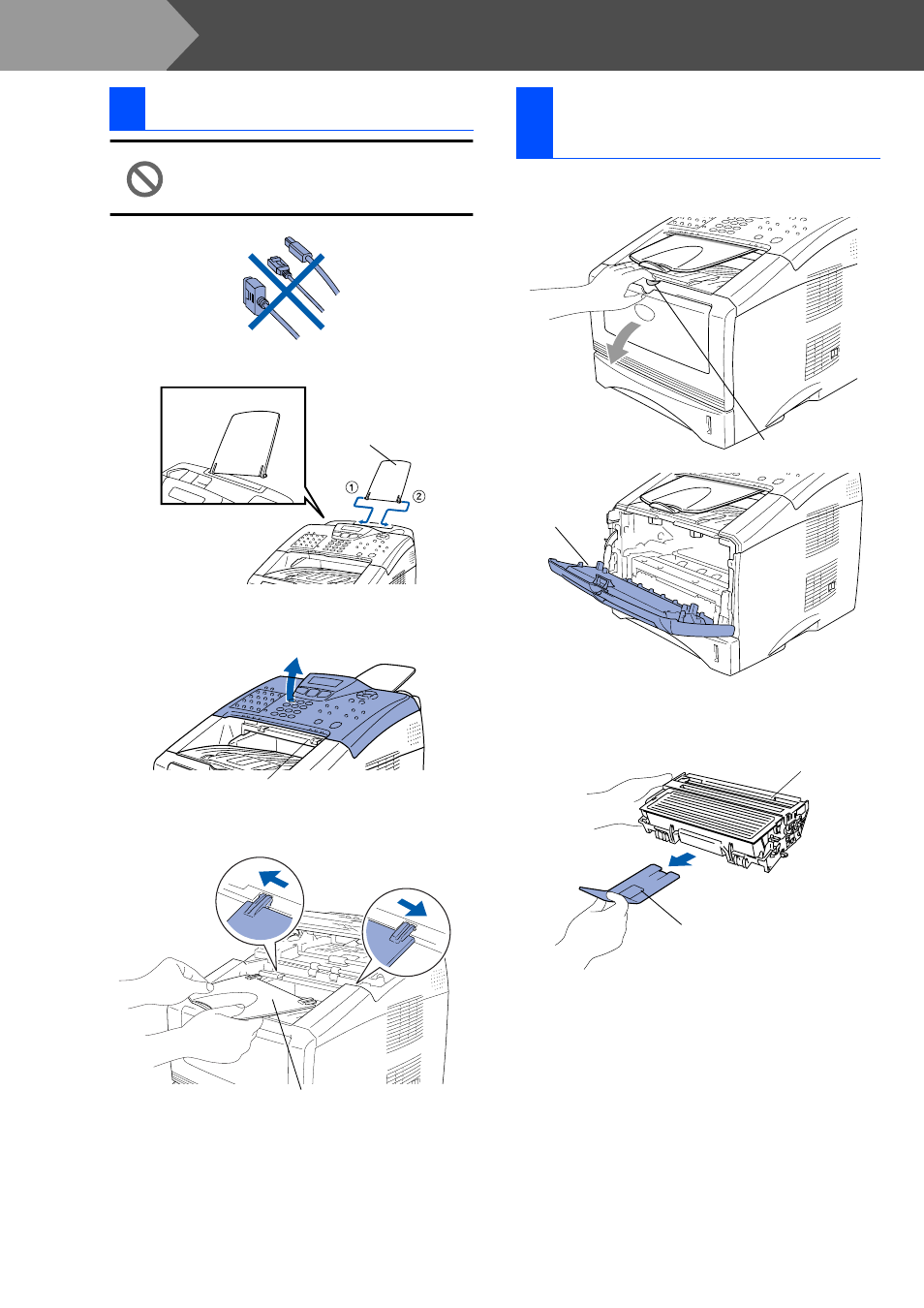

Setting Up the Machine

DO NOT connect the interface cable.
Connecting the interface cable is
done when installing the driver.

1

Attach the ADF document support.

2

Open the control panel cover by lifting it
toward the back.

3

Attach the ADF Support.

4

Close the control panel cover.

1

Open the front cover by pressing the front
cover release button.

2

Unpack the drum unit assembly.
Remove the protective part.

1

Attaching the Supports

ADF Document
Support

Control Panel Cover

ADF Document Output Support

2

Installing the Drum Unit
Assembly

Front Cover
Release Button

Front Cover

Drum Unit
Assembly

Protective Part

Step 1
