Connector Pin Assignments
45
5200 User’s Manual

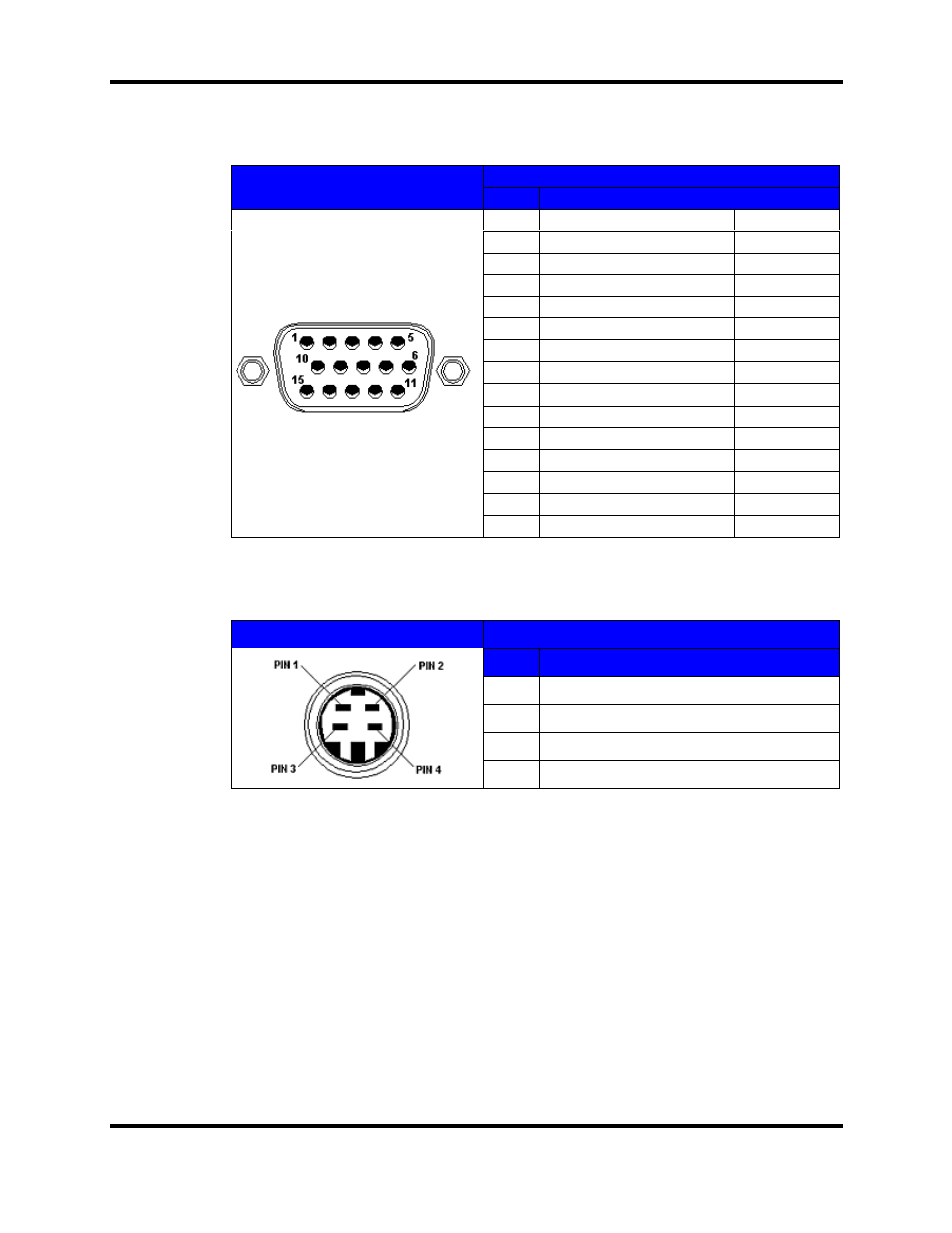

Internal Video Card “OUT” Pin Assignments Internal Video Card “OUT”
Pin Numbers Pin Signal
1 Red Video RED
2 Green Video GREEN
3 Blue Video BLUE
4 Ground GND
5 DDC Return DCD RET
6 Ground Red GND RED
7 Ground Green GND GRN
8 Ground Blue GND BLU
9 Reserved RESV
10 Ground Sync GND SYNC
11 Ground GND
12 DDC Data DDC DATA
13 Horizontal Synchronization HSYNC
14 Vertical Synchronization VSYNC
Internal Video
Card "OUT"
(HD15 pin)
This port may
be used to
display the
internal SXGA
source to an
external
monitor.
Used primarily
when servicing
the projector.
15 DDC Clock DDC CLK
S-Video Pin Numbers S-Video Pin Assignments
PIN SIGNAL
1 Ground
2 Ground
3 "Y" (1vp-p)
S-Video Input
(4 pin mini D)
4 "C" (0.285vp-p)
