5200 User’s Manual

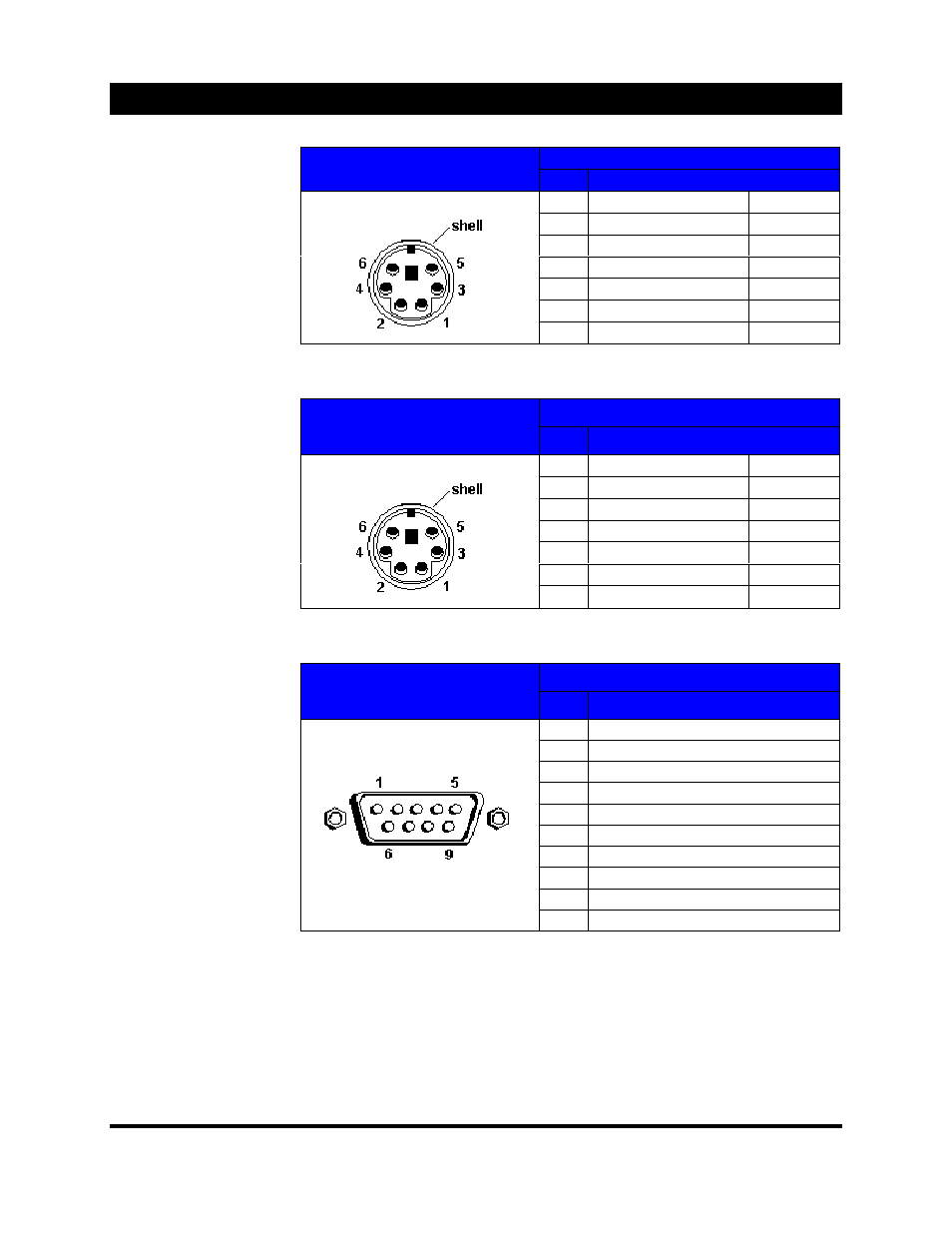

Connector Pin Assignments
Keyboard Port Pin Assignments
Keyboard Port Pin Numbers
Pin
Signal
1
Keyboard Data
KBDATA
2
No Connection
N/C
3
Signal Ground
GND
4
Fused Supply Voltage
FVcc
5
Keyboard Clock
KBCLK
6
No Connection
N/C
Keyboard Port
Your projector comes
standard with a wireless
keyboard. The cables
and adapters for
connecting the keyboard
IR receiver are provided.
Shell Chassis Ground
N/A
Mouse Port Pin Assignments
Mouse Port Pin Numbers
Pin
Signal
1
Mouse Data
MFDATA
2
No Connection
N/C
3
Signal Ground
GND
4
Fused Supply Voltage
FVcc
5
Mouse Clock
MFCLK
6
No Connection
N/C
P/S 2 Mouse Port
The mouse port is used
to connect the IR
Keyboard Mouse Pad.
Shell Chassis Ground
N/A
COM 1 & 2 Pin Assignments
COM 1 & 2 Pin Numbers
Pin
Signal
1
Data Carrier Detect
2
Serial Input
3
Serial Output
4
Data terminal ready
5
Signal Ground
6
Data Set Ready
7
Request To Send
8
Clear To Send
9
Ring Indicator
Serial Port 1 & 2
(COM 1 & 2)
COM1: Unused. Use for
third party or external
RS232 control.
COM2: Used to connect
the IR Remote Control
Receiver.
Shell Chassis Ground
