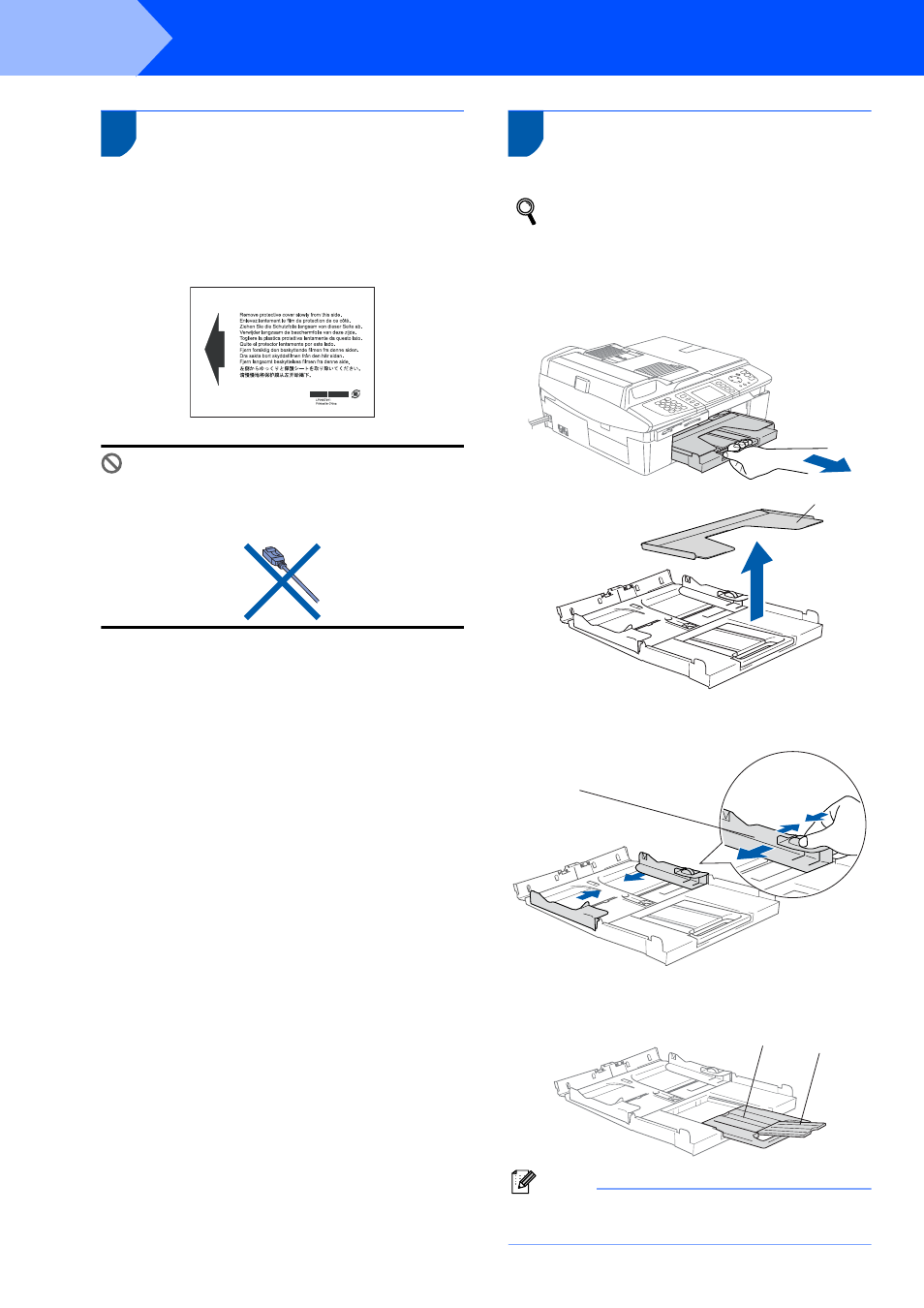

Setting Up the Machine

4

STEP 1

1

Removing the protective

parts

1

Remove the protective tape, then, starting from
the left hand side, carefully remove the scanner
glass protection sheet.

Improper Setup

DO NOT connect the USB cable. Connecting
the USB cable is done during the software
installation process.

2

Loading paper

You can load up to 100 sheets of 20 lb
(80 g/m

2

) paper.

For details, see About paper in Chapter 2 of
the User’s Guide.

1

Pull the paper tray completely out of the
machine and remove the output paper tray (1).

2

Press and slide the paper guide (1) to fit the
paper width.

3

Pull out the paper support (1) and unfold the
paper support flap (2).

Note

Use the paper support flap for Letter, Legal and A4
paper.

11

11

1

2
