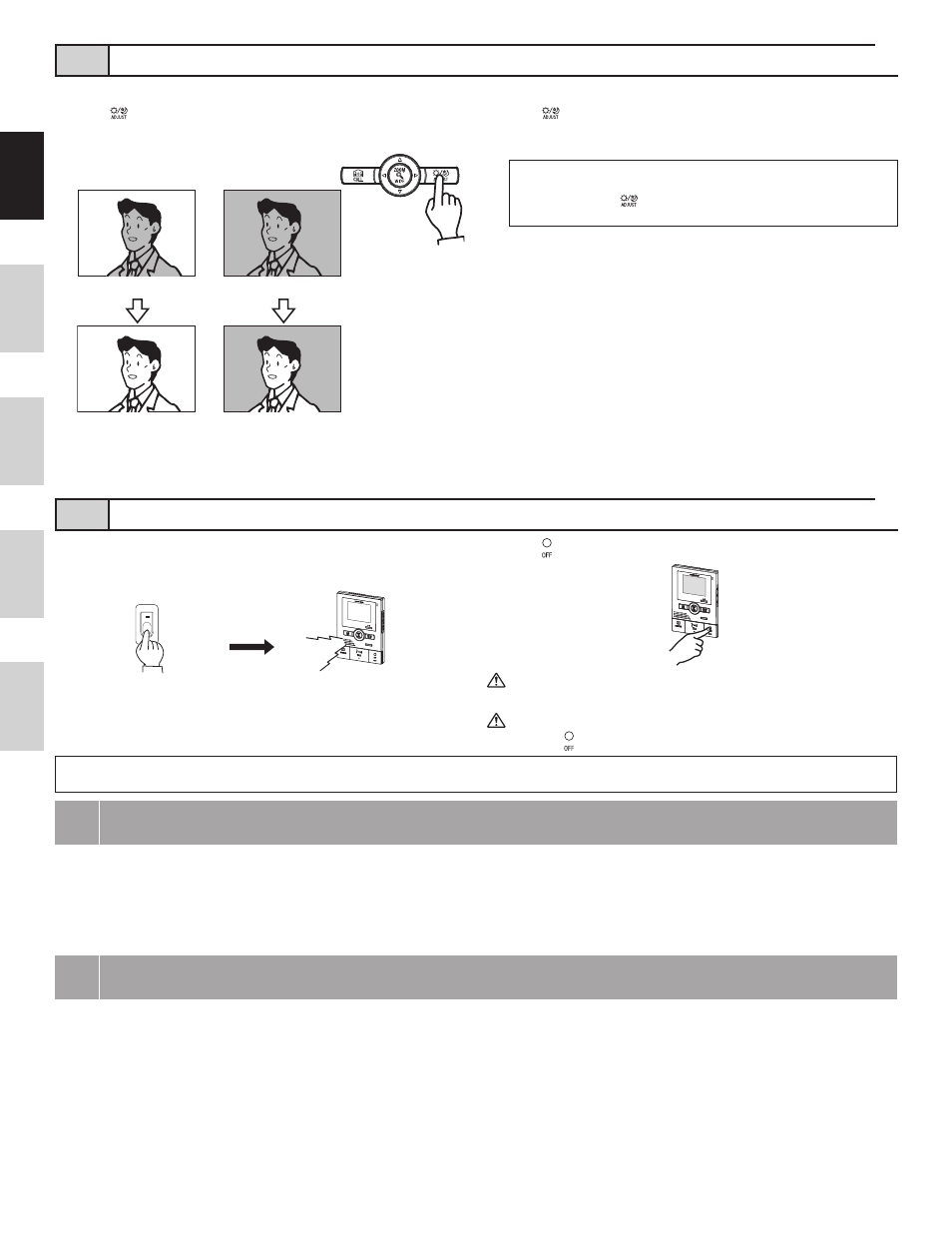

6-9 Backlight adjustment, Night sensitivity adjustment
To perform adjustment
1
Press
ADJUST button when the screen is difficult to see.
Automatic adjustment to a more visible screen is performed.
[Before adjustment]
[Before adjustment]
[After adjustment]
[After adjustment]
To halt adjustment
1
Press
ADJUST button during adjustment.
NOTES: 1. Distinguishing between day and night is automatically done by
the door station.
2. Pressing
ADJUST button at night makes the caller's face
easier to see, but moving subjects may be more difficult to see.
6-10 If optional units are installed
1
When a separately-installed sensor detects a malfunction or CALL
button is pressed, the alarm sound occurs and the transmit LED (red)
flashes.
Prrrrrr
2
Press OFF button to stop the alarm sound.
1. Even if the chime tone and alert sound volume is set to 0 (OFF), it
will sound at a level equivalent to 10 (HIGH).
2. The alarm sound stops after 30 seconds and restoration occurs
even if OFF button is not pressed.
NOTES: If there is a call from the entrance or another inside unit during notification, the system switches to the entrance or other inside unit (communication is
prioritized).
7
TECHNICAL PRECAUTIONS
Operating temperature: 0 C to 40 C (+32 F to +104 F)
The video image may distort when the door release is activated. But
this is not a unit malfunction.
Cleaning: Clean the units with a soft cloth dampened with a neutral
household cleanser. Do not use any abrasive cleaner or
cloth.
If there is a system malfunction, turn the POWER switch at the
monitor station OFF and back ON again. If this does not solve
the problem, unplug the DC power supply and contact a qualified
technician for service.
8
SPECIFICATIONS
Power:
DC 18 V
Current consumption: (Max.) 400 mA
Calling:
Chime and image, approx. 45 seconds
Communication:
sec.
Video monitor:
3-1/2" direct view TFT color LCD
Scanning lines:
525 lines
Door release contact: AC/DC 24 V, 0.5 A (N/O dry closure contact L, L)
(Minimum contact : 100 mV DC, 0.1 mA)
(Aiphone's EL-12S is recommended.)
Dimensions:
185 (H) x 135 (W) x 27 (D) (mm)
7-5/16 (H) x 5-5/16 (W) x 1-1/16 (D) (inches)
Weight:
Approx. 370 g (0.82 lbs.)
