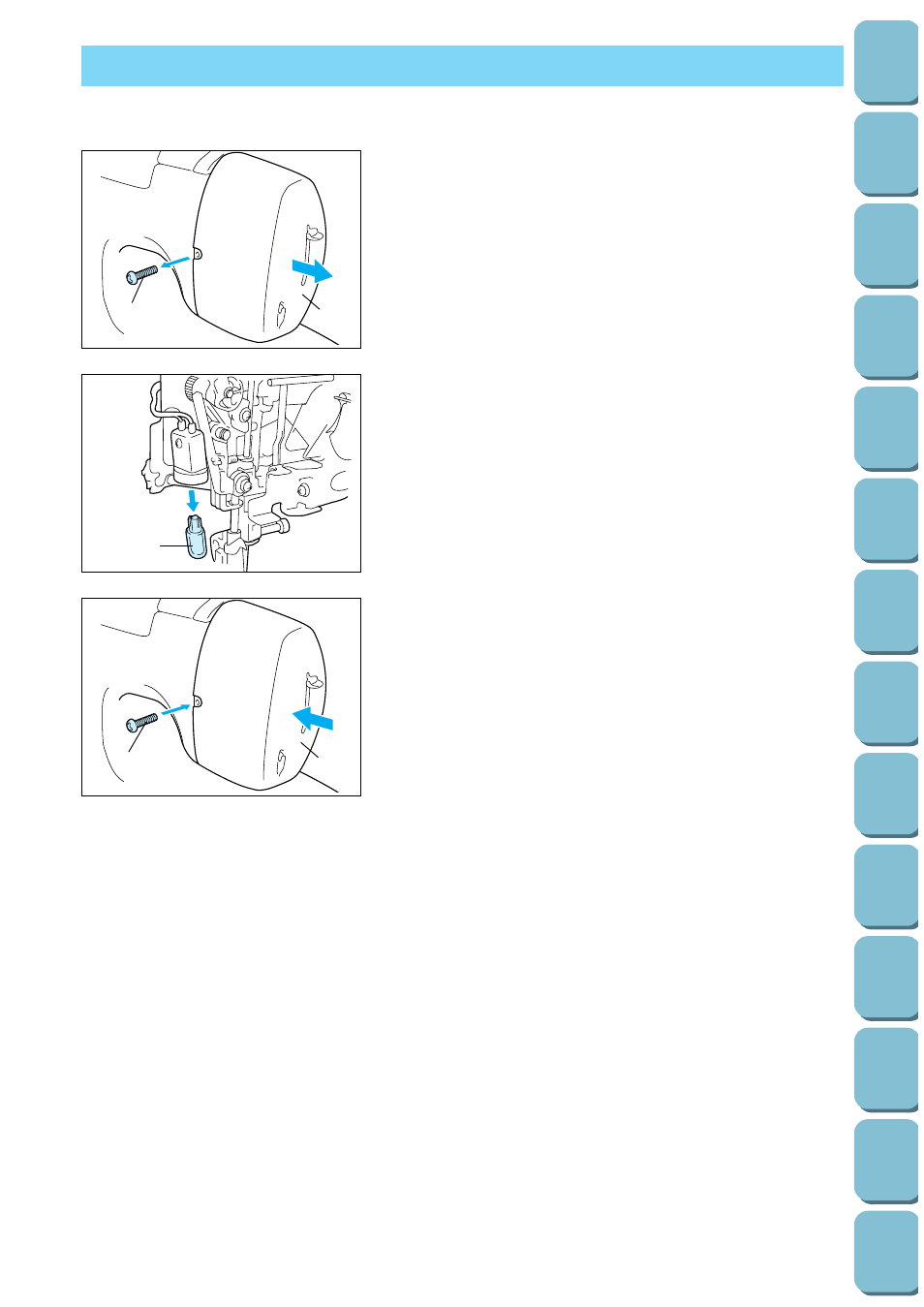

CHANGING THE LIGHT BULB
When replacing the light bulb
1
2
1. Turn the power off.
*
The power cord plug must be removed from the electric
outlet prior to changing the bulb.
2. Loosen the screw on the reverse side of sewing head.
3. Remove the end cap.
1
Screw
2
End cap
1
4. Replace the snap-in the light bulb with a new one.
1
Light bulb
*
Light bulbs are available through your dealer. (12V, 5W/
Parts code XA2037001)
1
2
5. Set the end cap.
6. Tighten the screw.
1
Screw
2
End cap
171
(Programmed
