Page 111
108

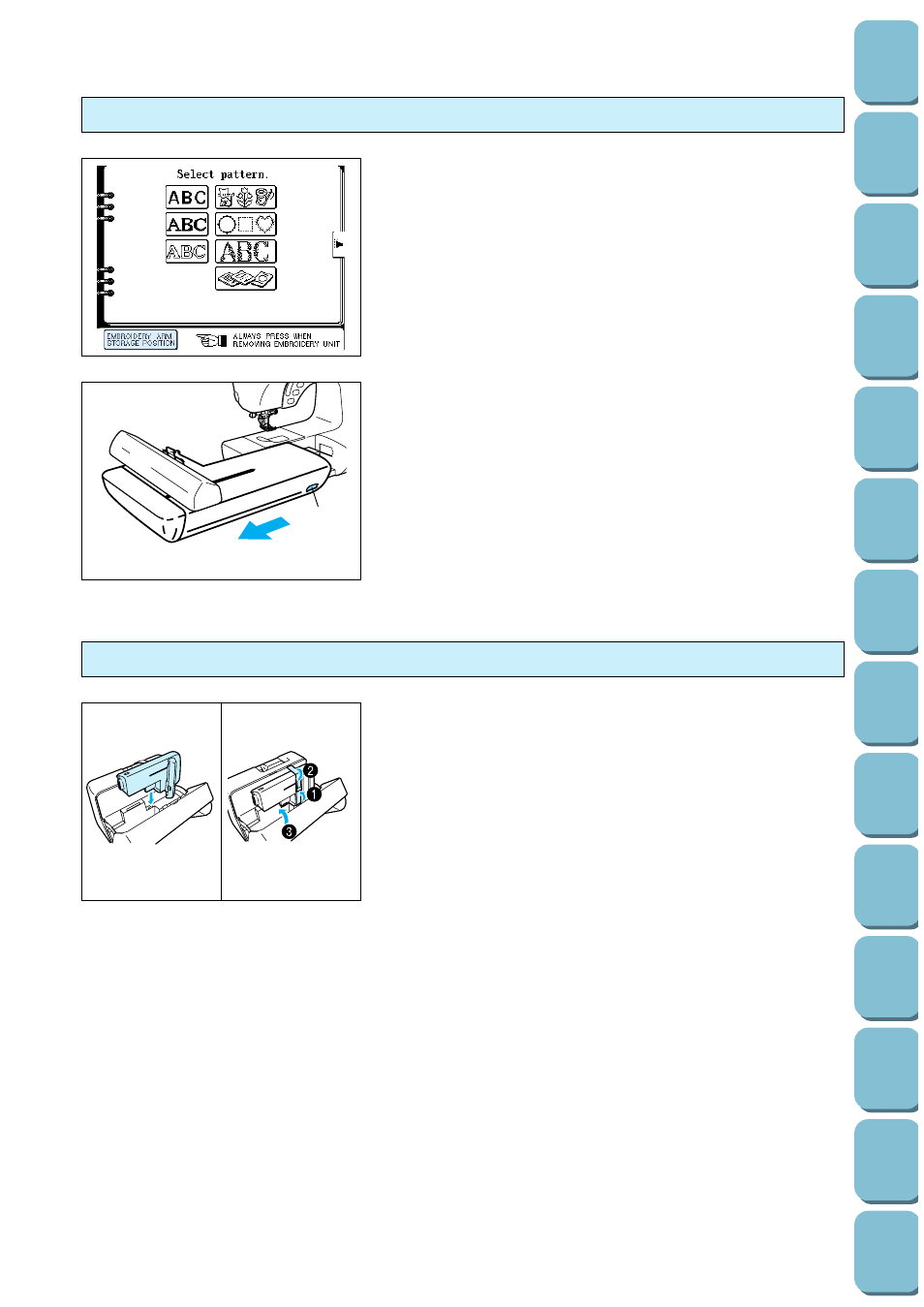

1. Make sure that the embroidery frame has been removed,
touch the “EMBROIDERY” key or the “EMBROIDERY EDIT”
key, and then touch the “EMBROIDERY ARM STORAGE
POSITION” key. The carriage will move to the removal
position.
CAUTION
If the above procedure is not carried out, the embroidery
unit cannot be placed in the case.
1
2. Turn off the power, hold the left side of the embroidery unit,
and while pressing the release button, gently slide the
embroidery unit away from the machine.
1
Release button
CAUTION
Make sure that the power is turned off, otherwise damage
may result.
Removing the embroidery unit
1
2
1
Hook the embroidery unit onto the tab inside the case.
2
Secure the embroidery unit with the band.
3
Close the cover.
Placing the embroidery unit into its case
