165
Introduction

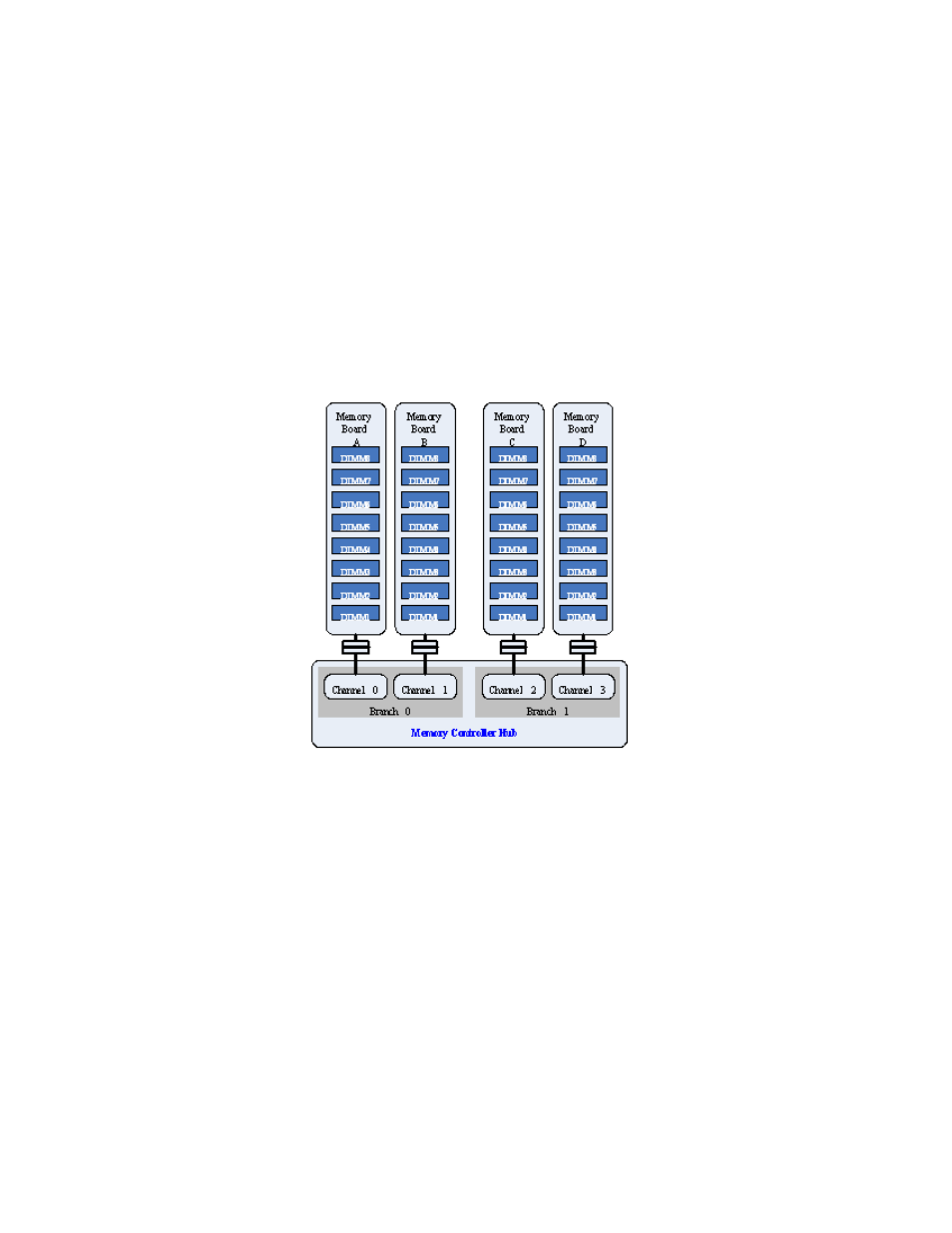

The system’s memory architecture supports up to four memory boards
organized by branches and channels. The MCH (memory controller
hub) on the north bridge has two branches with branch 0 going to
channels 0 and 1 or memory board A and B, and branch 1 to channels 2
and 3 or memory board C and D.
In dual-channel mode, FBDIMMs on adjacent channels work in lockstep
to provide the same cache line data and a combined ECC. In the single-
channel mode only channel 0 is active. The BIOS dynamically configures
the memory controller in accordance with the available FBDIMM
population and the selected RAS (reliability, availability, serviceability
(RAS) mode operation.
