44 Installation Guide APC Silcon 60-80kW 400V UPS
990-4051
Options/Accessories
6.0 Options/Accessories
Please contact your local APC representative for information on options/accessories available
in your region. See “How to Contact APC” in this guide.

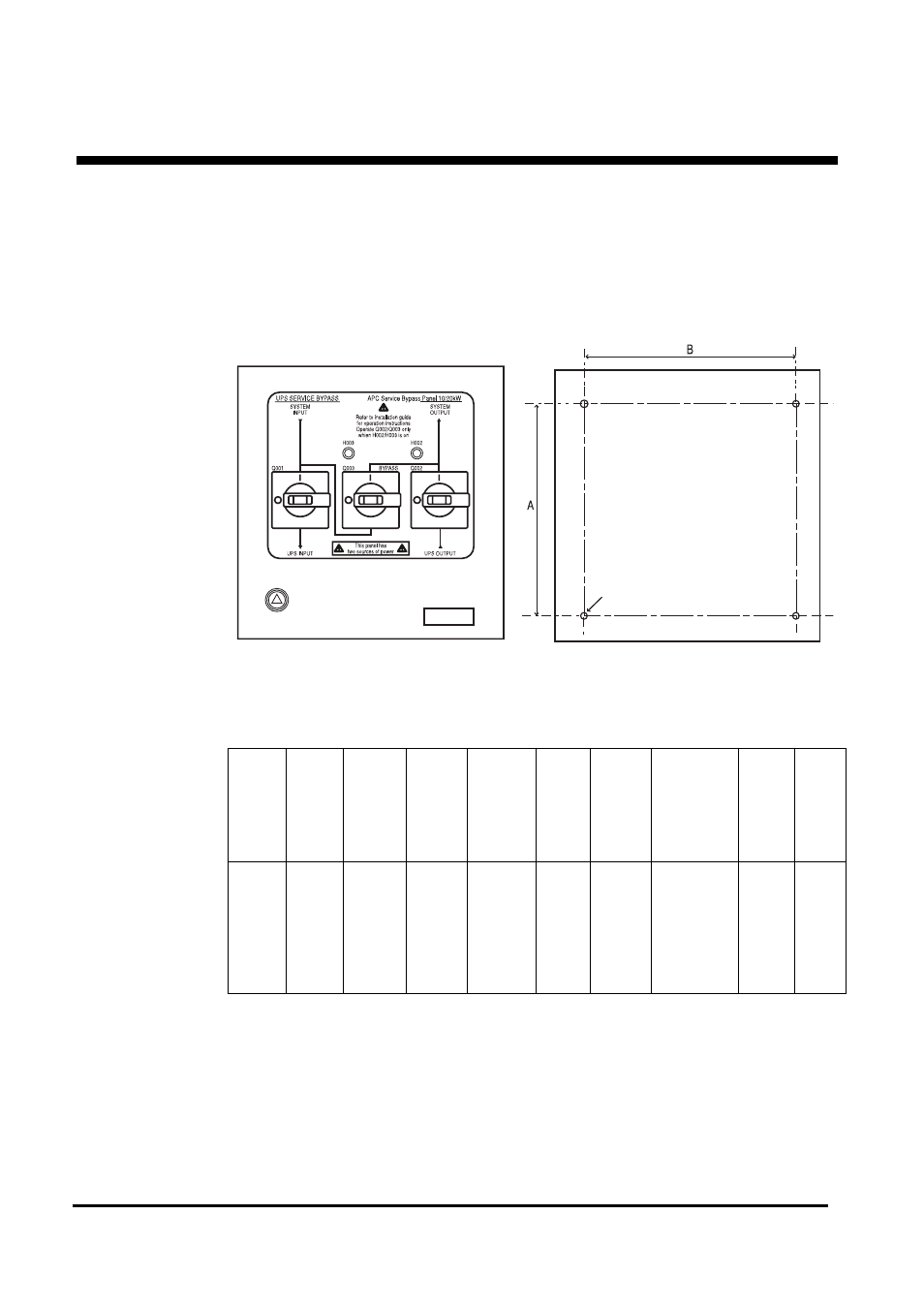

6.1 Service Bypass Panel for Single Operation
UPS Exter-
nal
System
Input
Fuse
[A] Max.
Pro-
spec-
tive
Short-
Circuit
Current
[kA] System
Input/
UPS
Input
Cable
[mm2]
** System
Output/
UPS
Output
Cable
[mm2]
** Max.
Exter-
nal
Syste
m
Output
Fuse
[A]*** Max.
Cable
Size/
Stud
Size Dimensions
HxWxD [mm] Weight
[kg] Fixing
Cen-
tres
AxB
[mm]
60kW
80kW
125
160
30
30
50
70
35
50
100
125
M8
M12
(E:M8)
560x750x
175(235*)
560x750x
175(235*)
30
32
460x
660
460x
660
Fixing holes in rear of box
4 x ø 6.5mm:APC Service Bypass Panel
4 x ø 6.5mm:APC Service Bypass Panel
10/20kW & 40kW
60kW & 80kW
