External connection – APC 60-80kW User Manual
Page 32
32
Installation Guide APC Silcon 60-80kW 400V UPS
990-4051
External Connection

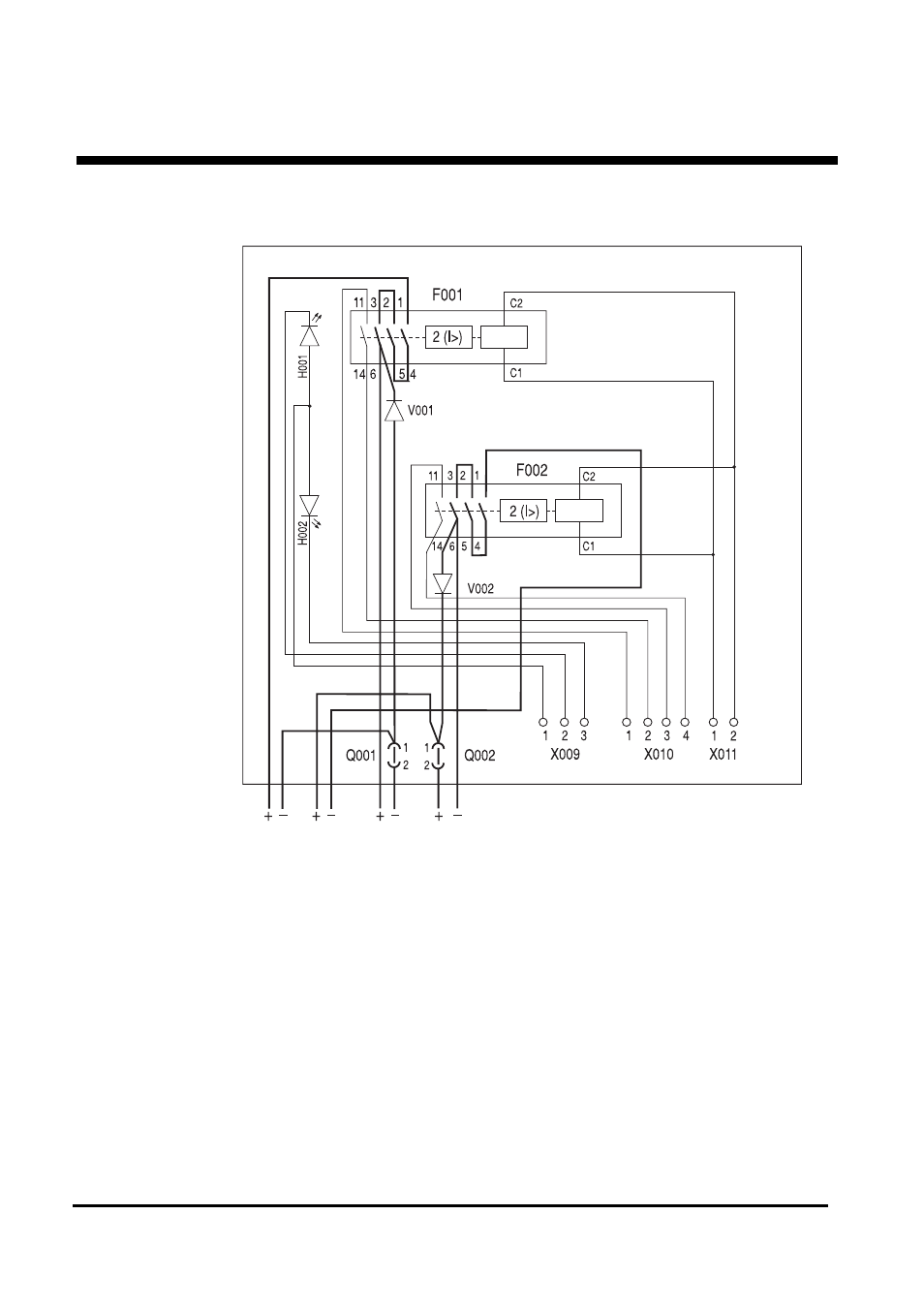

4.8.2 Battery Breaker Box Connection Diagram
X009 LED signal from UPS “OK to operate corresponding MCCB”
X010 MCCB position signals for UPS
X011 Trip for emergency stop (220-240V AC)
Battery 1
Battery 2
Battery 1
Battery 2
UPS
UPS
Main cables are connected directly
to component terminals
