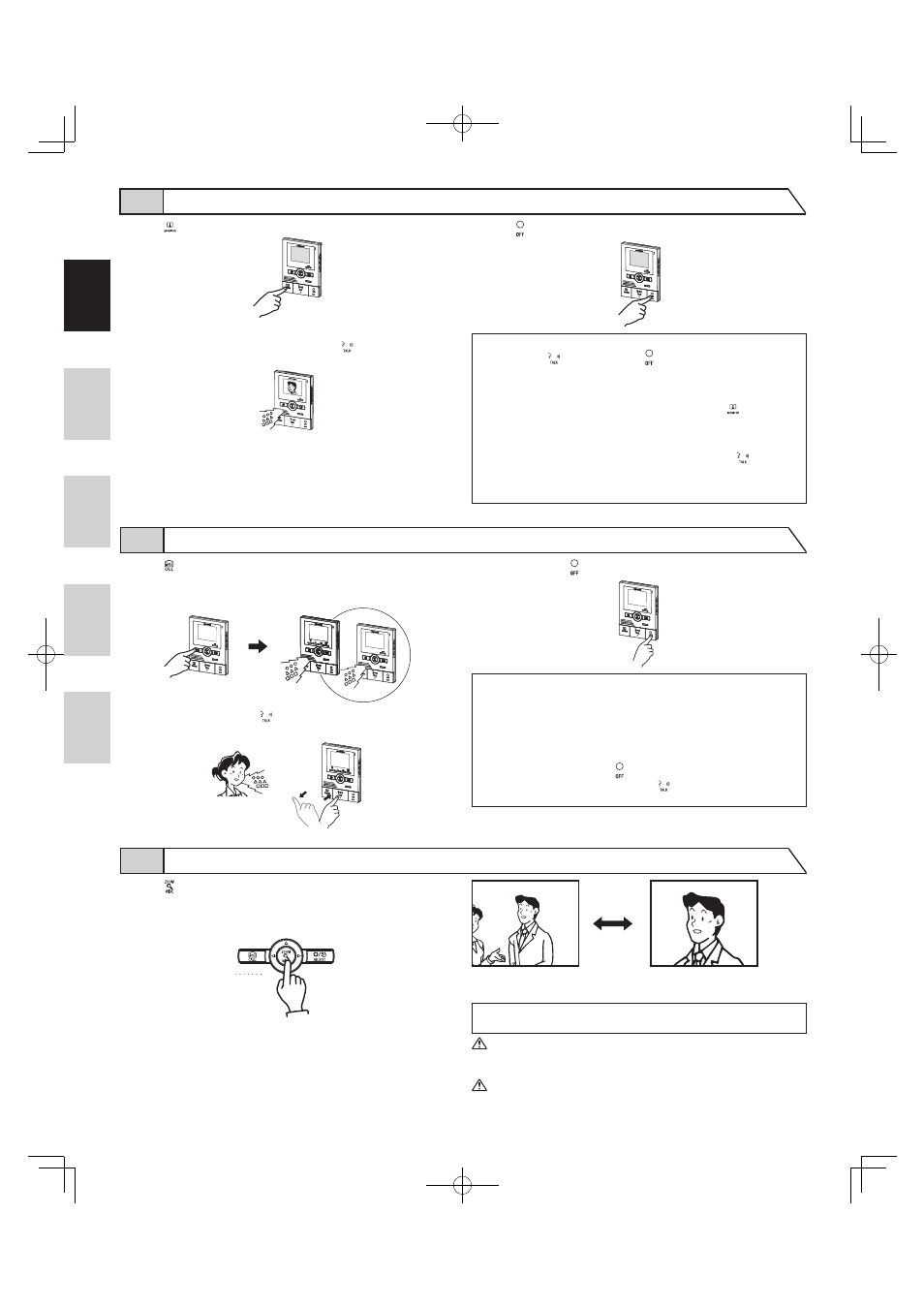

6-3 Entrance monitoring
1
Press MONITOR button in the standby mode.
2
The video monitor displays the image from the door station and the
incoming audio is heard. If you do not press TALK button, the
caller will not hear sounds from the inside station.
3
Press OFF button to end communication.
NOTES: 1. To talk to the entrance during entrance monitoring, momentarily
press TALK button. Press OFF button to end communication.
2. The entrance monitoring turns off automatically after approximately
1 minute. To monitor the entrance again, repeat from the beginning.
3. During entrance monitoring, the entrance monitoring time can
be extended by approximately 1 min. by pressing MONITOR
button.
4. During entrance monitoring, the initial display uses a wide-angle
picture.
5. At night, the Illuminator LED will not light up until TALK
button is pressed.
6. If another inside unit attempts to perform entrance monitoring while
one inside unit is already doing so, a warning beep sound will occur.
6-4 Room-to-room communication
1
Press CALL button to talk with the other person.
A call-in is sent to the master monitor station.
The reply of the other person is not heard.
2
If the other person presses TALK button, hands free
communication is possible.
3
Press and release OFF button to end communication.
NOTES: 1. Room-to-room communication ends automatically after
approximately 10 minutes.
To perform room-to-room communication again, repeat from the
beginning.
2. If a call is received from the entrance during room-to-room
communication, the image from the entrance is displayed at
the monitor station and sub station where communication
is taking place. Press OFF button to end the room-to-
room communication, and press
TALK button to switch to
communication with the door station.
6-5 Wide/Zoom switching
1
Press ZOOM/WIDE button when a picture is displayed.
Switching between wide zoom occurs each time the b utton is
pressed.
[Wide picture] [Zoom picture]
NOTES: When the caller is not shown in the center of the picture, the zoom
picture can be moved up, down, left, and right. (Refer to section 6-6)
1. The wide picture may be distorted in comparison with the zoom
picture due to the characteristics of the door station camera, but
this is not a malfunction.
2. For a call from the entrance, the picture starts with the zoom
picture. For entrance monitoring, the picture starts with the wide
picture.
