5.4 Type R and S

– surface mount

Type R and type S consist of a base plate and
an electronics module that plugs into the base
plate. The base plate is installed and wired first.

The base plate should be installed with
terminals 1 to 4 placed on top. Preferably, use a
cable with 18 AWG wires.

Once the base plate has been installed and
wired, the electronics module can be inserted
and secured with the screw provided.

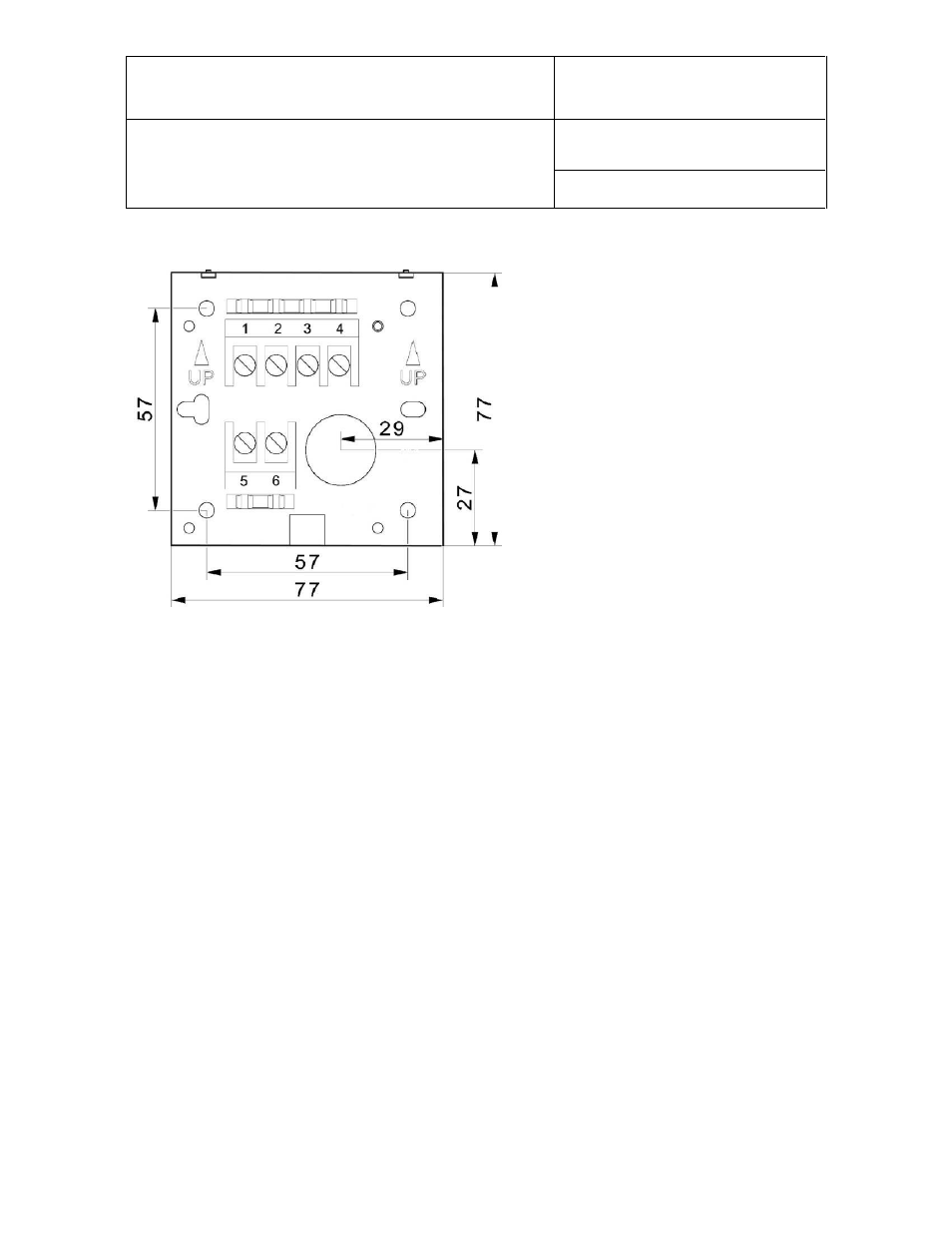

Note: dimensions in mm
