7. Mode Switch Settings
Set each switch for individual settings.
※
The settings don’t take effect until after the soound board is rebooted by replugging in the power supply.
Ensure the switches are in their full on or off position in accordance to the diagram below.

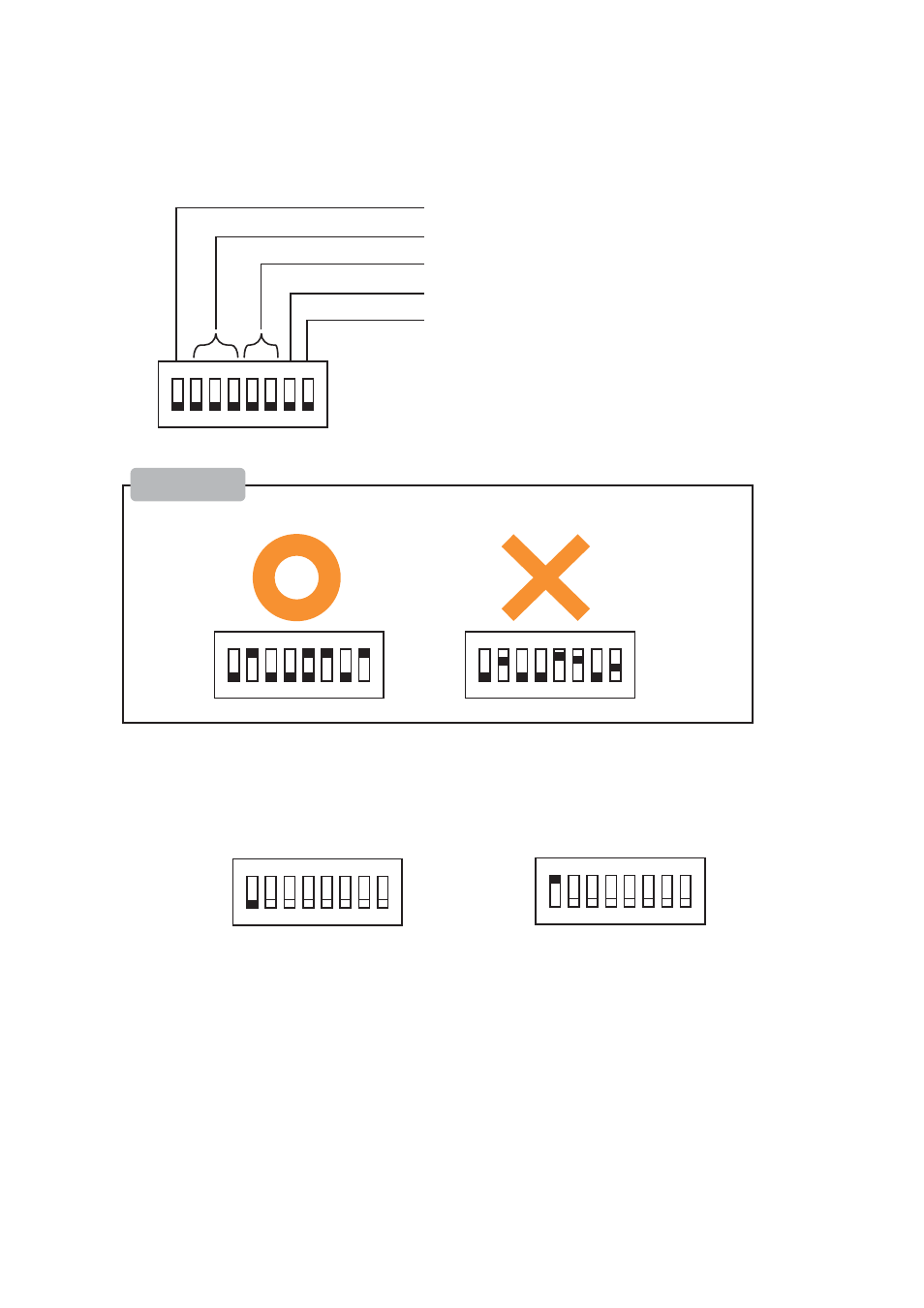

7-1. Channel (CH) Terminal Input
The CH Terminal input can be set for either Binary Input or Bit Input in reference to the diagram below.
O F F
1
2
3
4
5
6
7
8
O F F
1
2
3
4
5
6
7
8
7-1. Channel Terminal Input
7-2. Replay Mode
7-3. SD Card Operation
7-4. Input Hold Time
7-5. Speaker Output
O F F
1
2
3
4
5
6
7
8
O F F
1
2
3
4
5
6
7
8
Factory Settings
O F F
1
2
3
4
5
6
7
8
Bit Input
Binary Input
