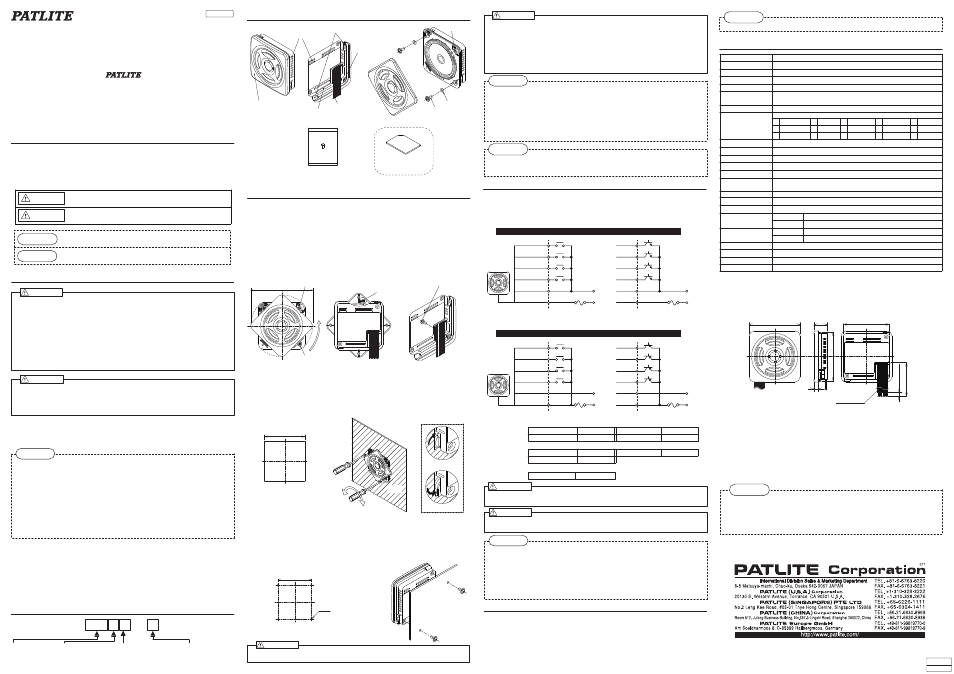

Slim Model MP3 Voice Annunciator

Instruction Manual

[ TYPE : BSV ]

Notice for Safe Operation

In order to prevent any damage to the user and other personnel or to assets, note the

following:

The warning indications are divided into the following classes according to the degree of danger

or damage incurred when the warning is not taken into consideration and the product is not
correctly used.

Thank you for purchasing the Slim Model MP3 Voice
Annunicator for you application. Please read these instructions
carefully before installation, maintenance and repair. Store this
manual in a safe place for future reference. If you have any questions
regarding this product, please contact our PATLITE Sales
Representatives.

1.

To operate this product properly, observe the following:

Depending on the mounting surface material, thickness and the volume of the product, a vibration sound

may be generated from the mounting screws. To prevent it, take countermeasure steps by reinforcing

the mounting screws.

2. Model Number Configuration

3. Part Names

Transistor Type

N: NPN
P: PNP

Front Cover Color

W: Off-white
D: Dark Grey
S: Silver

BSV - 24NM - W

4. Installation

This product can be panel or wall mounted. Please attach in accordance with the procedure for

mounting after removing the front cover.

4-1. Front Cover

When installing or adjusting the volume control to this product, please open and close the front cover in
the following manner.

Turn the front cover in the counter clockwise direction 45 degrees. ※ Assure there is ample rotation

space available for the front cover when mounting.

When attaching for wall-mounting, pull the front cover forward to remove, then pull-out the mounting

screw and O-ring. (Refer to "3. Part Names" for the Front Cover Exploded View)

Please attach the removed parts in steps ① and ② in the reverse order to reassemble. Attach the

front cover so that the "�UP" is on top. (Mounting Screw Recommended Torque: 0.3 N-m)

Use the M3X6 tapping screw (Cover Locking Screw-included) indicated on the lower-right figure to fix

the front cover. (Recommended Torque: 0.3 N-m)

4-2. Panel Mounting

Mount on a flat surface with a panel thickness of 1 mm to 3.5 mm for proper clamping. (Refer to the

"Panel-mount Dimension drawing")

Rotate the front cover counter-clockwise 45 degrees, then loosen and remove the mounting screws.

Check that the mounting bracket is in position (A) before inserting the product from the front, and

secure it with the mounting screws, clamping the mounting nut to the rear of the mounting surface.
(Recommended torque: 0.3 N-m)

Check that the product has been properly clamped before placing the front cover back on.

Attach the front cover so that the
arrow is alligned as indicated.

Panel Mounting Dimension Diagram

Conforms to IEC-61554 (DIN-43700)

�68 mm

+0.7

-0

4-3. Wall Mounting

Mount on a flat surface with a panel thickness of 1 mm to 3.5 mm for proper clamping. (Refer to the

"Panel-mount Dimension drawing")

Rotate the front cover counter-clockwise 45 degrees, then loosen and remove the mounting screws

and O-rings.

Allign the front cover with the hole positions, inserting the product from the front; insert the mounting

screws from the back panel and tighten. (Recommended torque: 0.3 N-m)

Ensure the product is properly installed before installing the front cover.

5. Wiring

When wiring to external contacts for the signal line, use non-voltage contacts such as a relay,
switch or an NPN (PNP type also available) open collector circuit. Refer to table 1 below for contact
capacity.

Wiring Example

BSV-24N(NPN Transistor Type)

Non-voltage Contact Circuit

NPN Transistor Circuit

Do not short Power(+) to the CH line. Failure do to so will result in damage to the product.

Fuse

Power (+) White

Power (-) Black

CH1 Sky Blue

CH2 Yellow

CH3 Peach

CH4 Light Green

Fuse

Power (+)

Power (-)

CH1

CH2

CH3

CH4

Wiring Example

BSV-24P(PNP Transistor Type)

Voltage Contact Circuit

PNP

Transistor Circuit

Do not short Power(-) to the CH line. Failure do to so will result in damage to the product.

Fuse

Power (+) White

Power (-) Black

CH1 Sky Blue

CH2 Yellow

CH3 Peach

CH4 Light Green

Fuse

Power (+)

Power (-)

CH1

CH2

CH3

CH4

5mm

Sleeve

19.9

7

□75

Despite the cautions and warnings provided in this manual, it is not the responsibility of PATLITE for

any failure or damage occured from mishandling.

Due to changes, improvements, etc., the contents of this manual may change without advance notice.

【Outer Appearance】

Front Cover

Installation Bracket

Air Vents

SD Card Slot

Front Cover Exploded View

Cover Locking

Hole

Power/ Signal Wiring

500

Volume

Mounting Screw

O-ring

Accessory: M3X6 Tapping Screw

(Cover Locking Screw)

Recorded Messages

M: Pre-recorded Messages
Blank: None (15 built-in Alarms)

Rated Voltage

24: DC 12 ~ 24 V

(100)

Open

Mounting Screw

Volume

[mm]

Wall Mounting Dimension Diagram

(Product Front View)

�57.5

±0.2

2-�3.5

[mm]

Installation Surface

Tighten (B)

Loosen (A)

Section

C

Loosen (A)

Tighten (B)

Section C Rear View

71.5

67.6

AWG #22 UL1007

Cover Locking

Hole

Cover Locking Screw

(mm)

6. Directions for Operation

The following corresponds to the factory settings of this product according to the model and message registration contents at
the time of order.

The following applies to Model BSV-24□M-□

The factory setting is set for the “Bit Input”, and “Hold Playback” mode when registration data is loaded into the internal memory.

When message registration is up to four (4) messages:

The factory setting is set for “Bit Input” and “Normal Playback” mode when registration data is loaded into the internal memory.

When message registration is for five (5) messages and above:

The factory setting is set for “Binary Input” and “Normal Playback” mode when registration data is loaded into the internal
memory.

The MP3 data will play back properly when the proper transistor, bit/binary input with the signal input are integrated.

Rated Voltage

Table 2. Recommended Fuse

Rated Current

250V

0.25A

Standard Fusion

Slow-blow

Inrush Current

Table 3. Inrush Current Ratings

17A

Current Capacity

Table 1. Signal Contact Capacity

Withstanding Voltage

15mA or more

DC35V or more

Leakage Current

“ON” Voltage(V

sat

)

0.1mA or less

1V or less

- Caution on copyright -

Work that was recorded or copied from music CDs or other media used in public

places may infringe upon copyrights and law enforcement may be imposed.

When using a work that was recorded or copied from music CDs or other media, be

sure to obtain permission from the author.

In addition, copyright of audio/music data distributed or sold by PATLITE Corporation

belongs to PATLITE.

It is strictly prohibited to copy/reprint whole or partial contents of audio/music data

belonging to PATLITE Corporation, or to transfer/sell such material on computer

networks etc., without permission of the rightful holder.

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undersired operation.

NOTE

Warning

Caution

Indicates an imminently dangerous condition : failure to follow the instructions may
lead to death or serious injury.

Indicates a potentially dangerous condition: failure to follow the instructions may
lead to slight injury or property damage.

Indicates something to observe before using this product. The disregard to this
indication may lead to product malfunction or failure.

Notice regarding supplementary information or convenient explanation is
indicated.

PLEASE

NOTE

Be sure the power is disconnected before wiring or installing this product. Possibility of electric shock

may occur.

Do not disassemble or modify this product. Possibility of fire or electric shock may occur. If repair is

needed, refer to [8. Before Requesting Repair]. For questions concerning our product or for when
repair is necessary, refer to the end of this document for contacting your nearest PATLITE Sales
Representative.

Be careful not to miswire this product. Possible miswiring can cause product failure or fire.

Be sure to stay within the operating voltage range. Possibility of fire, failure or malfunction may occur.

Request the installation and wiring be performed by a professional contractor. Otherwise, there is the

possibility that fire, electric shock or falling from high places may result.

To protect the power supply and other internal circuitry, be sure to connect an external fuse.

Do not install the product in a location where vibrations exceeding the specifications exist. If installing

where vibrations do exist, install the product in the upright position to prevent the risk of product
detaching and it falling, causing injury to a passer-by, etc.

WARNING

CAUTION

Contrary to Warnings and Cautions indicated in this document, product failure due to mishandling,
dissasembly, modifications or natural disasters, etc. is not covered by any Warranty. Moreover,
avoid any applications outside those indicated in this document.

Do not use in an environment exposing strong radio waves or inductance noise. Noise may be

induced from the speaker horn causing malfunction or failure.

Do not use in an environment where corrosive gas is present. Possible cause of failure may occur.

To prevent damage from static electricity, touch hands or other body parts to metals or an earth

ground to discharge the body from static charge before handling static sensitive parts, such as the
SD Card.

Use the recommended torque when attaching parts for installation, etc.

When this product is used for security purposes, it should be inspected daily. In case a malfunction

should occur, it is recommended that you use this product together with other security products.

Do not misplace parts, such as the terminal cover or front plate, while perfoming maintenance or

repair of the product to prevent possible damage.

PLEASE

Request the installation and wiring be performed by a professional contractor. Otherwise,

there is the possibility that fire, electric shock or falling from high places may result.

WARNING

PLEASE

CAUTION

WARNING

Ensure the wiring is correct before connecting the power source. Miswiring may result in

product damage.

Be sure the power is disconnected before installing this product. Failure to comply may result in electric shock.

Ensure the installation surface is sufficient enough to handle the weight of the product, and

where there is less vibration. Also, do not install onto a vehicle. Failure to comply will lead to

injury or damage to the product.

Use two screws when installing and tighten with the recommended torque. Failure to comply

may result in product failure due to falling or over-torquing.

Do not apply a heavy load to the wires. Failure to comply may result in damage due to an electric short.

Do not turn the front cover more than 45

o

. Failure to comply may result in product damage.

Install the product on a flat surface with no uneven surfaces. Failure to comply will weaken its

resistance to water and dust.

If installing the product where vibrations exist, it is recommended to make periodic inspections

to ensure the mounting screws are properly tightened.

When installing in high places, choose a location which is accessible by a scaffold, ladder, etc., for repairs.

When operating the product by controlling the power ON/OFF, be sure to include a switch by

which the power supply can be easily cut near the main power for safety.

Do not block any air vents when installing this product.

Applying thread locking adhesive to the Cover locking screw may result in damage to the product.

NOTE

NOTE

CAUTION

Be sure the power is disconnected before installing this product. Failure to comply may result in electric shock.

Do not strongly pull or tug at the wires. Failure to comply may result in damage or failure to the product.

Even when starting two or more unitis simultaneously, a lag will occur during message playback.

To protect the power supply and other internal circuitry, be sure to connect an external fuse.

Be sure to check for proper wiring before connecting the power.

To countermeasure against interference noise, make wiring as short as possible and use shielded wires

whenever possible. In addition, separate any signal lines which pass along high voltage cables or is
susceptible to receive induction noises. Interference may influence signal inputs and cause product
malfunction.

If a non-voltage contact, such as a relay or switch etc., is used for the power supply line, consider inrush

current capacity when selecting the contact. If the capacity is insufficient, it will cause pitting or welding of the
contacts, causing malfunction.

PLEASE

(*1) Test Conditions: DC24V, Max. Vol., Ch 1 to 4 on, 1kHz sine wave at -1dB

(*2) Test Conditions: Placed on a 300mm2 base at a distance of 1 meter with a 1kHz sine wave at a -6dB input.

※ Sound level of message will vary with the surrounding environment.

(*3) Values in brackets indicate available channels when sound reduction function is used

6. Specifications

Items
Rated Voltage
Voltage Range
Power Consumption
Sound Pressure Level

Volume Control

Number of Playback Messages

Initial Registered Data

Audio File
Bit Rate
Maximum Playback Time
Internal Memory Size
Playback Startup Time

File Format

Operating Temperature Range
Storage Temperature Range
Relative Humidity

Mounting Direction

Protection Rating

Insulation Resistance
Withstanding Voltage
Vibration Resistance
Mass (±

10%)

Specifications
DC 12 to 24V

DC 10.8 to 26.4V

Max. 3.5W

(*1)

87dB or less: (For Panel Mount) / 85dB or less: (For Wall Mount)

(*2)

Volume Adjustable

Sound Reduction Function: -1dB to -50dB range possible from the CH4 input

Bit Input: 5 (4) / Binary Input: 31 (7)

(*3)

The following alarm data is loaded when no set messages are ordered

MPEG1 Audio Layer III (MP3)

32kbit/s, 64kbit/s, (Standard Rate)

Maximum Playback Time: 63sec (at Standard Bit Rate)

508kB (MP3 data total)

No less than 300ms (Bootup for Signal Input and Power Input Conditions)

SD Card Format: FAT16

Recommended SD Card: SDV-128 (Sold Separate)

-10

o

C to +50

o

C

-20

o

C to +60

o

C

85% RH or less (No Condensation)

More than 1MΩ at 500V DC between the terminals and chassis

500VAC applied for 1 minute between terminals and chassis without breaking insulation

70m/s

2

at 30Hz in the X, Y and Z directions for 2 hours each

100g

No. 1 Chime

No. 2 Beep

No. 3 Stutter

No. 4 Bell

No. 5 Yelp

No. 6 Rapid Hi Lo

No. 7 Melody Chime No. 8 Synthesized Piano No. 9 Synthesized Bell No. 10 Stutter + Bell

No. 11 Synthesized Melody No. 12 Call Sign

No. 13 Inverted Reveille No. 14 Galactic Motor No. 15 Two Tone

Panel Mount Indoors: Upright, Sideways, Inverted / Outdoors: Upright Only
Wall Mount Indoors: Upright, Sideways, Inverted / Outdoors: None (Indoor Use Only)
Panel Mount

IP54 (Upright Direction Only)

Wall Mount

IP20

SD Card

Model:SDV-128P

(Sold Separately)

Patlite Corporation is a member of

the SD Card Association.

'11.1.AUTO

4263-B

V95100136

4263-B
