5.2 Wall-mounting kit
An installation in close proximity to the motor is possible for all motor starters SK 1xxE, i.e., the control
electronics with its terminal box is mounted in the immediate vicinity of the drive and is not attached directly to
the motor. The optional "Wall-mounting kit" is required for this and contains the pertaining mounting plate for
the respective SK 1xxE. This type of installation may be advantageous, e.g., for easier accessibility or quicker
replacement.
Wall-mounting kit
Type:
SK WMK-DA1
( Mat. No. 275115100 )
125 mm
160 mm
126 mm
155 mm
50 mm
Æ

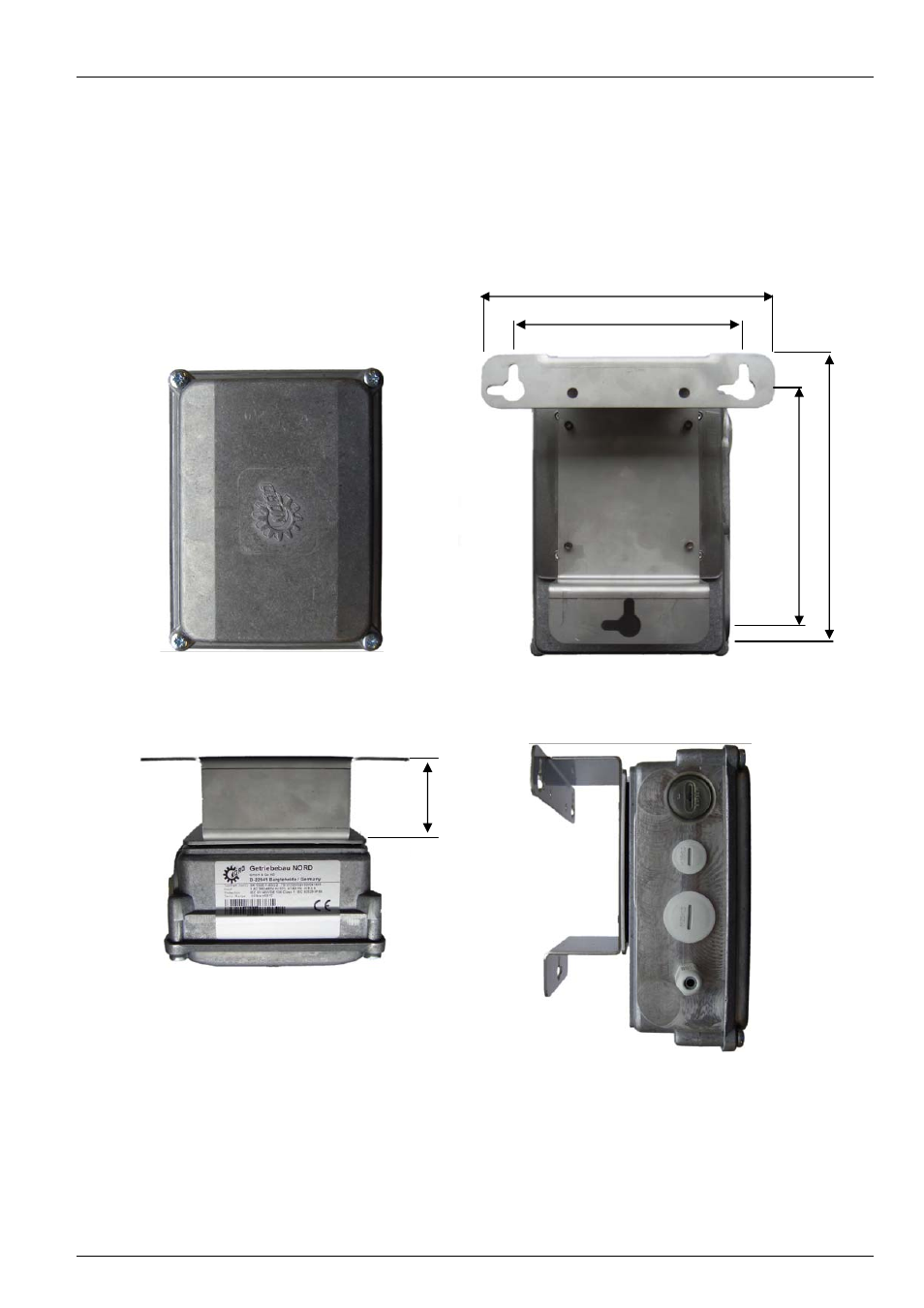

Illustrated example with SK 150E / SK 160E
