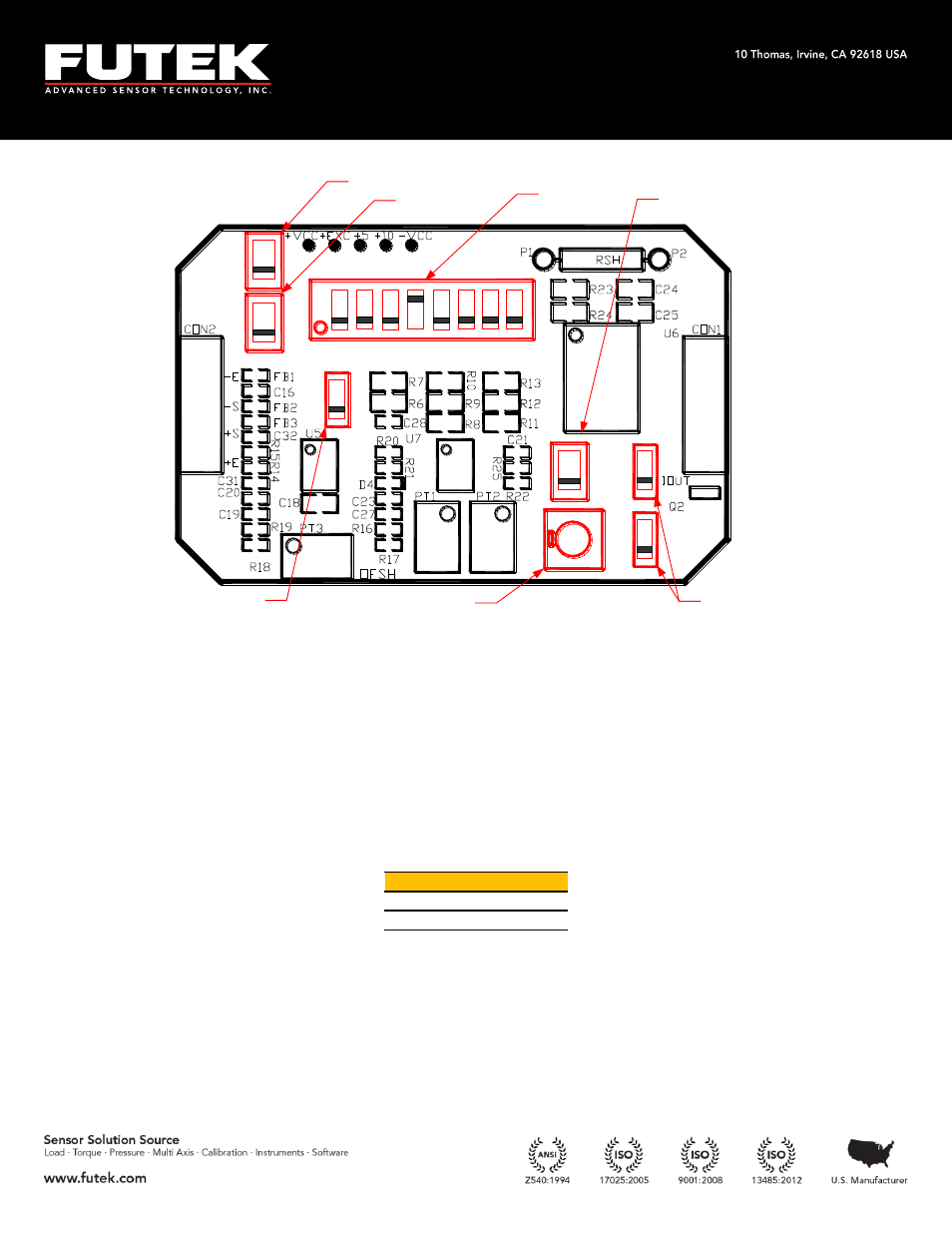

shunt
excitation
polarity
bandwidth
gain
SW1
SW2
SW4
SW5
current setting
SW8
SW6
current input range
SW7
SW3
Excitation
There are two excitation values available on the CSG110: 10 VDC (default), and 5 VDC.
To select the excitation, simply flip the DIP switch to the appropriate configuration.
The excitation voltage controls the maximum output of the amplifier.
Ex. If your application requires a lower output voltage than 10 VDC, then the 5 VDC
option is available to use. All you have to do is flip the DIP switch from the down
position to the up position.
UP 5
DOWN 10
SW1: Excitation (VD C)
Polarity
There are two polarities available on the CSG110: reverse, and straight (default). To
select the polarity, simply flip the DIP switch to the appropriate configuration.
