Dwyer MPC User Manual
Page 32
Menu
Item Default
Set
At
Description
AL1
Hi
Alarm 1 Function (selectable off, lo, hi, hilo, sf, ot, or sfot)
A1t
Alarm Type 1 (selectable abs (absolute)
or de (deviation))
A1rE
OnOf
Alarm 1 Reset (selectable onof (auto)
or hold (manual))
A1
Pi
Alarm 1 Power Interrupt (selectable on or off)
A1iH
OFF
Alarm 1 Inhibit (selectable on or off)
A1St
CLOS
Alarm 1 Output State (selectable close
or open)
A1LP
O on
Alarm 1 Lamp condition when contact
is closed (selectable on or off)
Secure
A1td
OFF
Alarm 1 Time Delay (selectable off or 1
to 8000 seconds)
AL2
Lo
Alarm 2 function ( selectable off, lo, hi, hilo, sf, ot, or sfot)
A2t
AbS
Alarm 2 Type (selectable abs (absolute)
or de (deviation))
A2rE
OnOf
Alarm 2 Reset (selectable onof (auto) or
hold (manual))
A2Pi
OFF
Alarm 2 Power Interrupt (selectable on or off)
A2iH
OFF
Alarm 2 Inhibit (selectable on or off)
A2St
CLOS
Alarm 2 Output State (selectable close or open)
A2LP
O on
Alarm 2 Lamp condition when contact is
closed (selectable on or off)
A2td
OFF
Alarm 2 Time Delay (selectable Off or 1 to
8000 seconds)
Filt
3
Digital Filter
POH 23.1
Process Output High (default is in feet)
POL
0.0
Process Output Low (default is in feet)

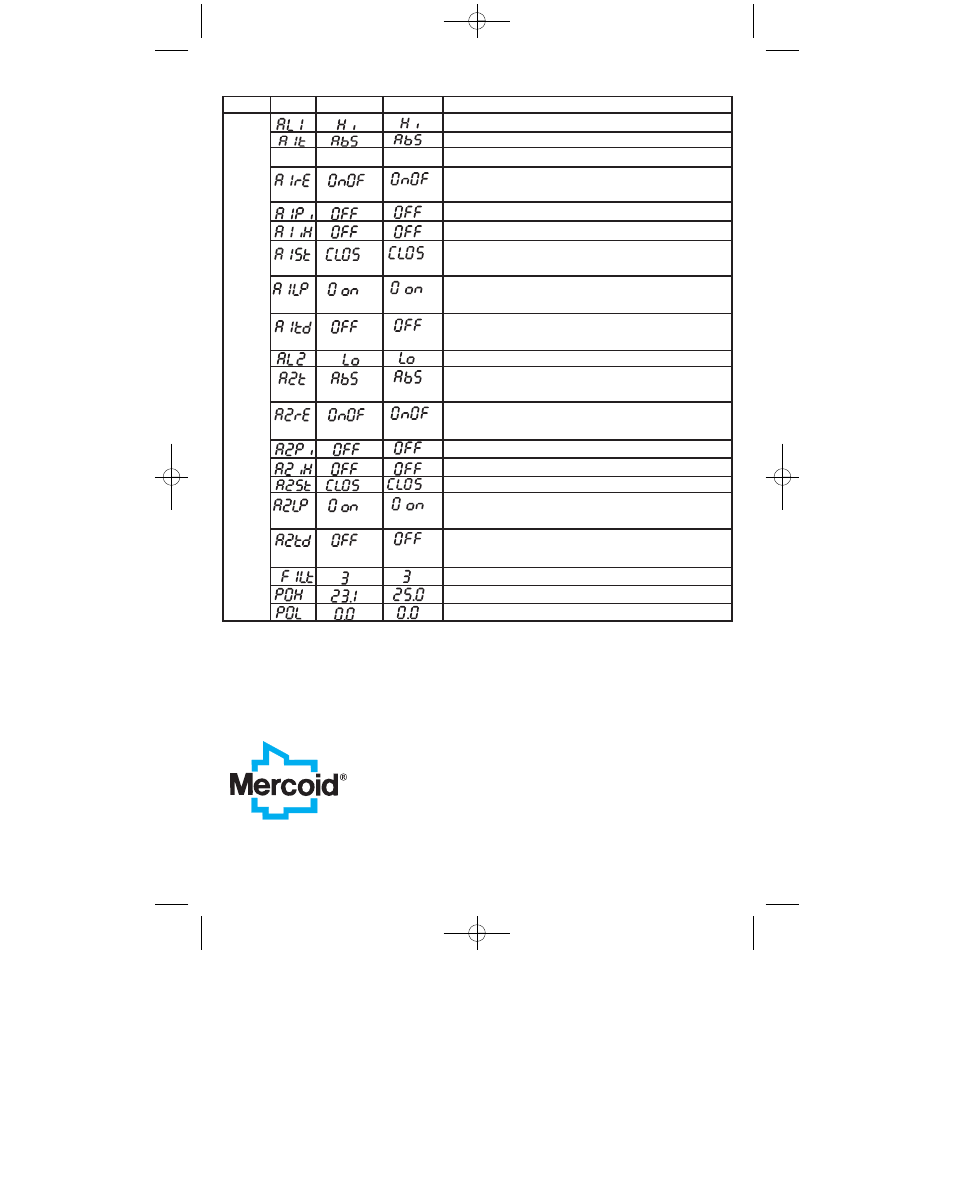

EXAMPLE PROGRAMMING CHART continued
