Dwyer MPC - Manual (Page 28)

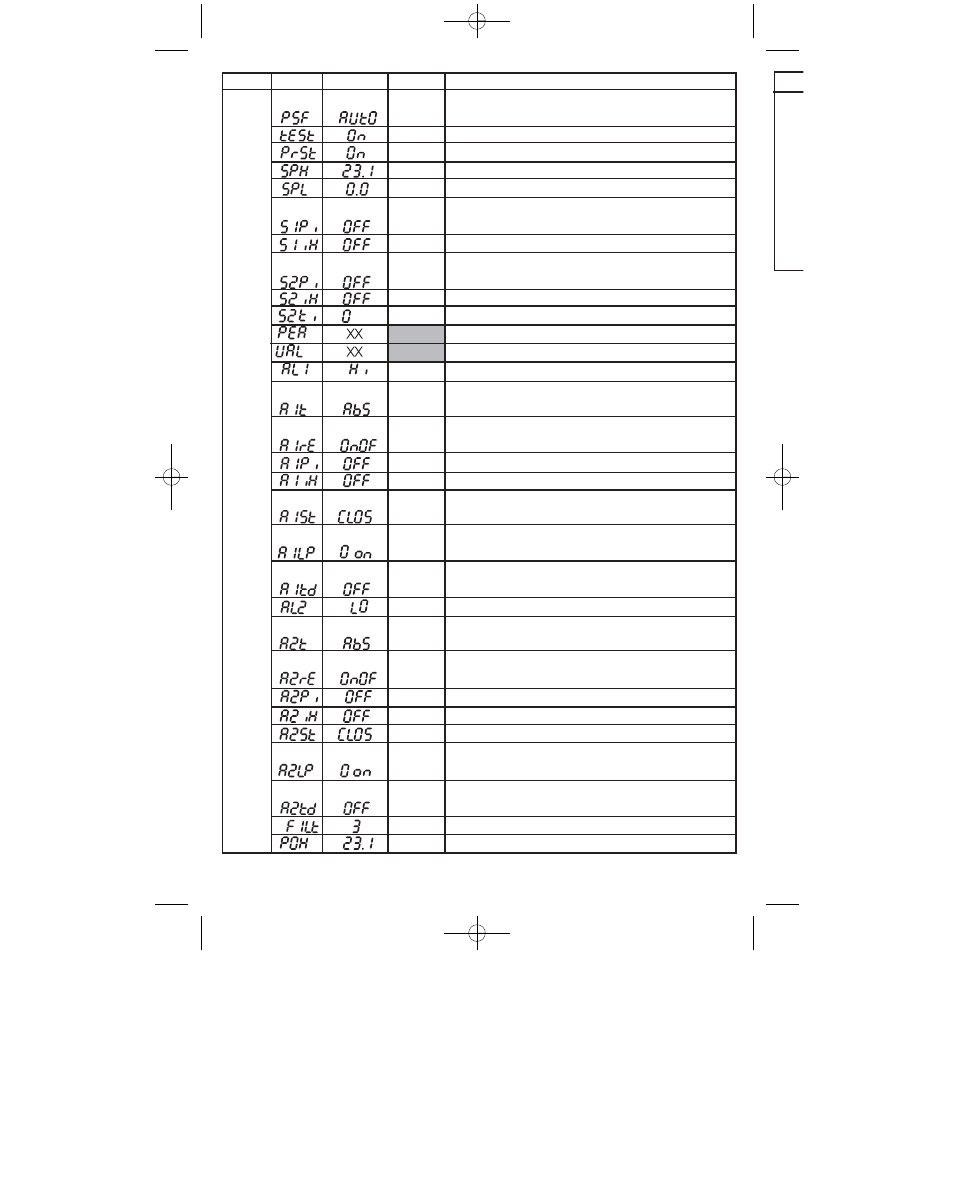

Menu Item Default Set At Description
PSF AUtO Pump Seal Failure controller action
(selectable automatic or manual reset)
TESt On System Test (Selectable on or off)
PrSt On Pump Run Time Rest (Selectable on or off)
SPH 23.1 Set Point High value (default is in feet)
SPL 0.0 Set Point Low value (default is in feet)
S1PI OFF Set Point 1 Power Interrupt
(selectable on or off)
S1IH OFF Set Point 1 Inhibit (selectable on or off)
S2PI OFF Set Point 2 Power Interrupt
(selectable on or off)
Set Point 2 Inhibit (selectable on or off)
Setpoint 2 (selectable 0 to 60) Time Delay
Peak, highest input value seen since last reset
Valley, lowest input value seen since last reset
Alarm 1 Function (selectable off, lo, hi, hilo, sf, ot, or sfot)
Alarm Type 1 (selectable abs (absolute)
or de (deviation))
A1rE OnOf Alarm 1 Reset (selectable onof (auto)
or hold (manual))
Secure A1Pi OFF Alarm 1 Power Interrupt (selectable on or off)
A1iH OFF Alarm 1 Inhibit (selectable on or off)
A1St CLOS Alarm 1 Output State (selectable close
or open)
A1LP O On Alarm 1 Lamp condition when contact
is closed (selectable on or off)
A1td OFF Alarm 1 Time Delay (selectable off or 1
to 8000 seconds)
AL2 Lo Alarm 2 function ( selectable off, lo, hi, hilo, sf, ot, or sfot)
A2t AbS Alarm 2 Type (selectable abs (absolute)
or de (deviation))
A2rE OnOf Alarm 2 Reset (selectable onof (auto) or
hold (manual))
A2Pi OFF Alarm 2 Power Interrupt (selectable on or off)
A2iH OFF Alarm 2 Inhibit (selectable on or off)
A2St CLOS Alarm 2 Output State (selectable close or open)
A2LP O On Alarm 2 Lamp condition when contact is
closed (selectable on or off)
A2td OFF Alarm 2 Time Delay (selectable Off or 1 to
8000 seconds)
Filt 3 Digital Filter
POH 23.1 Process Output High (default is in feet)
