Connecting and tightening the Fittings
CAUTION:
DO NOT over tighten the fittings into the sensor
body. Excessive force may damage the sensor body. This type of
damage will NOT be repaired under warranty.
The flow direction for the unit is clearly marked on the label. Do not reverse
the flow direction or the unit will not function.

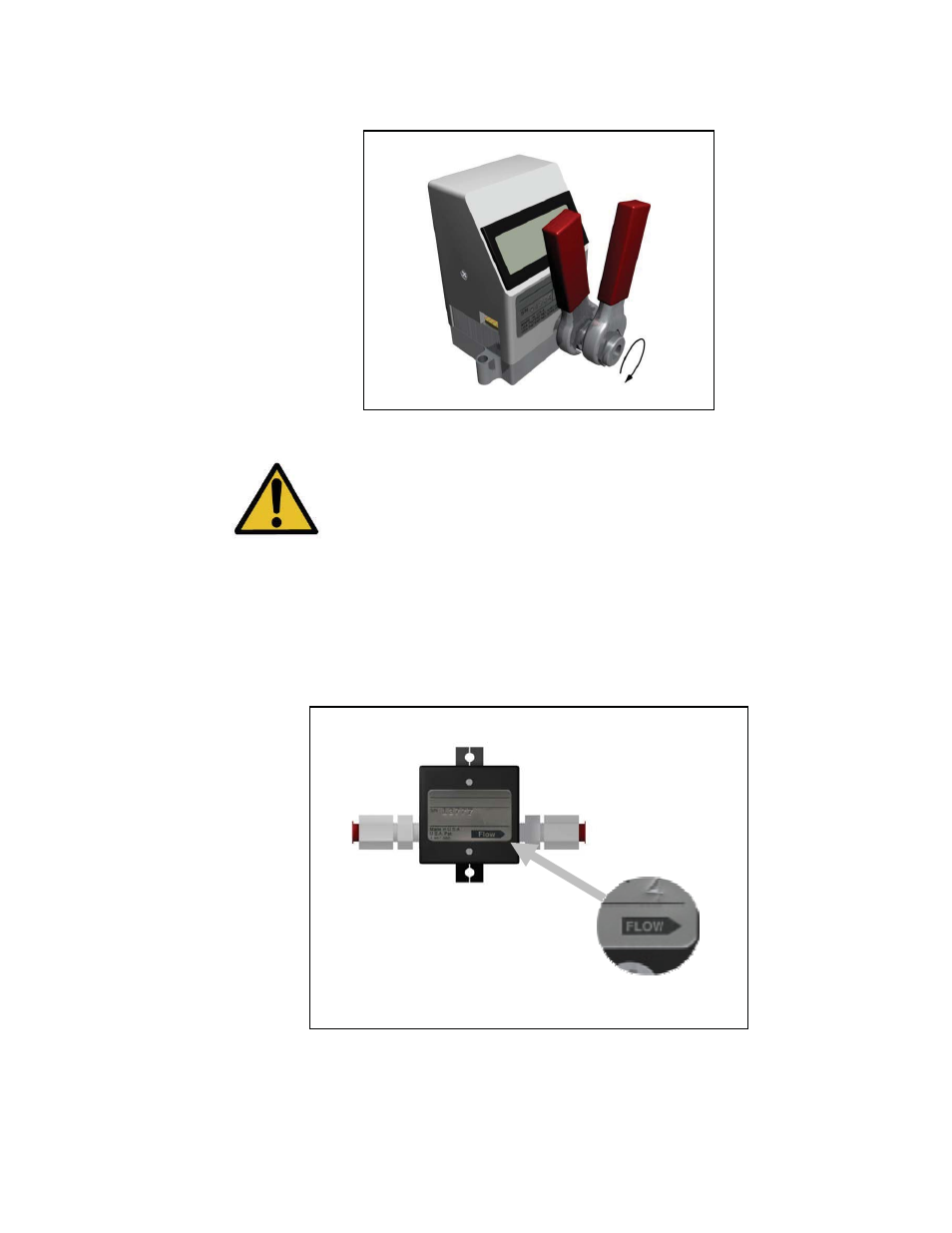

Close Up of Label Showing Flow Directions
(All models similar)
The tubing ID should be as large as possible to avoid restrictions and
turbulence. For the best results, a straight length of tubing before the unit is
recommended. This should be 20 times the tubing I.D. or greater.
