Overview  4
T-600 Series Pump Operation Manual
Parts Included with Pump Systems for Crystal Reference Indicators
System C System H
CXX
(T-620)
CHX
(T-620H)
HOX
(T-620H and T-975) Part Number Description
5238 3/8" BSP Male to CPF Male Fitting „
5252 5/16-24 SAE Male to CPF Female Fitting „
MPF-1/4FPT CPF Female to 1/4" NPT Female Fitting „ „ „ ( 2 )
MPF-1/4BSPF CPF Female to 1/4" BSP Female Fitting „ „ „ ( 2 )
MPF-1/8MPT * CPF Female to 1/8" NPT Male Fitting „ „ „
MPM-PLUG CPF Male Plug Fitting „ „ „
MPF-CAP CPF Female Cap Fitting „ „ „
MPH-1 1 meter CPF Male Hose „ „ „ ( 2 )
60R120 1/4" Bonded Seals „ ( 5 ) „ ( 5 ) „ ( 5 )
50-REP700 O-ring and Lock Clip „ ( 5 )
1351 ** Test Leads; Red & Black, including clips „ „ „
5249 Protective Vinyl Cap „ (4 ) „ ( 4 ) „ ( 4 )
60I104 Pack Tape (1 roll) „ „ „
124004 Shoulder Strap „ „
124299 Aluminum Carrying Case (for nVision and 30 Series) „ „
125255 Aluminum Carrying Case (for XP2i and m1) „ „
2888 *** Waterproof Carrying Case   „
* When a Pump System C is ordered for a 30 Series Calibrator, two (2) additional MPF-1/8MPT fittings are included.
** The 1351 Test Leads are included only with Pump Systems for the 30 Series Calibrator.
*** Pump Systems C may be ordered with a Waterproof Carrying Case. By entering -W in the pump system ordering code, the Shoulder Strap and Aluminum Carrying Case will be replaced by the Waterproof Carrying Case. See Ordering a Pump System below.

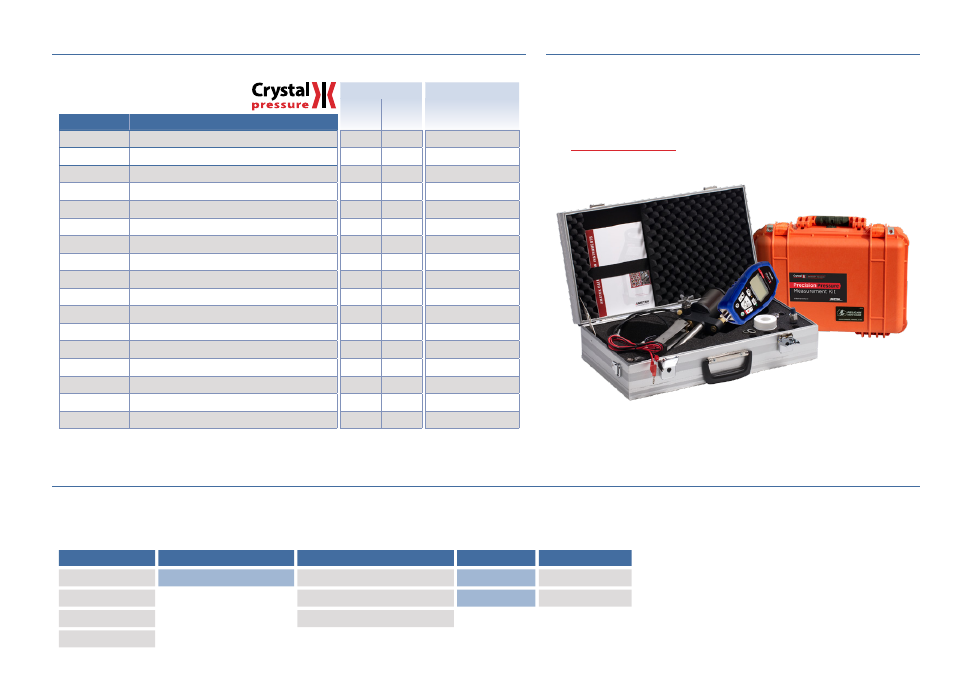

Carrying Case Options
Pump Systems C are delivered with an Aluminum Carrying Case with a pump filled with
hydraulic fluid. Alternately, you may order a Pump System C with a Waterproof Carrying
Case. Waterproof Carrying Cases are only available with drained pumps. So when ordering,
add -E-W to designate a drained pump in a waterproof case.
See
Ordering a Pump System below.
The Waterproof Carrying Case is the only option for Pump System H.
Ordering a Pump System
Any T-600 Series Pump System may be ordered with or without a reference indicator. The table below provides an explanation of the Pump System ordering
scheme when ordering a system without an indicator. For details on ordering the Pump Systems with an indicator, see the indicator datasheet.
Reference Indicator Reference Indicator Included Pump System Liquid Carrying Case
nVision . . . . NV No . . . -NONE System C (T-620) . . . . . . . . . . . . . . . -CXX Full . . . . . . . (omit) Aluminum . . . . (omit)
30 Series . . . IS30 System C (T-620H) . . . . . . . . . . . . . -CHX Drained . . . -E Waterproof . . . -W
XP2i . . . . . . . XP2i System H (T-620H and T-975) . . . -HOX
m1 . . . . . . . . . M1
X SAMPLE PART NUMBERS
IS30-NONE-HOX-E-W . . . System H pump system (for 30 Series) with a water-
proof case and the pump drained of fluid.
NV-NONE-CXX . . . . . . . . . . . . System C pump system (for nVision) with an alum-
inum carrying case and the pump filled with fluid.
15PSIXP2i-CXX-W . . . . . . . System C pump system with an XP2i gauge and a
waterproof carrying case.
