Overview  3
T-600 Series Pump Operation Manual
Parts Included with Pump Systems for JOFRA Reference Indicators
System C
CXX
(T-620)
CHX
(T-620H) Part Number Description
T-786 1/4" NPT Male to 1/4" BSP Female Fitting „ „
127400 * 1/8" BSP Male to 1/4" NPT Male Fitting „ „
127401 * 1/8" BSP Male to 1/4" BSP Female Fitting „ „
127402 * 1/8" Bonded Seals „ „
60R120 1/4" Bonded Seals „ „
T-649 0.61 meter hose, 1/4" NPT Female connection „ „
104203 * Test Leads; Red & Black, including clips „ „
60I104 Pack Tape (1 roll) „ „
124004 Shoulder Strap „ „
124299 Aluminum Carrying Case „ „
2888 ** Waterproof Carrying Case  
* Included with HPC.
** Pump Systems C may be ordered with a Waterproof Carrying Case. By entering -W in the pump system
ordering code, the Shoulder Strap and Aluminum Carrying Case will be replaced by the Waterproof Carrying
Case. See Ordering a Pump System below.

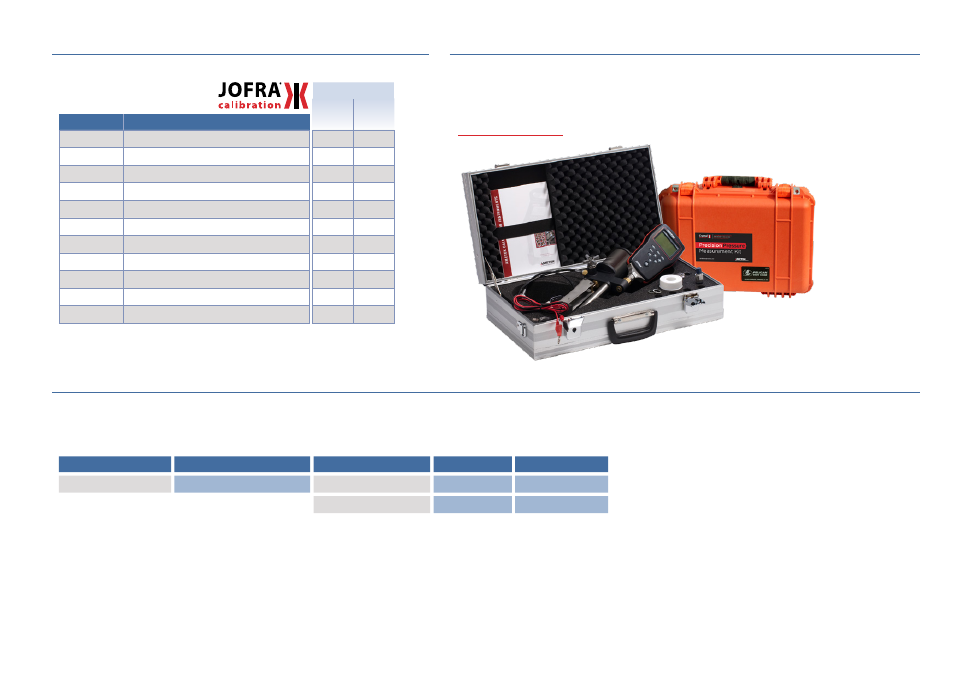

Carrying Case Options
Pump Systems C are delivered with an Aluminum Carrying Case with a pump filled with hydraulic fluid. Al-
ternately, you may order a Pump System C with a Waterproof Carrying Case. Waterproof Carrying Cases are only
available with drained pumps. So when ordering, add -E-W to designate a drained pump in a waterproof case. See
Ordering a Pump System below.
Ordering a Pump System
Any T-600 Series Pump System may be ordered with or without a reference indicator. The table below provides an explanation of the Pump System ordering
scheme when ordering a system without an indicator. For details on ordering the Pump Systems with an indicator, see the indicator datasheet.
Reference Indicator Reference Indicator Included Pump System Liquid Carrying Case
HPC500 Series . . . HPC500 No . . . -NONE System C (T-620) . . . . . -CXX Full . . . . . . . (omit) Aluminum . . . . (omit)
System C (T-620H) . . . -CHX Drained . . . -E Waterproof . . . -W
X SAMPLE PART NUMBERS
HPC-NONE-CXX . . . . . . . . . . . . . . System C pump system (for HPC500) with an
aluminum carrying case.
HPC-NONE-CHX-E-W . . . . . . . System C pump system (for HPC500) with a water
proof carrying case and the pump drained of fluid.
HPC500-035G-CXX . . . . . . . . . . System C with a HPC500 calibrator -0.82 to 35 bar in
an aluminum case.
