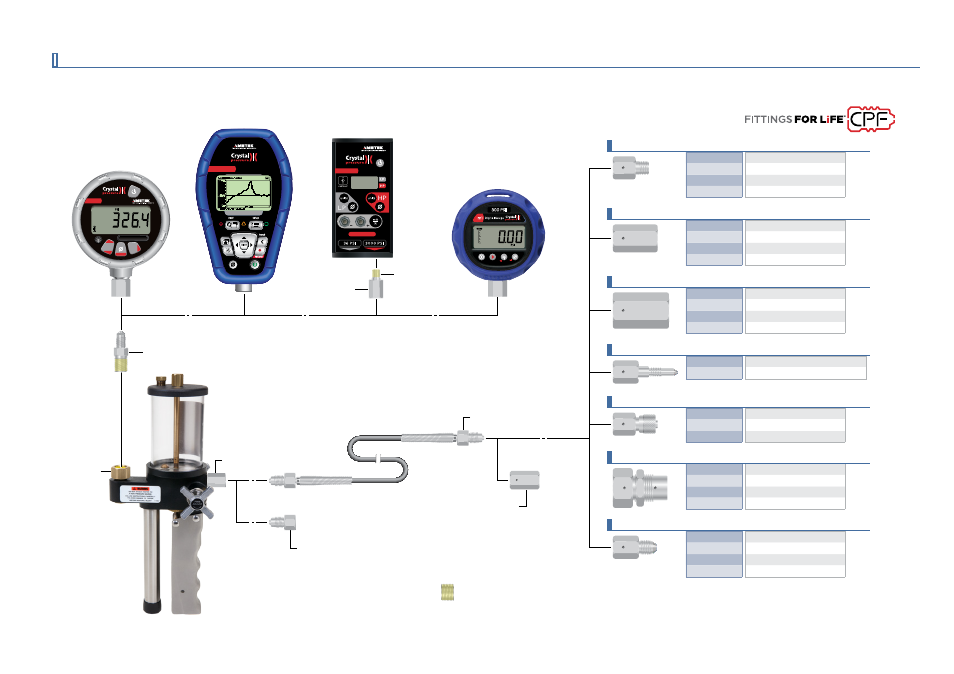

Connection Diagrams  9
T-600 Series Pump Operation Manual
„„„„ „ CRYSTAL REFERENCE INDICATORS
MPF-1/4FPT *
MPH-1 *
MPF-1/8MPT *
MPF-1/8QTM 1/8" Quick Test NPT Male
MPF-1/8MPT 1/8" NPT Male
MPF-1/4QTM 1/4" Quick Test NPT Male
MPF-1/4MPT 1/4" NPT Male
MPF-1/8QTF 1/8" Quick Test NPT Female
MPF-1/4QTF 1/4" Quick Test NPT Female
MPF-1/4FPT * 1/4" NPT Female
MPF-1/2QTF 1/2" Quick Test NPT Female
MPF-1/8BSPF G 1/8" Female
MPF-1/4BSPF G 1/4" Female
MPF-3/8BSPF G 3/8" Female
MPF-1/2BSPF G 1/2" Female
MPF-MPF Female to Female
MPF-MPFTU T-Union (Female)
MPF-MPFBULK Bulkhead (Female to Female)
MPF-CAP Cap
MPF-M20QTF M20 x 1.5 Quick Test Female
MPF-M20X1.5F M20 x 1.5 Female
MPF-QCN Quick-Connect Nut
MPF-AN4M AN4 Male
MPF-1/4TBM 1/4" Tube Male
MPF-3/8TBM 3/8" Tube Male
MPF-1/2TBM 1/2" Tube Male
MPF-5/16TRM for Foxboro, Rosemount, & Yokogawa
MPF-1/4TRM for Honeywell
NPT MALE
NPT FEMALE
BSP
CPF
ADDITIONAL
TUBE
TRANSMITTER
Additional NPT sizes available in non-CPF MP adapters
Additional NPT sizes available in non-CPF MP adapters
Denotes areas where thread-sealing tape is required.
* These parts are included with the T-620H-CPF pump.
Additional parts are supplied as part of a pump system,
or may be ordered separately.
MPM-PLUG *
1/4" FNPT *
3000 PSI
XP2i Digital Test Gauge
Hi
Lo
peak
clear
zero
units
MPM-1/4MPT
Intrinsically Safe
nVision Reference Recorder
MPF-1/8MPT
Thread tape
required here.
clr
enter next setup
300 PSI
Intrinsically Safe
30 Series Pressure Calibrator
