Overview  2
T-600 Series Pump Operation Manual
„„„„ „ FEATURES AND PARTS LISTS
The T-600 series hand pumps feature a 0.5 pint/20 cl built-in oil reservoir, vent valve and fine adjust knob. The pump has two pressure ports – one for the
device under test and one for the reference indicator.
Parts Included with Pump (T-620 and T-620H)
X Reference Pressure Port (1/4" NPT Female, swivel)
No additional fittings are included for the Reference Pressure Port.
X Device Under Test Pressure Port
Part Number Description
T-649 0.61 meter hose with 1/4" NPT Female connector
T-786 1/4" NPT Male x 1/4" BSP Female adapter
Parts Included with Pump (T-620H-CPF)
X Reference Pressure Port (1/4" NPT Female, swivel)
No additional fittings are included for the Reference Pressure Port.
X Device Under Test Pressure Port
Part Number Description
MPF-1/4FPT 1/4" NPT Female to CPF Female
MPM-PLUG CPF Plug
MPH-1 1.0 meter CPF Hose

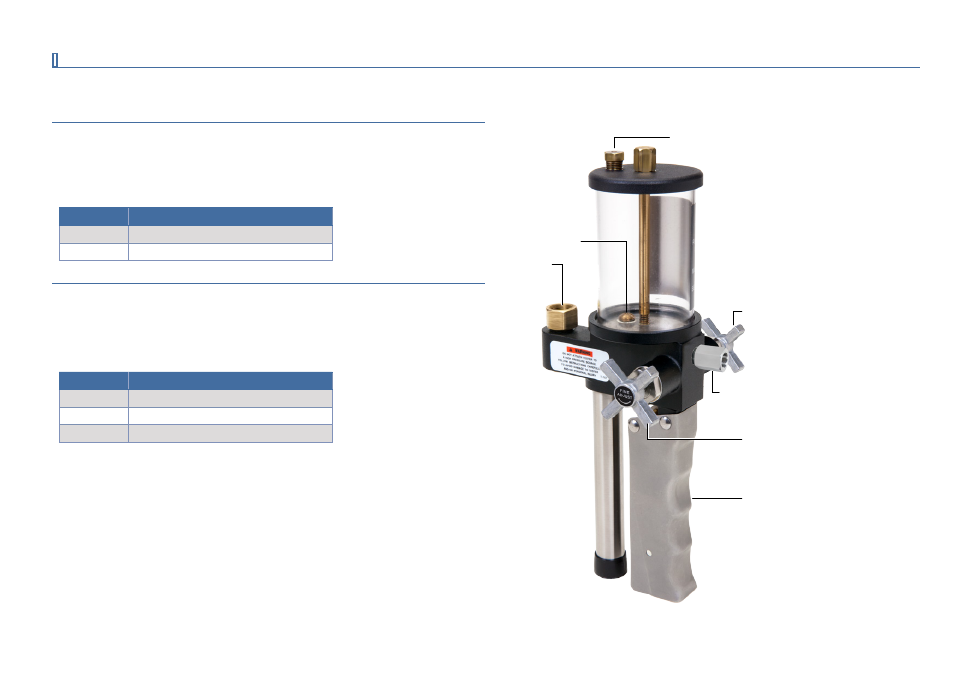

Fill Plug
Reference
Pressure
Port
Check Valve
Pressure Vent Valve
Fine Adjustment Knob
Moveable Handle
Device Under Test Pressure Port
T-620H-CPF
