6
For Replacement Parts or Technical Assistance,
Call 1-888-636-6628
Please provide following information: Address any correspondence to:
- Model number Blue Angel Pumps
- Serial number (if any) 101 Production Drive
- Part description and number as shown in parts list Harrison, OH 45030 U.S.A.
www.blueangelpumps.com
Operating Instructions and Parts Manual

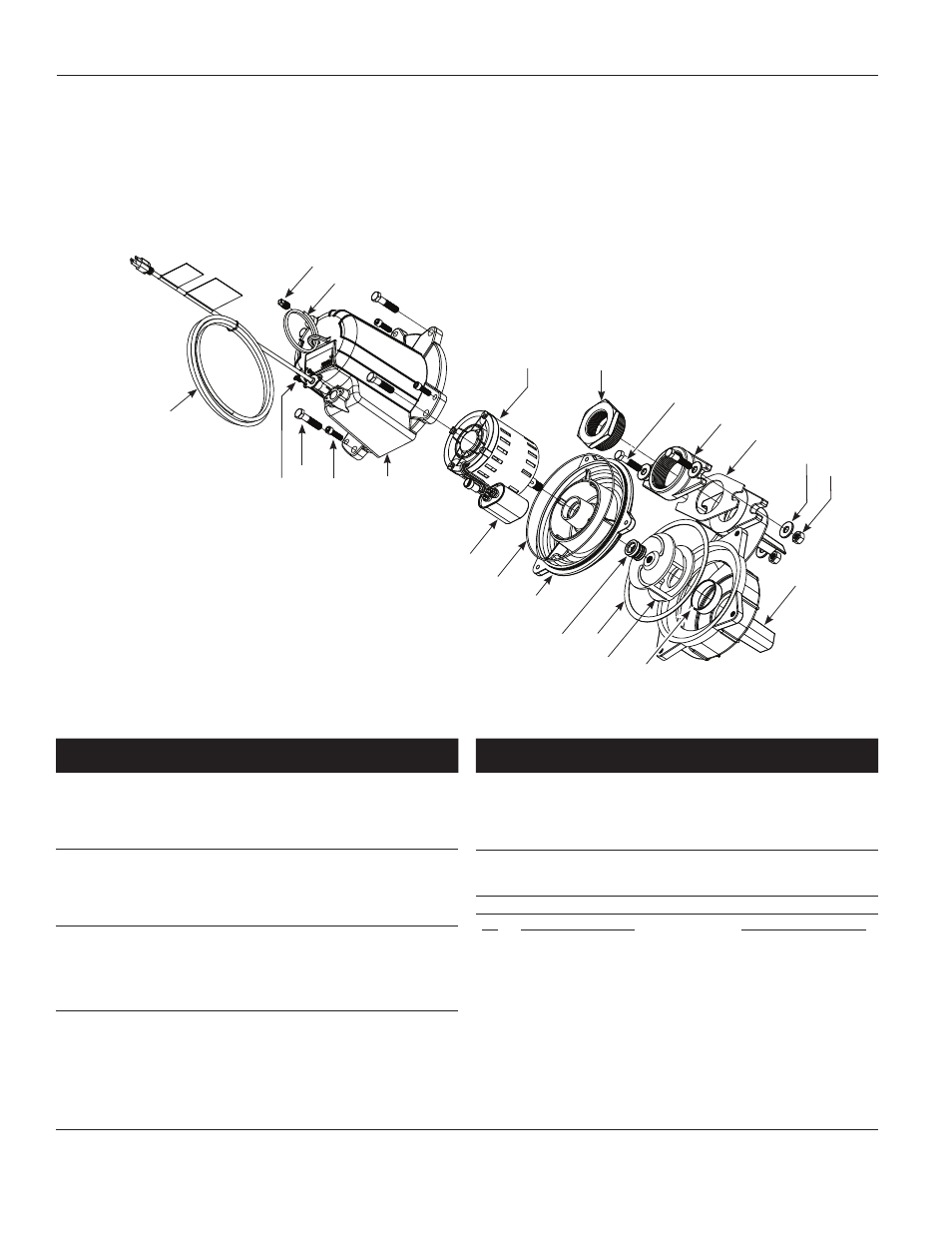

Ref.
No.
Description Part Number Qty
1 Pipe plug 1/4 in. NPT 16314 1
2 Lifting eye 23124 1
3 Motor SEE CHART 1
4 Reducer bushing 3 in. NPT - 2 in. NPT 17436-001 1
5 1/2 - 13 UNC x 2 1/4 Hex head 16636 2
6 Discharge flange 3 in. 23100 1
7 3 in. Discharge gasket 23102 1
8 Washer 16635 4
9 1/2 - 13 UNC Hex nut 16637 2
10 Volute 56603 1
11 Volute wear ring 23112 1
12 Impeller SEE CHART 1
13 Volute gasket 16735 1
14 Shaft seal kit 56884-002 1
15 Seal plate 56604 1
16 Cover gasket 16855 1
17 Capacitor
3/4 HP to 2 HP
1/2 HP only
23126
23126-002 1
1
18 Motor housing 41048-001 1
19 3/8 - 16 UNC x 1 1/4 Socket head 16798 3
Ref.
No.
Description Part Number Qty
20 1/2 -13 UNC x 2 1/4 Hex head 16636 4
21 Screw, 10 - 24 x 1/2 67050-001 2
22 Power supply cord
BSE50
BSE75, BSE100 & BSE200
31036-001
31036-002 1
1
23 Locking cable tie (not shown) 17182-003 3
24 Dielectric oil - 1 gallon (not shown) 56435 1
MOTOR / IMPELLER CHART
HP Motor Part Number Impeller Part Number
1/2 3710-004 84341
3/4 3710-005 84342
1 3710-006 84343
2 3710-008 84345
1
2
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18 19
20
21
22
3
