Page 6 Form #4-20-23 11/10

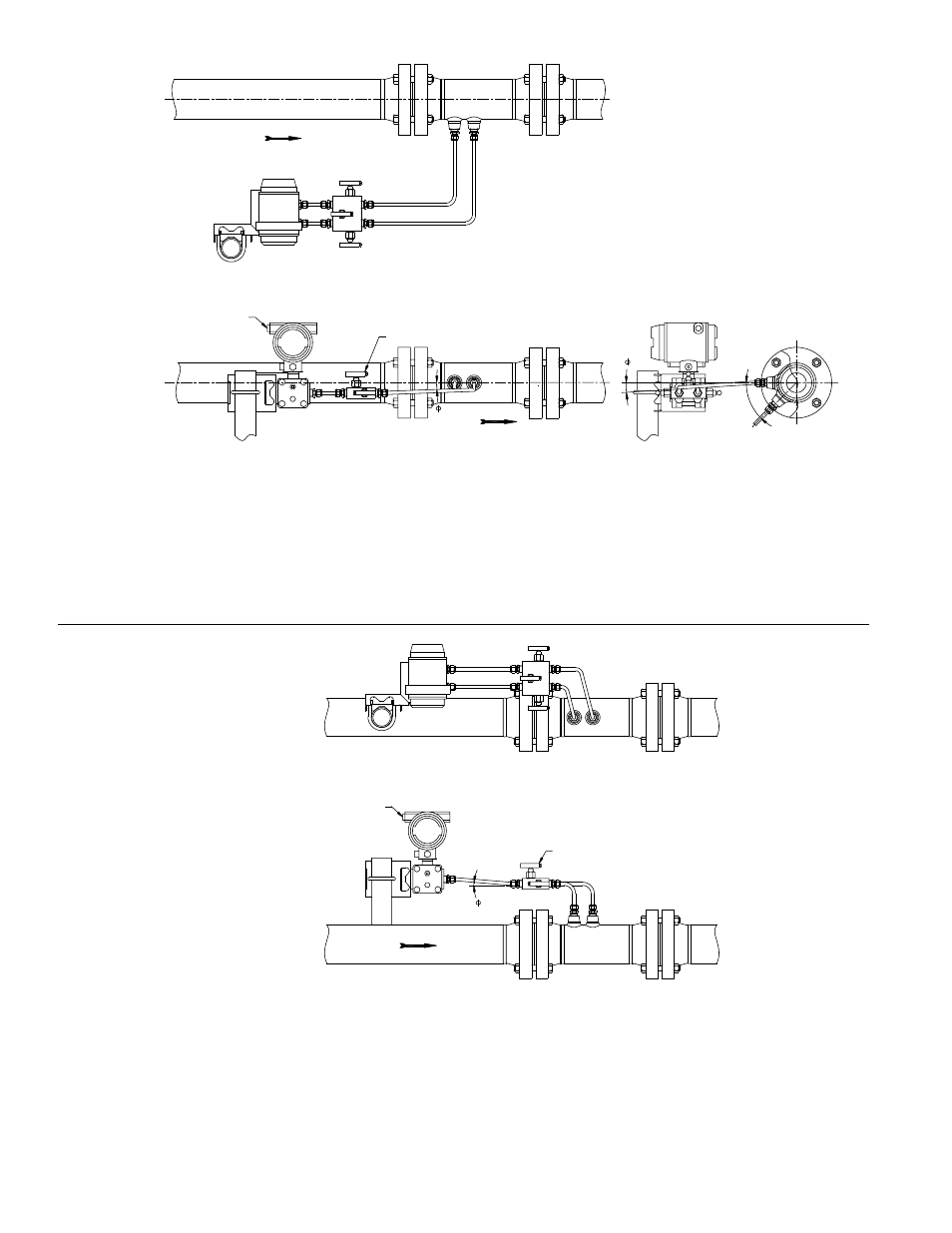

FIGURE 2
Typical Horizontal Installation for Liquid
FIGURE 3
Typical Horizontal Installation for Gas
HI LO
Top View
DP Transmitter or
Direct Read Gage
3-Valve Manifold
Side View
Front View
Up to -45°
HI LO
Notes:
1. ф = 1 in / ft (80 mm/m) for water;
2 to 4 in / ft (160 to 320 mm/m) for more viscous fluids
2. Minimize all lead line lengths
Flow
Flow
Top View
3-Valve Manifold
DP Transmitter or
Direct Read Gage
Side View
HI LO
HI LO
Notes:
1. ф = 1 in / ft (80 mm/m)
2. Minimize all lead line lengths
Flow
