LOCATION INSTRUCTIONS
Straight pipe requirements: Accuracy is affected by the piping configurations due to the disturbances of the flow profile . A
fully developed symmetrical flow profile is achieved with the minimum upstream and downstream recommended lengths .
DISTANCES ARE EXPRESSED IN
NUMBER OF NOMINAL PIPE DIAMETERS
THROTTLED VALVE OR REGULATOR
TWO ELBOWS IN DIFFERENT PLANES
CHANGE IN PIPE SIZE
TWO ELBOWS IN THE SAME PLANE
A SINGLE ELBOW

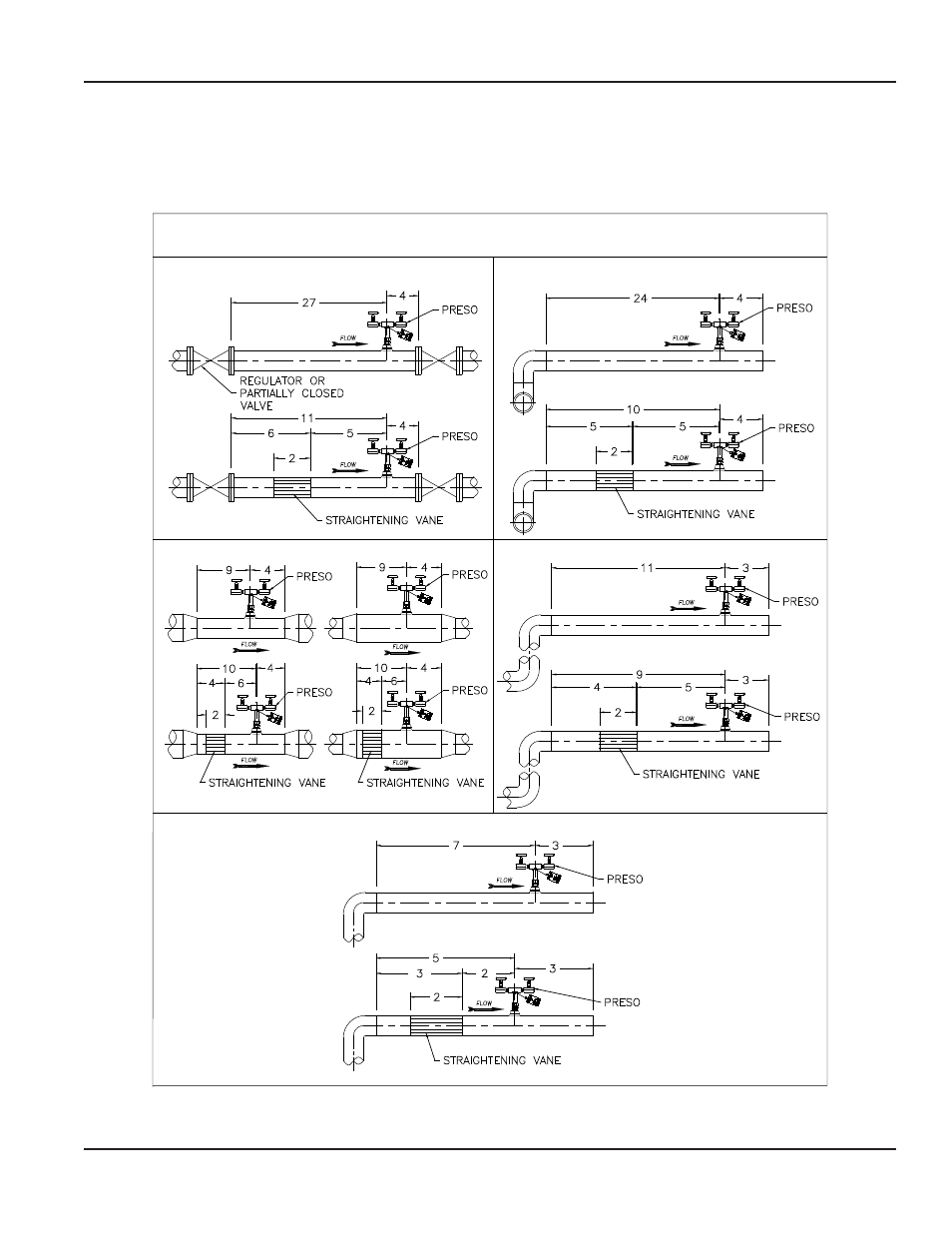

Figure 8: Location instructions
User Manual
Page 7
April 2014
