INSTALLATION INSTRUCTIONS, DOUBLE SUPPORT

1 . Follow steps 1 through 7 in

"Installation Instructions, Single Support" on page 5

. At 180° from and on the same plane

as the previously drilled hole, grind the surface of the pipe to provide a clean area for welding . Drill a hole and deburr,

especially on the inside of the pipe . The hole used for the double support should be sized according to

Table 3

MODEL / SENSOR

WELD CONNECTOR

DRILL BIT

AR0 (1/2")

1/8"

3/8"

AR (7/8")

1/2"

AR1 (1-1/4")

7/8"

Table 3: Double support drill bit size

2 . Weld the double support thread-o-let making sure that it is centered with the drilled hole (1/16" weld gap recommended) .
3 . Install the AR Ellipse sensor through the two holes . Make sure that the double support pin passes through the guide ring .

See

Figure 7

Ellipse Sensor

Double Support Pin

Guide Ring

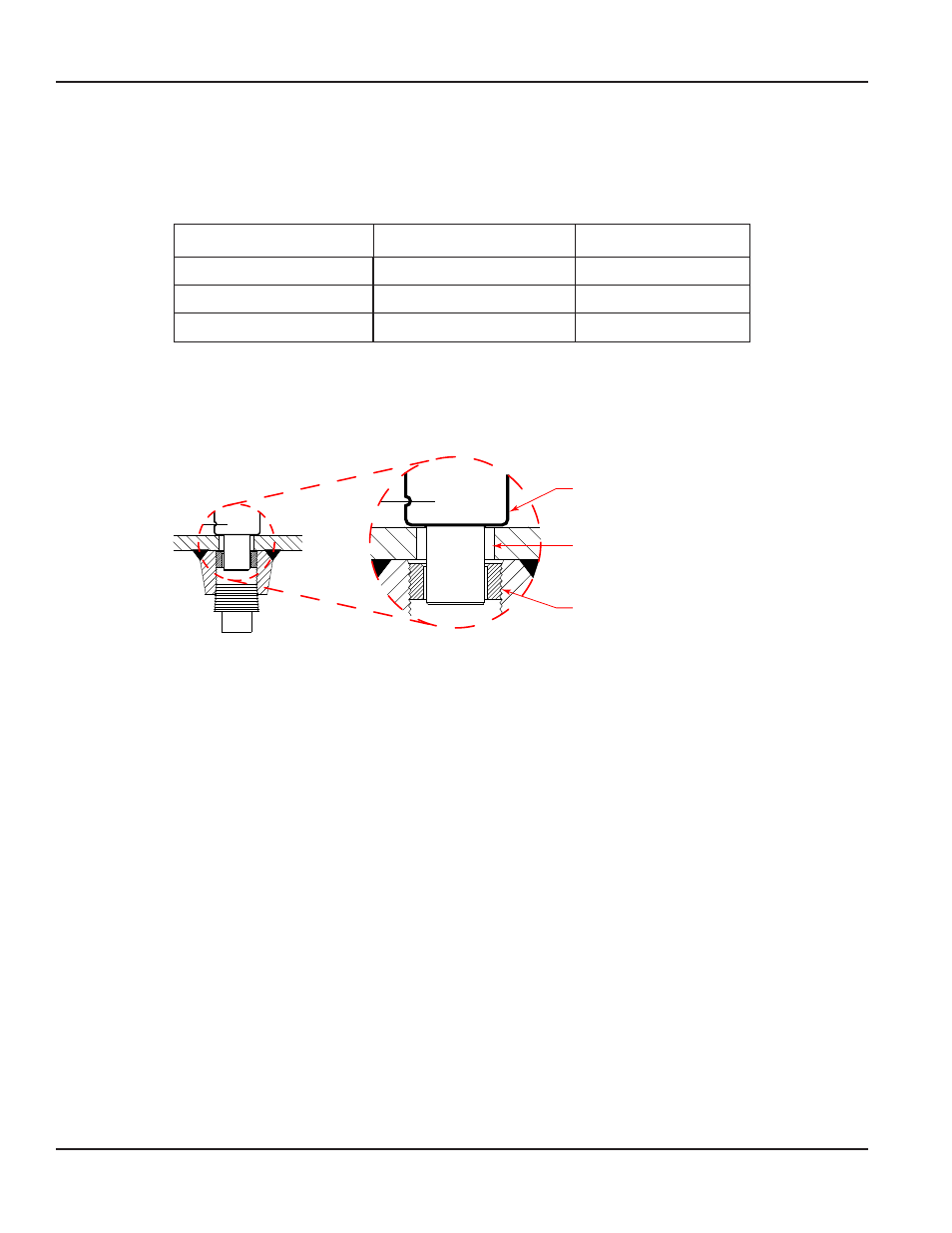

Figure 7: Double support pin

4 . Align the arrow located on the sensor head in the direction of flow as in step 9,

"Installation Instructions, Single Support" on

page 5

5 . Ensure that the AR Ellipse is in the correct orientation and spans the inside of the pipe . Tighten the compression nut

manually, then tighten it 1-1/4 turns more using a wrench .

6 . Install the plug into the end of the double support thread-o-let . Tighten the plug to prevent leakage .
