6-11
Series 3050 Btu Monitor
DISPLAY AND KEY PAD
The Series 3050 Btu Monitor has a two line by 16-character display with two modes of operation and 5 keys on the front panel
for programming. Two of the keys( Menu and Enter) serve a single function while the three remaining keys () serve dual
purposes.
When the Series 3050 is first powered up, it runs through internal self checks while displaying “Badger Meter DIC
Initializing." At the end of this cycle its normal mode display will appear.
In the normal mode, if still using the factory defaults, Flow Rate will be displayed on the top line, and Flow Total displayed on
the bottom. Both lines can be custom-defined in the field as desired. In the normal mode the Enter key has no function.

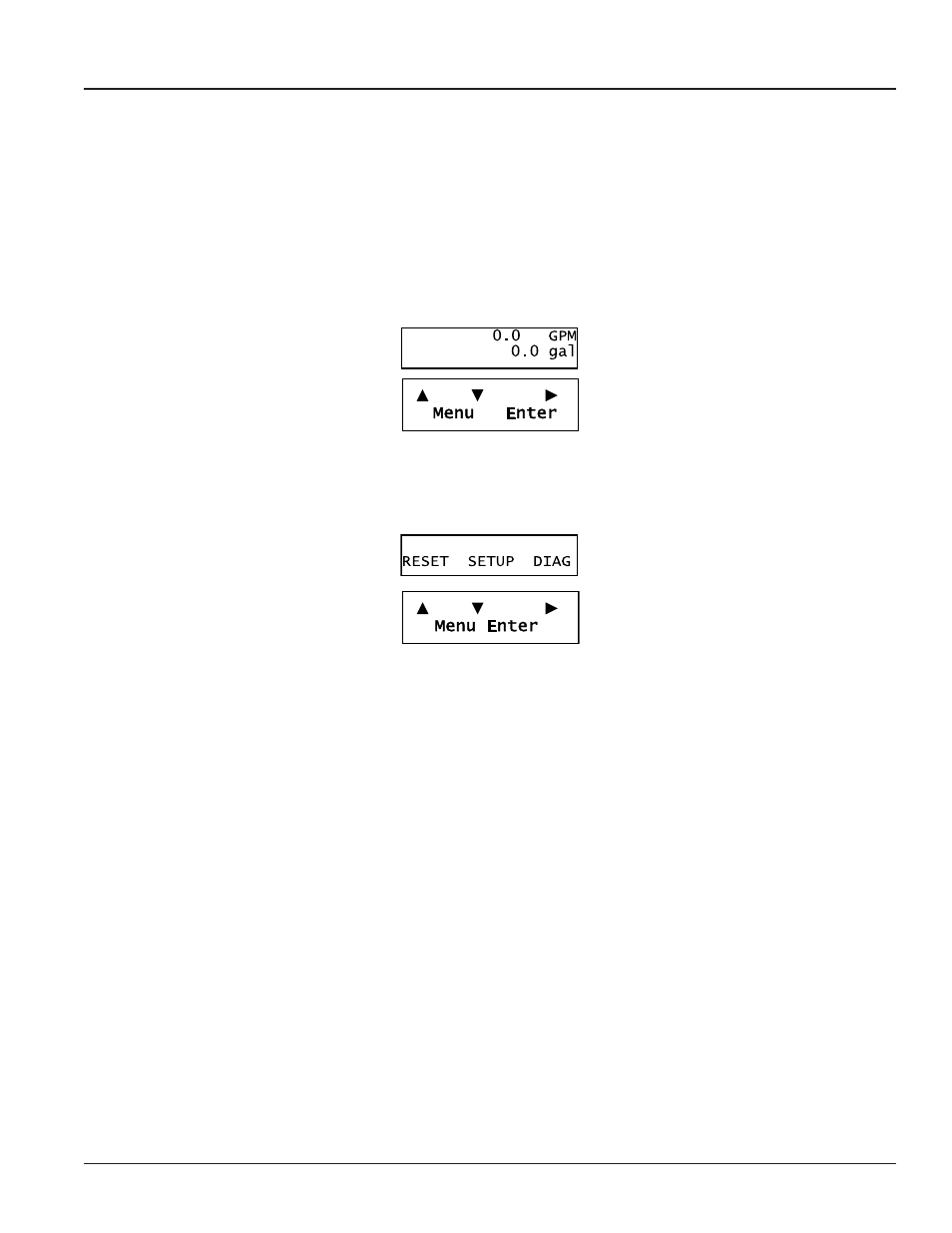

Figure 16: Normal Mode Display
The other mode is the program mode, used to configure the unit. Enter and exit this mode by pressing the Menu key. See the
programming flow chart.
Figure 17: Program Mode Display
